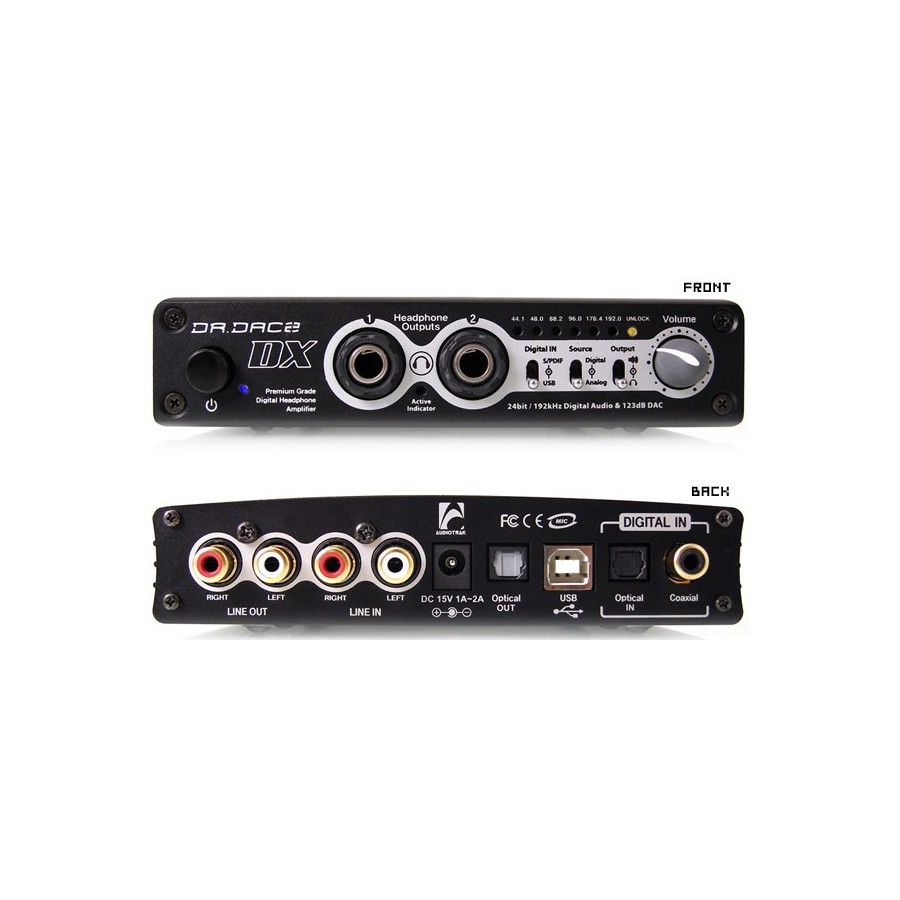

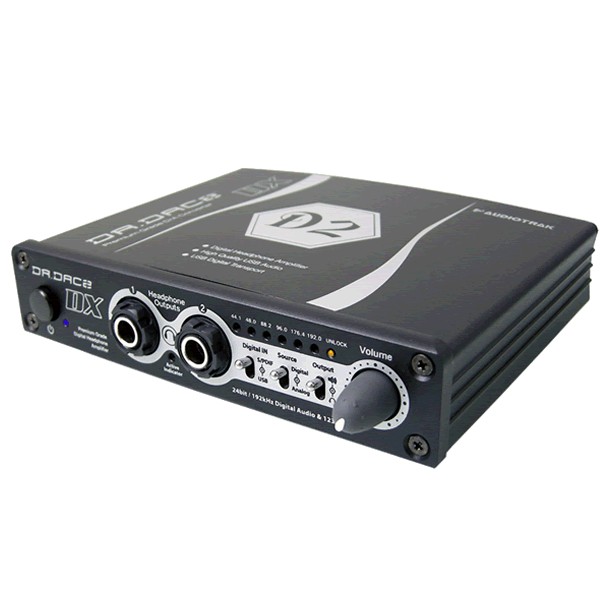

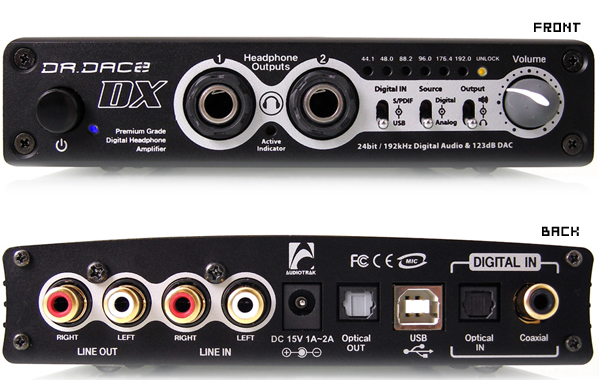

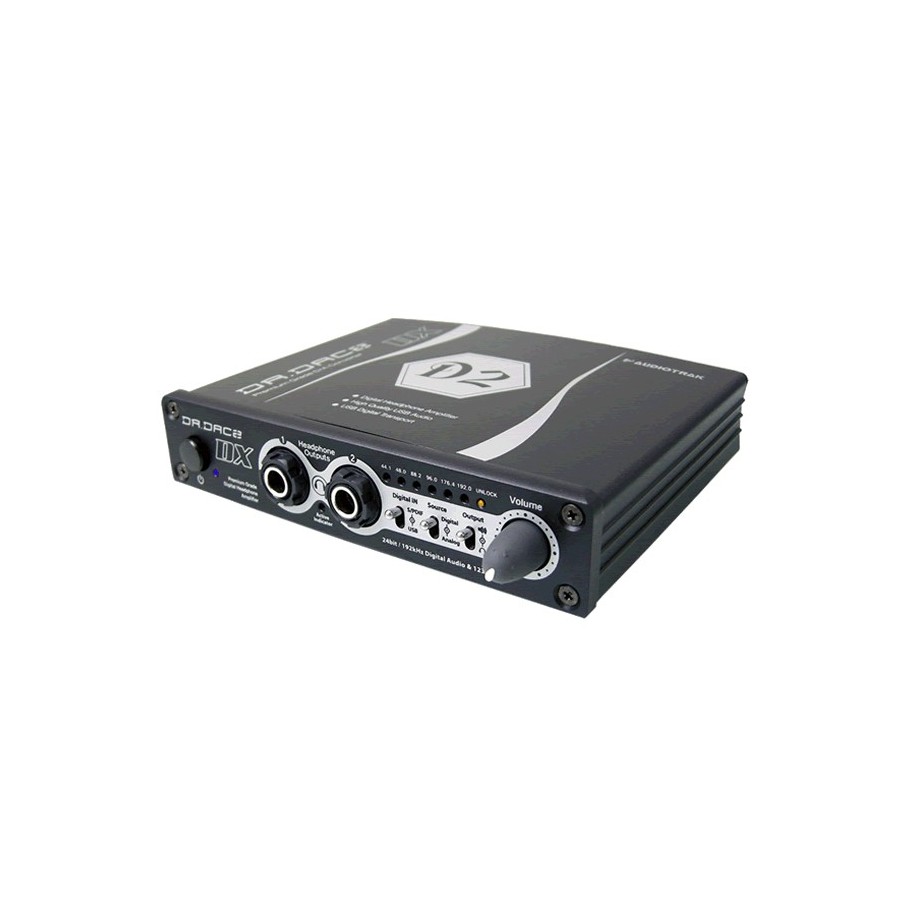

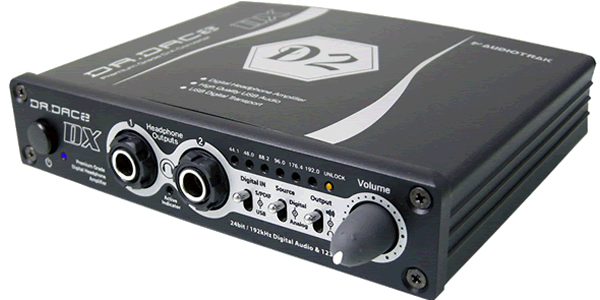

AUDIOTRAK DR.DAC2 DX TE DAC/PREAMP/USB 24/192khz
Viewed products
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
Fer de lance de la marque ce DAC avancé dispose de nombreuses fonctionnalités qui en font un must have pour toutes personnes désireuse de disposer d'une solution "tout en un".
Son amplificateur casque de haute qualité, ses nombreuses entrées sorties et les composants à partir desquels il a été conçu le place parmi les références incontournables de sa catégorie.
Comme le reste de la gamme Audiotrack, les Aop sont montés sur support pour permettre un changement facile.
Caractéristiques:
| Alimentation | DC 15V / 1A~2A | |
| Dimensions / Poids | 140(mm) x 111(mm) x 30(mm) / 440g | |
| Sortie casque | Type | 1/4” Stereo phone jack Port 1 : +8dBV (6Vpp) / Port 2 : +20dBV (24Vpp) 500mW 0.0008% A-weighted (@ 100mW, 1kHz) 0Ω (Load : 16 ~ 600) |
| Entrée / sortie ligne | Type | Unbalanced RCA -10dBV Nominal (@-16dBFS) / +8dBV max 15kΩ(Input) / 200Ω(Output) |
| USB audio | Type | Max 24bit / 96kHz, USB 1.1 / 2.0 Compatible |
| OS Support | Windows 8, Windows 7, Windows Vista, Windows XP, Mac OS-X Note: The Pass-through Digital output is avaliable to Windows 8, Vista(SP1) and Mac OS-X only. | |

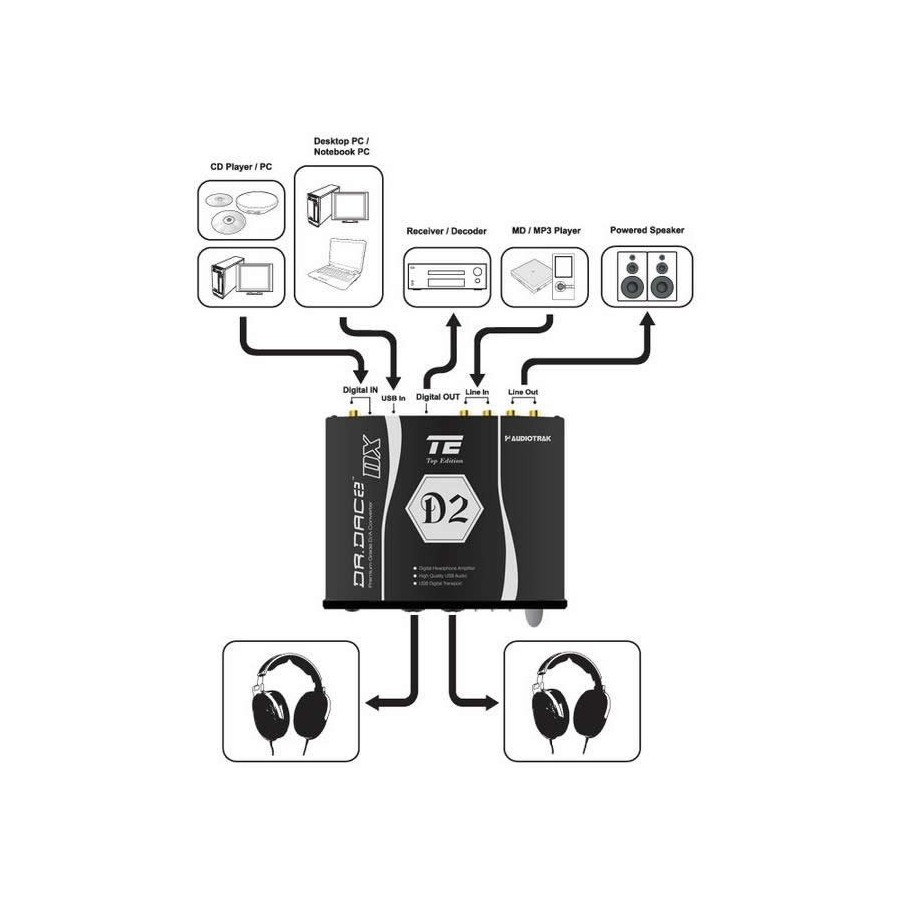

| Entrée numérique | Type Format Sample rate Detection | S/PDIF Optical on TOS-LINK 44.1~192kHz S/PDIF Coaxial on RCA 44.1~192kHz IEC-60958, S/PDIF Compatible 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz (@ ±3%) |
| Sortie numérique | Type Format Sample rate Detection | S/PDIF Optical on TOS-LINK 44.1~96kHz IEC-60958, S/PDIF Compatible 44.1, 48.0, 96.0 kHz |
| DAC | Type Dynamic Range THD+N Frequency Response Gain Mismatch | 24bit, 192kHz, 8times Digital filter 123dB (@ -60dBFS with A-Weighted) 0.0005% (@ fs=44.1kHz, 0dB) 0 ~ 21.7kHz, ±0.0002dB (@ fs=48kHz) 0 ~ 43.5kHz, ±0.0002dB (@ fs=96kHz) 0 ~ 87.0kHz, ±0.0002dB (@ fs=192kHz) ±0.5%(channel to channel) |

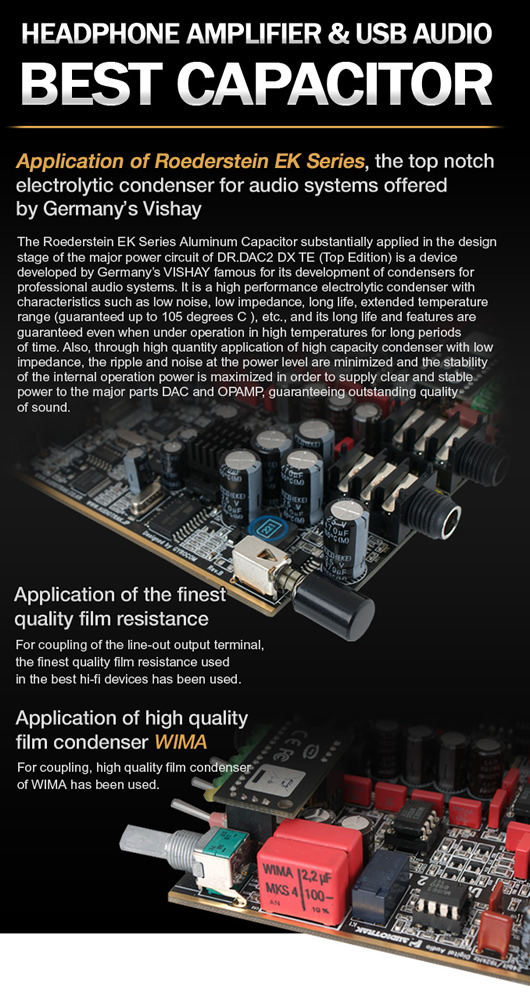

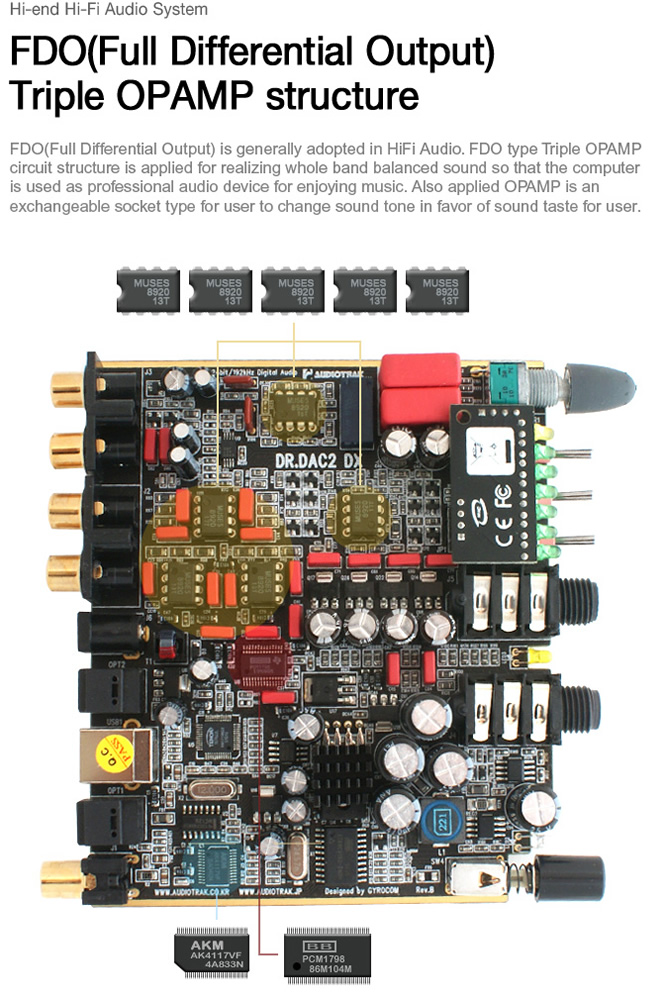

| AOP | Operating Voltage | 24.0V(±12V), FDO : MUSES8920 x 3 (DIP, Socket Type) Line Out : MUSES8920 (DIP, Socket Type) Headphone : MUSES8920 (DIP, Socket Type) Line In : NJM4580 (SMD) |
| Consommation | About 4W~6W (5W / typ) | |

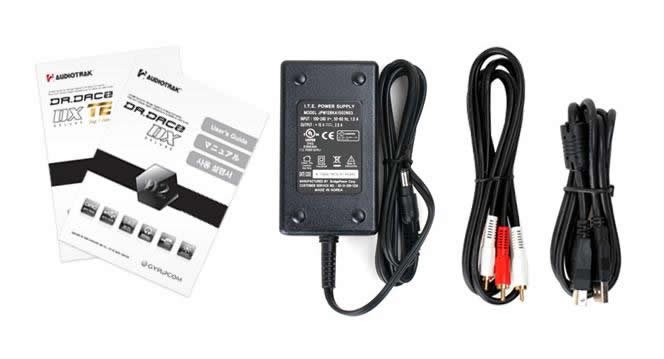

Contenu du packaging:
