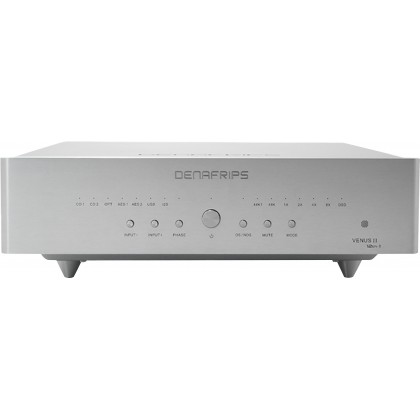

DENAFRIPS VENUS II 12TH-1 Balanced R2R DAC Silver

The Denafrips Venus II 12Th-1 balanced R-R2R DAC builds on the excellent, award-winning Venus II in an improved version, with enhanced performance and even more musical, richer sound reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 379 loyalty points


Reference : 19115
New product

3 790,00 €tax incl.

3 158,33 € tax excl.
Including 0,05 € for green tax

- +


Last items in stock !
Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Denafrips Venus II 12Th-1 Balanced R2R DAC 24bit 1536kHz DSD1024 Silver

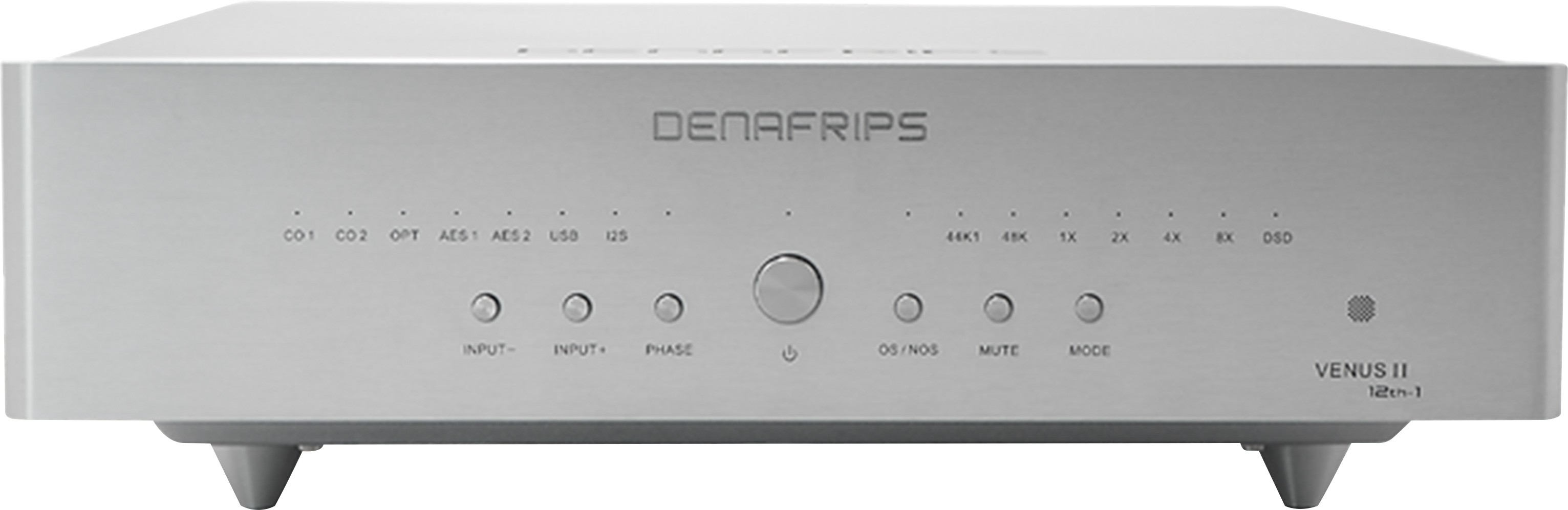

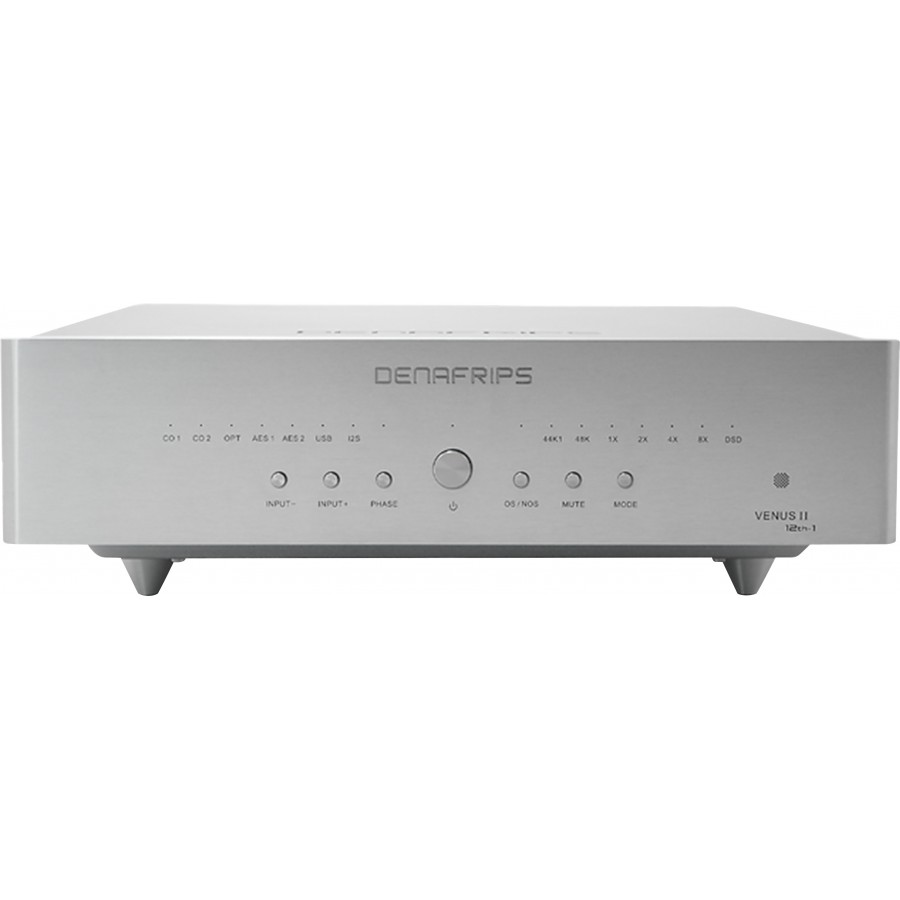

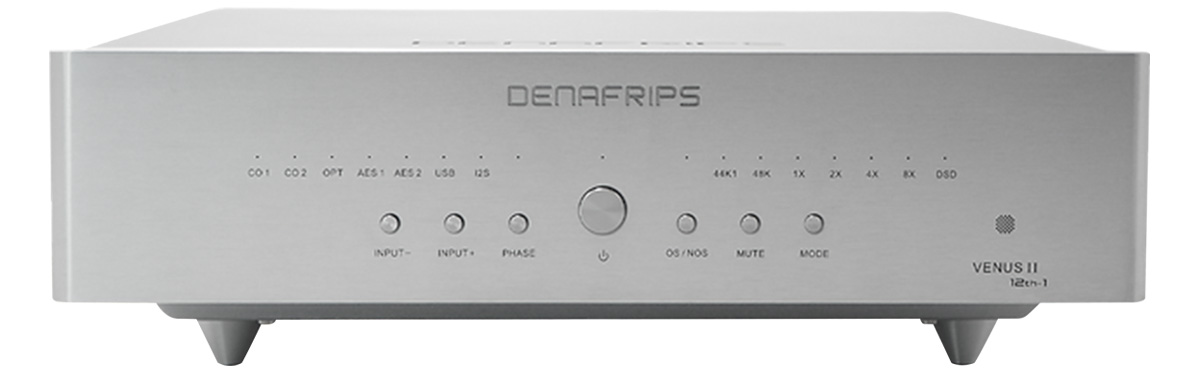

Denafrips Venus II 12Th-1: Front view

The Denafrips Venus II 12Th-1 balanced R-R2R DAC builds on the excellent, award-winning Venus II in an improved version, with enhanced performance and even more musical, richer sound reproduction.

Each channel of this DAC is equipped with an independent high-speed FPGA to facilitate decoding of the digital signal by means of 4 sets of R-2R networks with a tolerance of just 0.005%. The choice of such a design results in very low linearity error, high decoding speed and low digital noise, not only to ensure that the audio signal has extremely low distortion, but also to ensure very low background noise for the most accurate and transparent reproduction possible.

All digital inputs pass through the FIFO buffer and are re-clocked by the integrated TCXO clock. Excellent word-clock jitter rejection makes Denafrips Venus II 12Th-1 less dependent on the quality of the source equipment's clock.

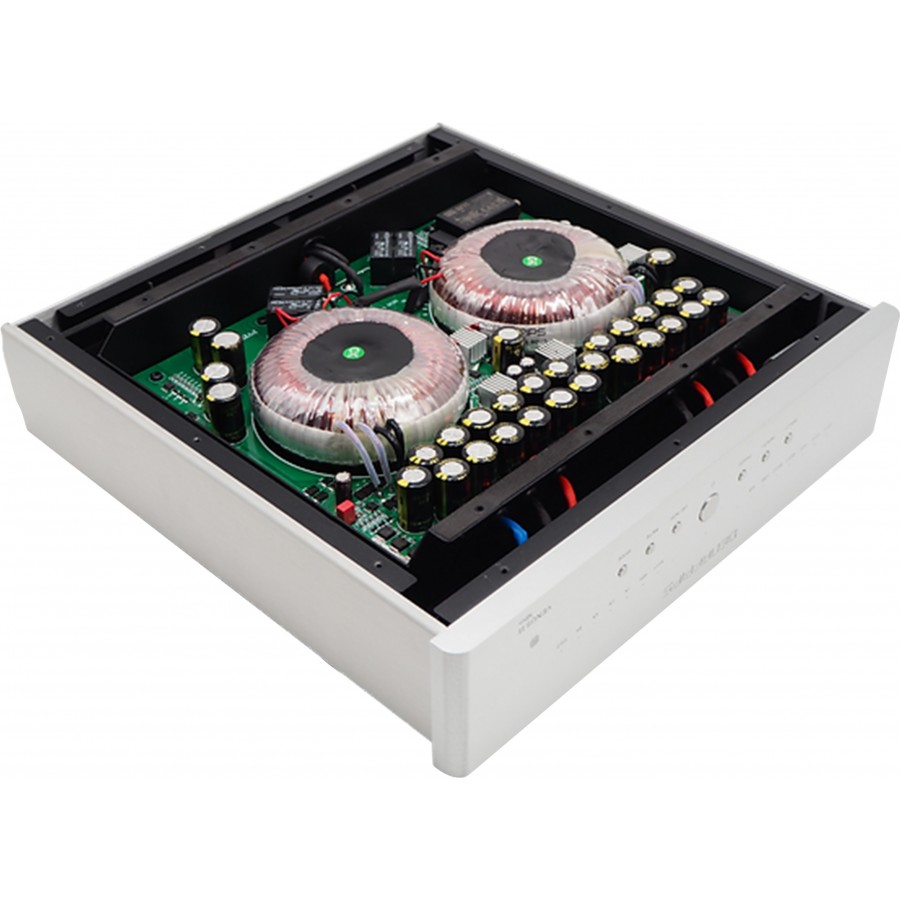

The Venus II 12Th-1 power supply uses a dedicated linear power supply, isolated in a 1.5mm-thick metal alloy housing to drastically limit interference with audio circuits. In addition, two 80VA O-Core transformers supply the DAC's digital and analog sections independently, and a number of low ESR capacitors provide a good energy reserve while filtering the electrical signal.

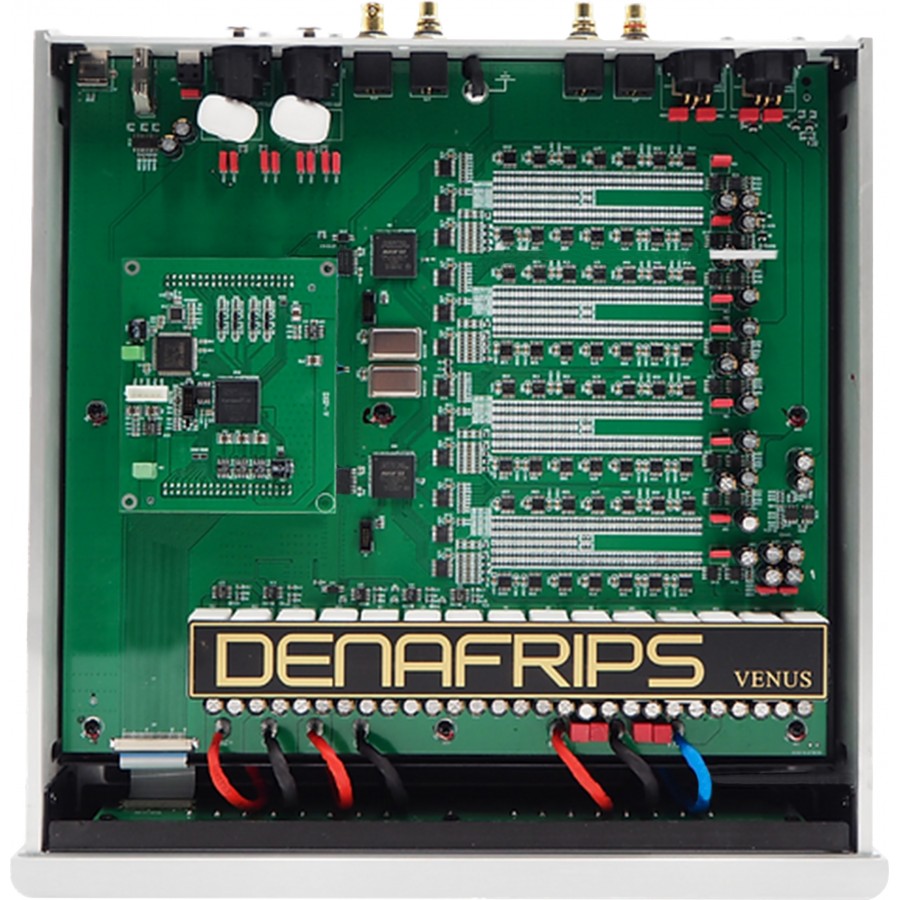

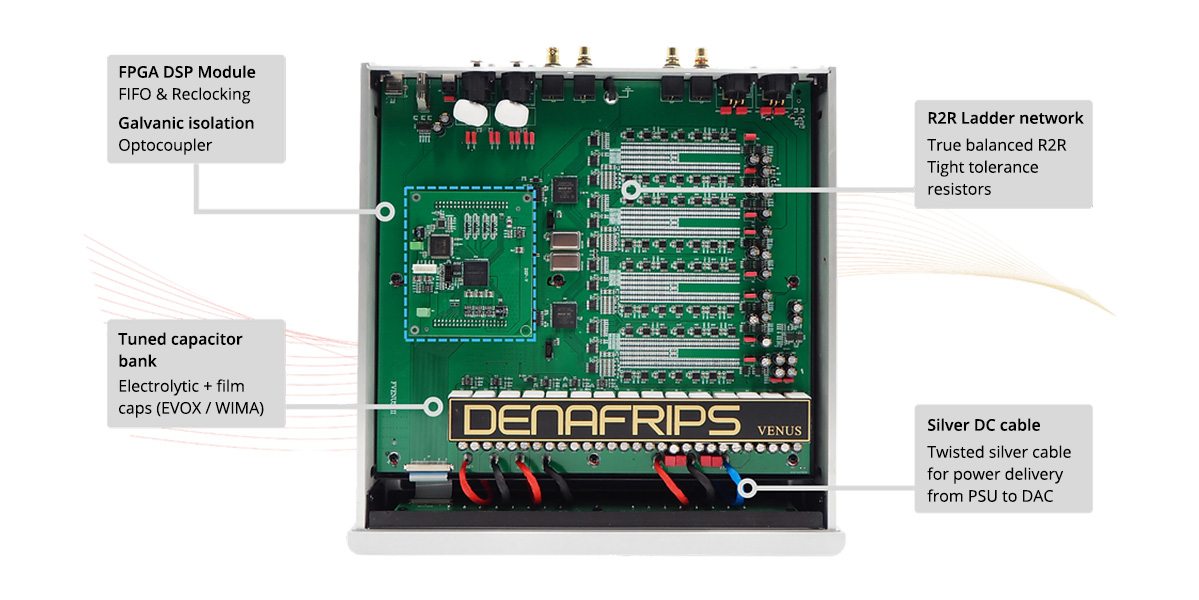

Denafrips Venus II 12Th-1: Internal view

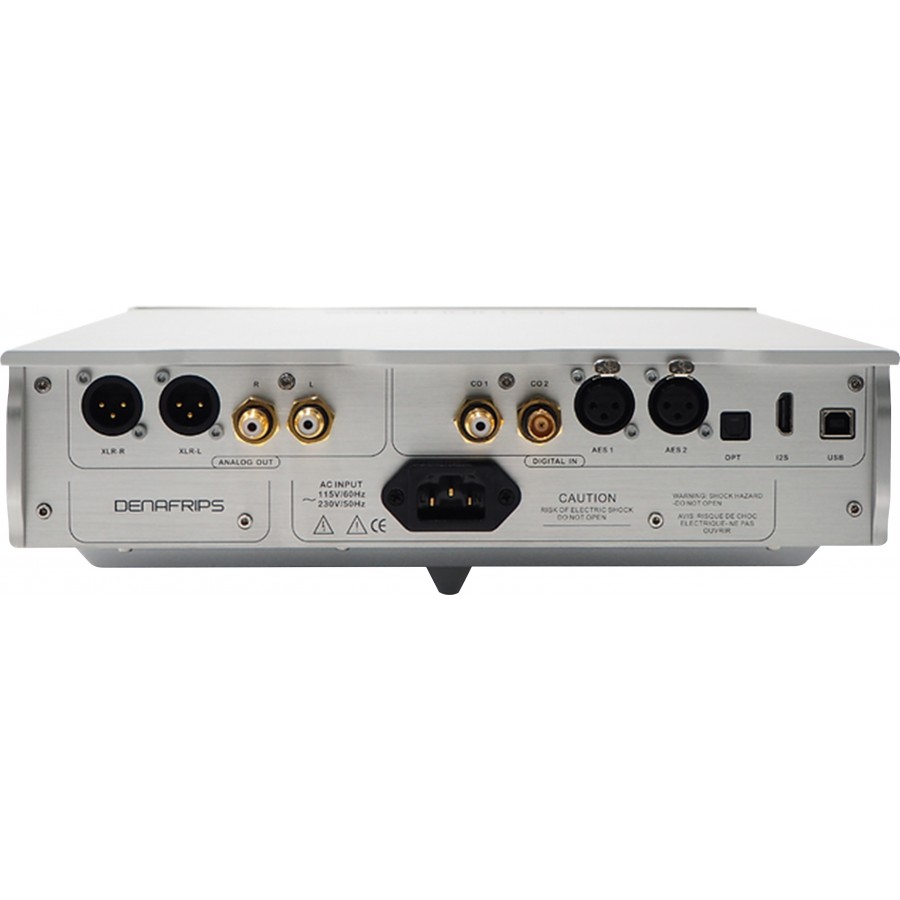

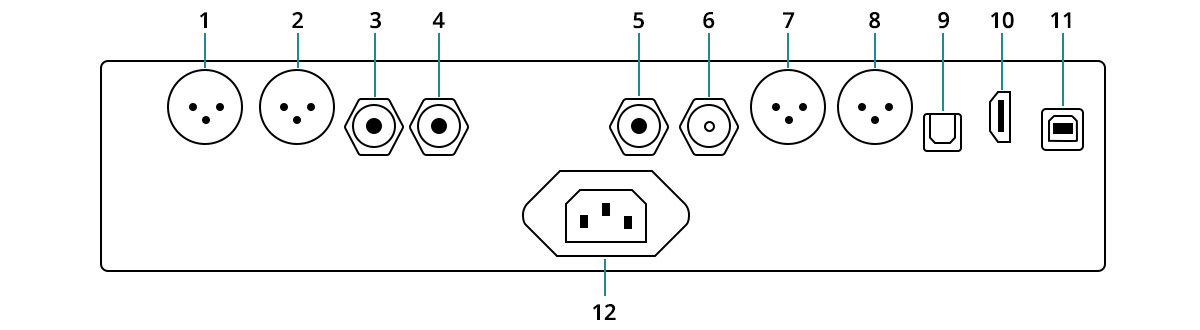

Denafrips Venus II 12Th-1: connection diagram
1XLR output right channel
2XLR output left channel
3RCA output right channel
4RCA output left channel
5RCA coaxial input
6BNC coaxial input
7AES/EBU input
8AES/EBU input
9Optical Toslink input
10I2D HDMI input
11USB-B input
12AC power supply



Technical characteristics

Specifications
Product typeR2R balanced DAC
Inputs1x Coaxial RCA
1x Coaxial BNC
2x AES/EBU
1x Optical Toslink
1x I2S via HDMI LVDS
1x USB-B
Outputs1x Balanced stereo XLR
1x Single-ended stereo RCA
Supported sampling ratesUSB / I2S : PCM up to 1536kHz, DSD up to DSD1024
Coax / AES / Optical : PCM up to 24bit 192kHz, DSD DoP64
Operating modesNon-oversampling (NOS)
Oversampling (OS)
Frequency response20Hz - 70kHz -3dB
THD+N0.002%
SNR120dB
Dynamic range> 121dB
Crosstalk-110dB
General
Supply voltage100-240VAC, 50/60Hz
Consumption≤ 20W
Dimensions320 x 330x 80mm
Weight8.5kg
ColorSilver

Data sheet
InputSPDIF
InputI2S via HDMI
InputUSB
InputOptical
OutputXLR
OutputRCA
DAC / ADC ChipR2R LADDER DAC
Max sampling rateDSD1024
Max sampling rate1536kHz
ColorSilver
NetworkingNo
Remote ControlN/A
