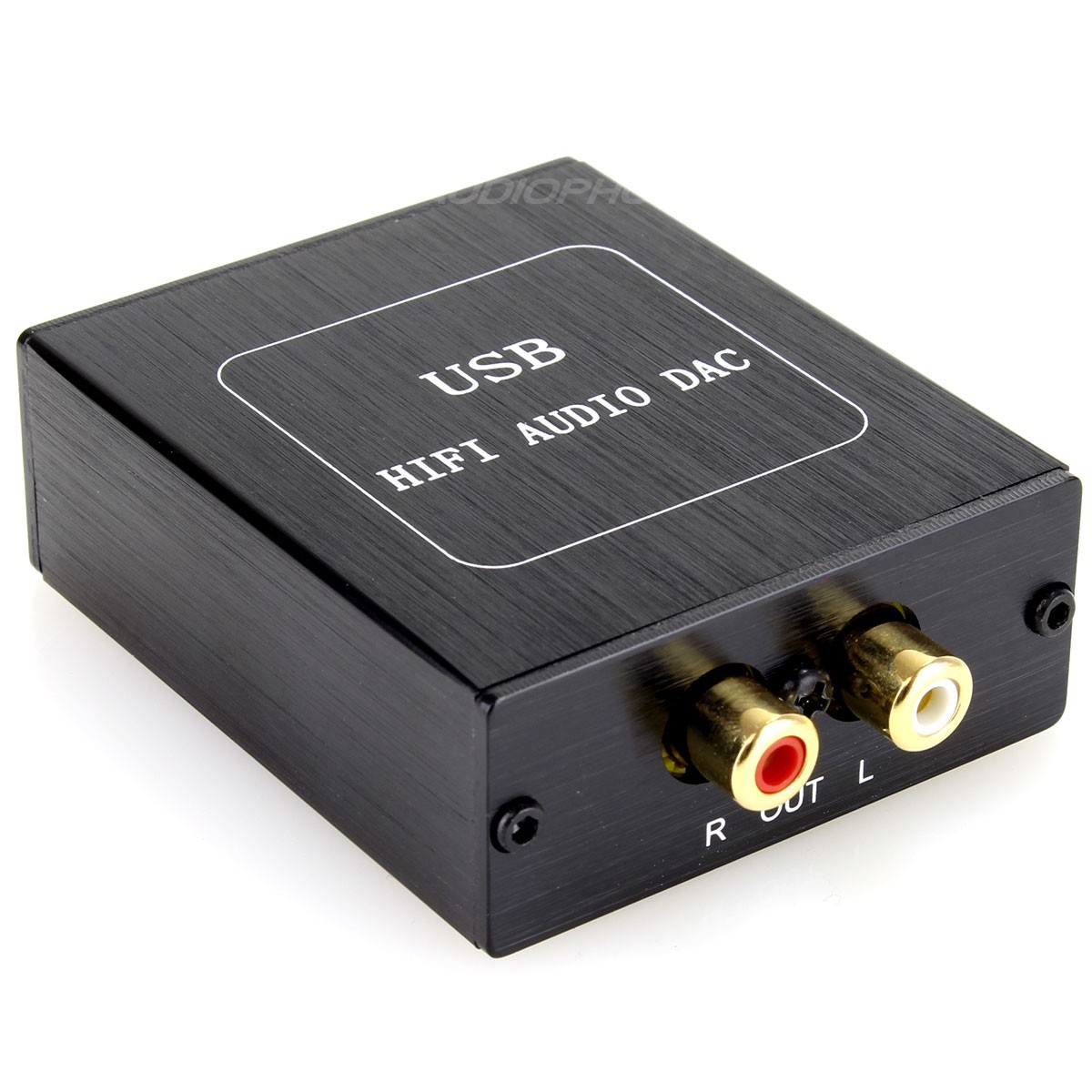

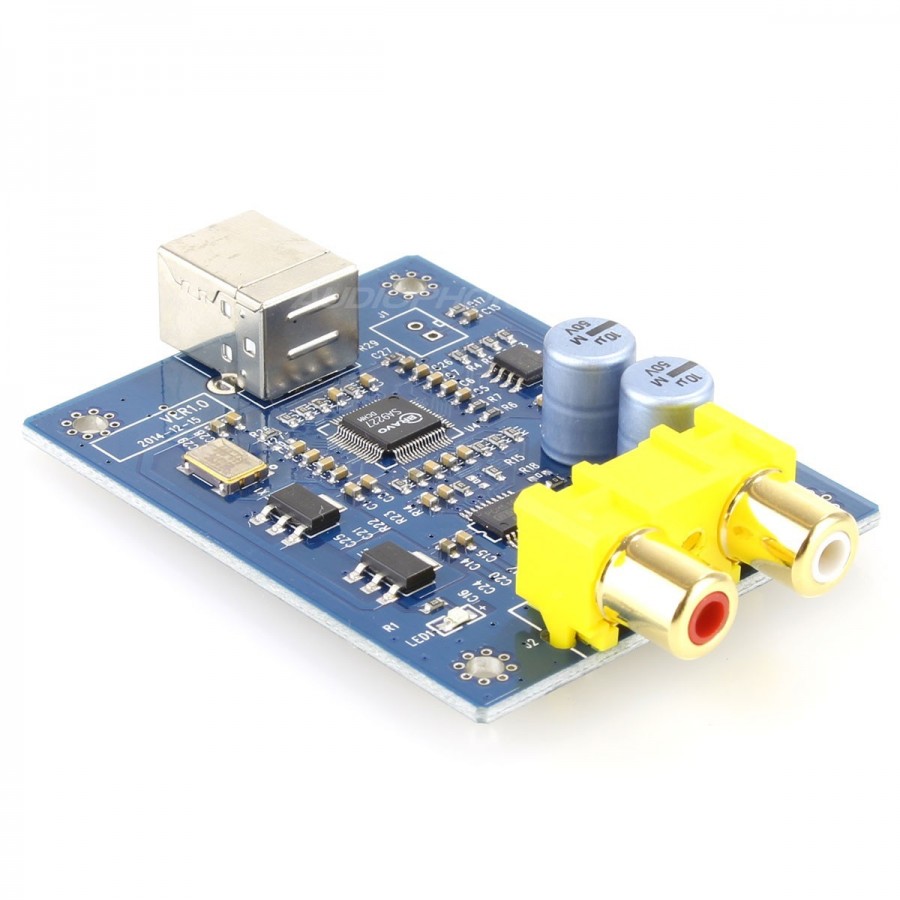

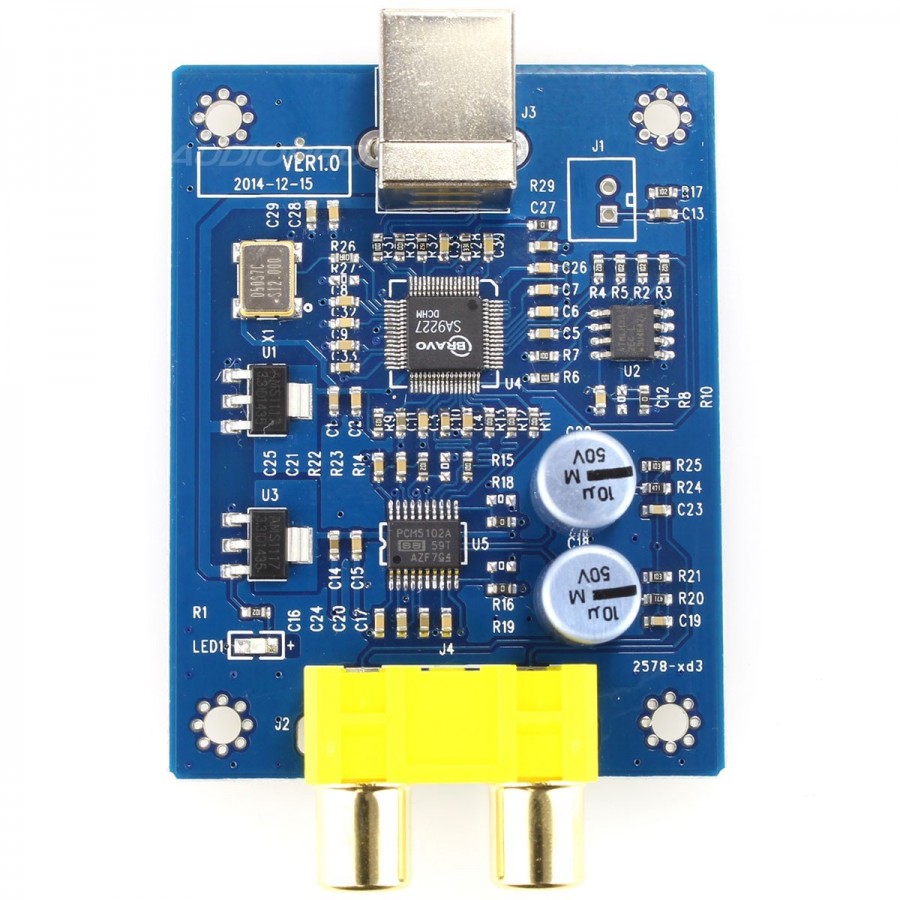

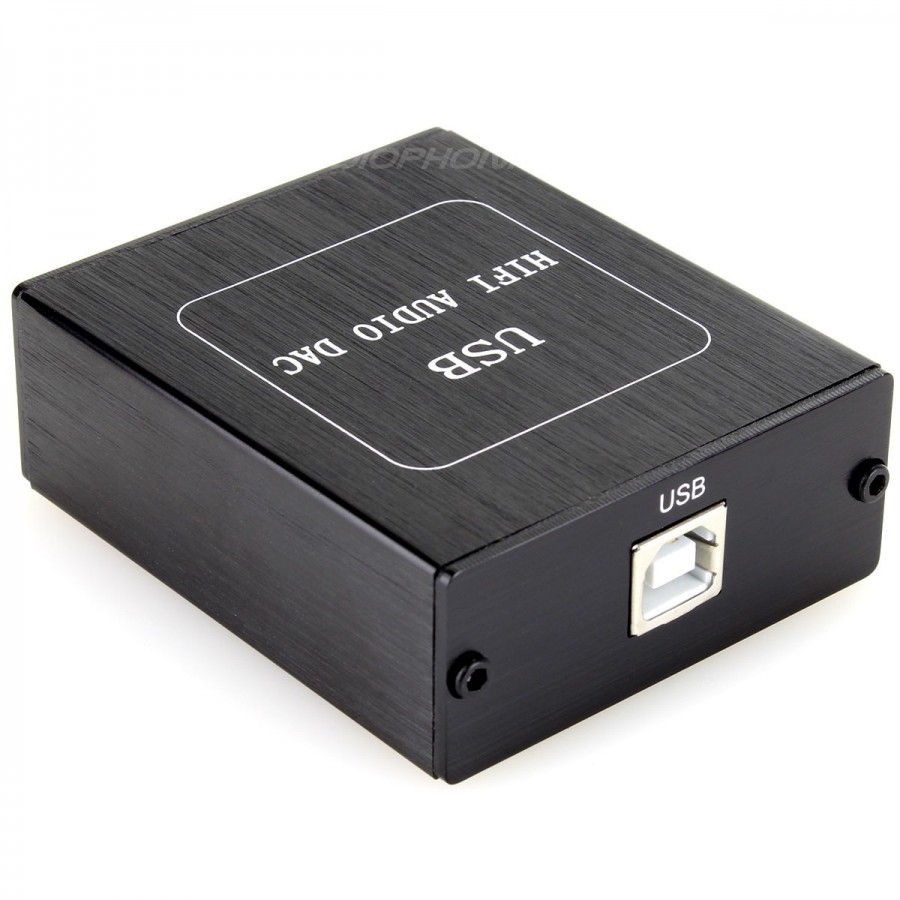

SA9227 + PCM5102A 32bits/384Khz Asynchronous USB DAC

This small 32-bit 384Khz USB DAC with a sober design is equipped with a modern audio interface USB Audio Saviaudio SA 9227 known for its low jitter. The decoding chip is the now famous Ti PCM 5102A recognized for its simplicity of implementation with a warm and dynamic sound.

You will enjoy the attractiveness of modern dematerialized sources without sacrificing your current Hifi installation by plugging it into your stereo amplifier or dedicated headphone amplifier. Its asynchronous operation mode with its own internal clock provides a low jitter digital signal for high definition.

A smart device, easily transportable, perfect companion for a quality sound on its portable laptop PC to its audio amplifier or a headphone amplifier thanks to its stereo output in RCA-plated gold-plated RCA.

This easy-to-use USB DAC does not require a USB driver to install to run.

Note: This product is shipped naked (no USB cable or user manual)

Characteristics :

• Converter PCM5102 32bit 384kHz
• Interface USB: SA9227 (SAVIAUDIO): 16/24/32 Bit and 32Khz 44.1KHz, 48KHz, 88.2Khz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz
• Input: USB-B 2.0
• Analog Output RCA Stereo Plated Gold 24k
• Signal Noise Ratio:> 95dB
• Dynamic range:> 95dB
• THD + N:> 0.005% (RL = 10 kΩ)
• Supply Voltage: 5V (USB Power Supply)
• No external power required
• Dimensions 68 x 57 x 24mm (excluding RCA plugs)
• Weight: 0.080kg
• Connectors not included
• Native / Plug & Play Mac OS, Linux, Windows XP / 7/8
