SOMMERCABLE SC-TRANSIT HDMI 2160p 4K / Ethernet DIY Ø 10mm

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 5074
New product

9,90 €tax incl.

8,25 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

4 x 2 x 0.22 mm² + 7 x 0.22 mm²

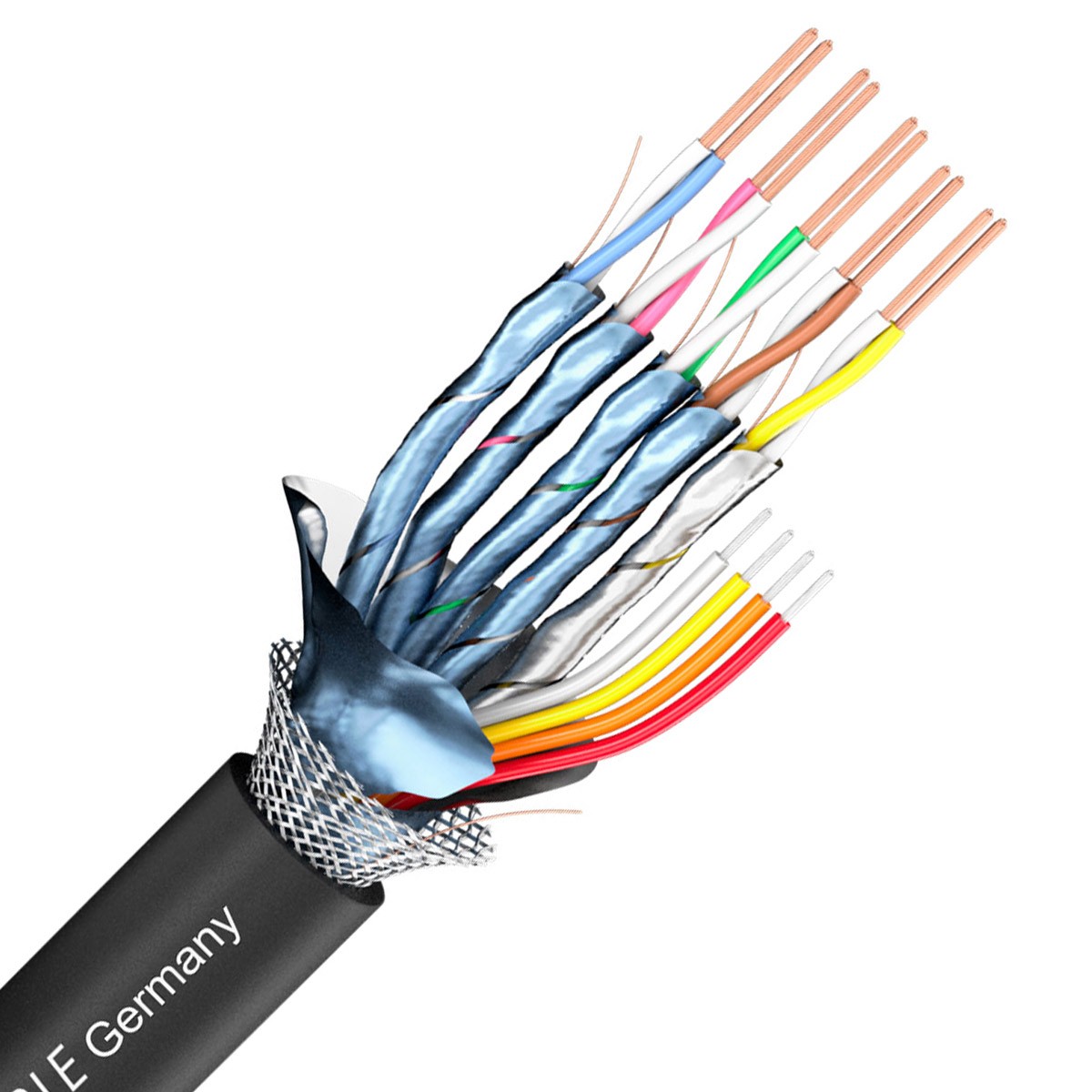

SOMMERCABLE - SC-TRANSIT HDMI

https://www.audiophonics.fr/images2/5074/SOMMERCABLESC-TRANSITHDMI.jpg

One for all...

The TRANSIT-HDMI cable is an absolutely superior quality HDMI cable for digital transmission of audio and video data and specially designed for multimedia and consumer electronics professionals.
Associto our HICON HDMI HI-HDMI-M connector (and made by a specialist), it transmits without difficulty a1080p picture in HDMI 1.4 mode, which corresponds to the current HDTV standard.
Depending on the quality of the interfaces and the hardware used, and thanks to a real cross section of 0.22 mm² (AWG24), it can control a transmission distance of almost 25 meters. Triple and efficient shielding protects the cable against external interference.
The cocolor coded in order to facilitate individual editing.

ADVANTAGES:

  • Image Definition of 2160p (UHD, 4K) with Ethernet
  • Large real section, allows a long retransmission distance
  • Solid triple shielding against external disturbances
  • Standard 1.4, compatible with previous standards 1.2 and 1.3

USE:

  • Digital audio and video data transmission from standard 1.4 HDMI
  • Professional and private multimedia
  • Laying in cable ducts


Specifications:

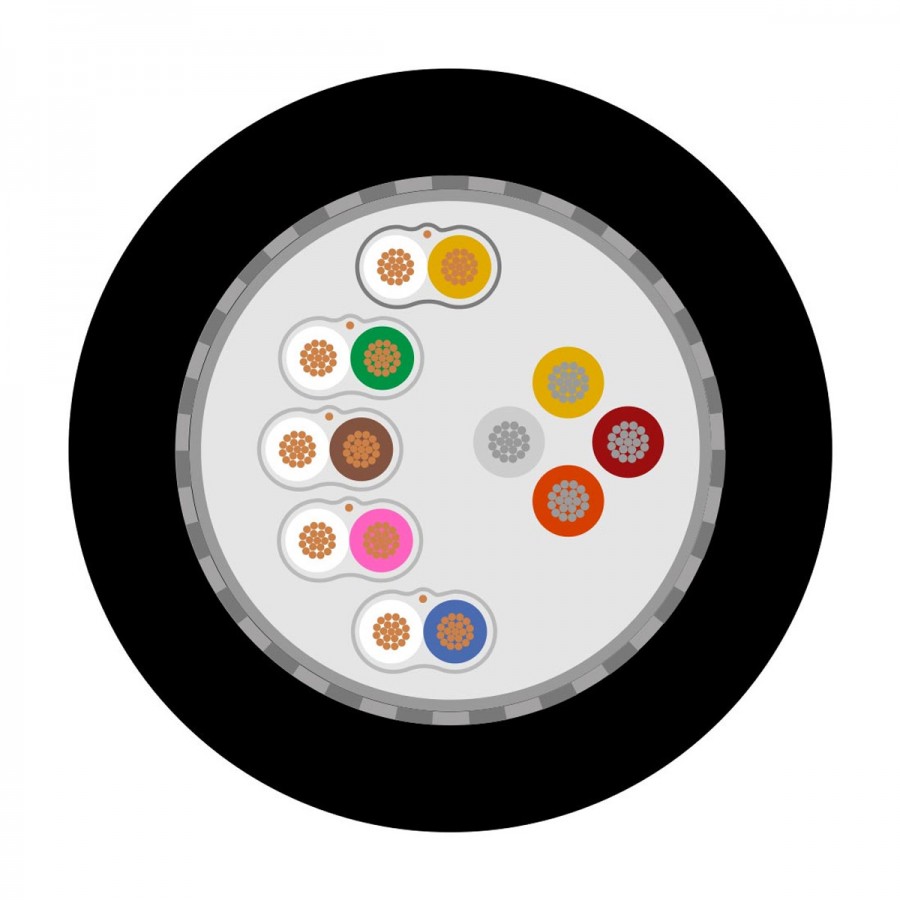

Constitution[(4 (2LI2YS0,22mm²)) + (LIY7x0,22mm²)] (ST) CY
Envelope, diameter PVC 10mm
AWG24/7
Conducteur inside 4 x 2 x 0.22 mm² + 7 x 0.22 mm 2
Brass Cu per core 7 x 0.20 mm
Insulation of the conductorFoam / Skin-PE / PP 1.8 mm
Protectioncrossed braid + AL / PT sheet + drainage thread
Optical cover95%
Operating temperature min.-20 ° C
Operating temperature max. 80 ° C
Weight per m130 g
Packaging unit, packing unit 1 m
Suitable connector HI-HDMI-M
Colorblack

Electrical Specifications:
44 pF
Odometer Resistance, Conductor<94 Ohm
Resistance, insulation> 5 GOhm
Characteristic Impedance105 Ohm
Reduction factor0.73
Reduction per 100 m (20 ° C)1 MHz: 3.3dB
Reduction per 100 m (20 ° C)10 MHz: 8.1 dB
Reduction per 100 m (20 ° C)50 MHz: 16.7 dB
Reduction per 100 m (20 ° C)100 MHz: 20.9 dB
Reduction per 100 m (20 ° C)200 MHz: 31.8 dB
Bandwidthfor 340 MHz,> 10.2 Gbps

[Img-11732-left-thickbox_default]
[Img-11733-left-large_default]


Data sheet
Length (m)Sold by length
Section (mm²)0.205
Conductors material (Cable)Copper
