Digital Interface USB Amanero / Bluetooth 5.0 to AES / SPDIF / I2S 32bit 192kHz DoP128

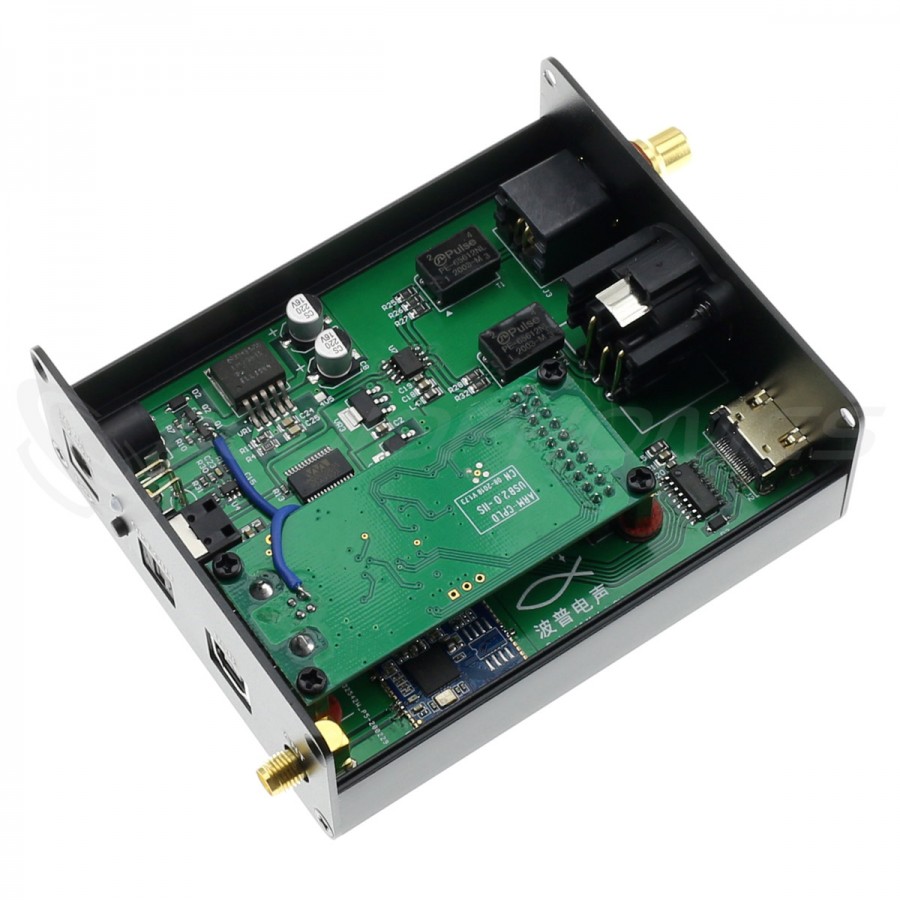

This small, high-performance digital interface takes a Bluetooth 5.0 or USB signal as input and then outputs it in I2S (via HDMI), AES, Toslink Optics or Coaxial. The Bluetooth chip used for reception is a Qualcomm CSR8675 supporting the high-resolution protocols aptX-HD and aptX-LL for high-quality playback. The USB input is entrusted to an Amanero Combo384 chip.

Average votes for this product
4.7 / 5

By buying this product you get 11 loyalty points


Reference : 14869
New product

119,00 €tax incl.

99,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Digital Interface

USB Amanero / Bluetooth 5.0 to AES / SPDIF / I2S 32bit 192kHz DoP128

Interface Numérique USB Amanero / Bluetooth 5.0 vers AES / SPDIF / I2S 24bit 192kHz

This small, high-performance digital interface takes a Bluetooth 5.0 or USB signal as input and then outputs it in I2S (via HDMI), AES, Toslink Optics or Coaxial. The Bluetooth chip used for reception is a Qualcomm CSR8675 supporting the high-resolution protocols aptX-HD and aptX-LL for high-quality playback. The USB input is entrusted to an Amanero Combo384 chip.

The source selection is done using a button on the front panel. The interface can be powered directly via USB or 5-9VDC via a DC jack connector.

The HDMi port of this interface is dedicated to audio. It cannot be used to transport a video stream.

Technical characteristics

Specifications
Product typeDigital interface
InputsBluetooth 5.0
1x USB-B
Outputs1x AES
1x I2S via HDMI
1x Optical Toslink
1x SPDIF Coaxial
Bluetooth ChipCSR8675
USB InterfaceAmanero Combo384
Supported Bluetooth codecsSBC
AAC
aptX-HD
aptX LL
Supported sampling ratesUSB-B : PCM up to 32bit 192kHz, DoP128 (via I2S HDMI)
Bluetooth : PCM 48kHz
Général
Power supply5VDC via USB-B or 5-9VDC via Jack DC
Housing materialAluminum
Dimensions103 x 88 x 38mm
ColorBlack
Weight235g
Package1x Digital interface
1x Bluetooth antenna
1x USB-A to Jack DC cable

Data sheet
InputBluetooth
OutputOptical Toslink
OutputCoaxial SPDIF
OutputI2S LVDS via HDMI
OutputAES/EBU
Max sampling rate192kHz
ColorBlack
Interface chipAmanero 384

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.7 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Working well
Using it for 1 week only, tried I2S and TOSLINK output on headphone DAC/Amp with Foobar and Tidal on Win11. Driver installation without problems, output to the interface showing on the list. Sound is very good, clean and spacious. On few occassions short noise when PC loads a big piece of software, most likely nothing to do with the interface itself. Overall - too short experience to be decisive, but so far so good. With driver installed the interface works out of the box, provides multiple output options, everything as described on Audiophonics site.
 (1)
 (0)
This review has been posted for Digital Interface USB Amanero / Bluetooth 5.0 to AES / SPDIF / I2S 32bit 192kHz DoP128
Note :
 5/5
Date :
Parfait
Transfigure un "ancien" DAC Audio GD NFB 12.1,dont l'entrée USB est trés moyenne.
Avec un bon câble numérique coaxiale (un Audiophonics commandé en même temps),c'est vraiment très bon : Quobuz+Audirvana,avec un PC (en attendant un streamer dédié)
 (1)
 (0)
This review has been posted for Digital Interface USB Amanero / Bluetooth 5.0 to AES / SPDIF / I2S 32bit 192kHz DoP128
Note :
 4/5
Date :
Fait bien le taf
Destinée ajouter une interface Bluetooth à un DACvia entrée optique : interface facilement détectée, fait le boulot sans histoire et sans défaut audible. Une demi-étoile en moins pour le câble alim un poil court dans mon setup, et une autre pour le commutateur d'entrée qui revient par défaut sur USB lorsqu'on met la chose hors tension - il faut accéder au mini-bouton de sélection derrière le bidule à chaque mise sous tension, ce qui empêche de le caler au fond du rack et de l'oublier..
 (1)
 (0)
This review has been posted for Digital Interface USB Amanero / Bluetooth 5.0 to AES / SPDIF / I2S 32bit 192kHz DoP128
