USB INTERFACE SPDIF TO II2S LVDS HDMI I2S RJ45

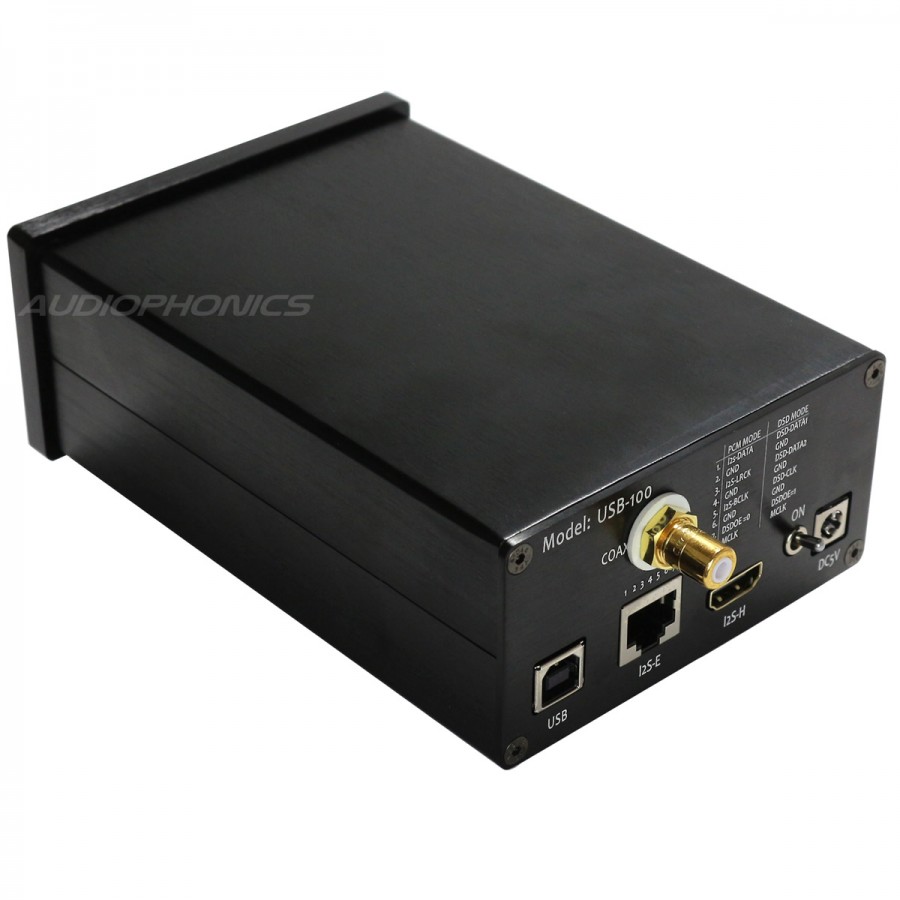

This new USB to SPDIF interface has 2 types of I2S output. It is thus addressed to the demanding amateur who wants an interface for almost all I2S connection scenarios.
The HDMI LVDS output is therefore compatible with the following DACs with HDMI LVDS I2S LKS-type input :
The RJ45 I2S output is compatible with the following brands :
M2Tech, Northstar Design, Ayon Audio and the old AUDIO GD with RJ45 inputs.
High precision clock Crystek and AMANERO USB

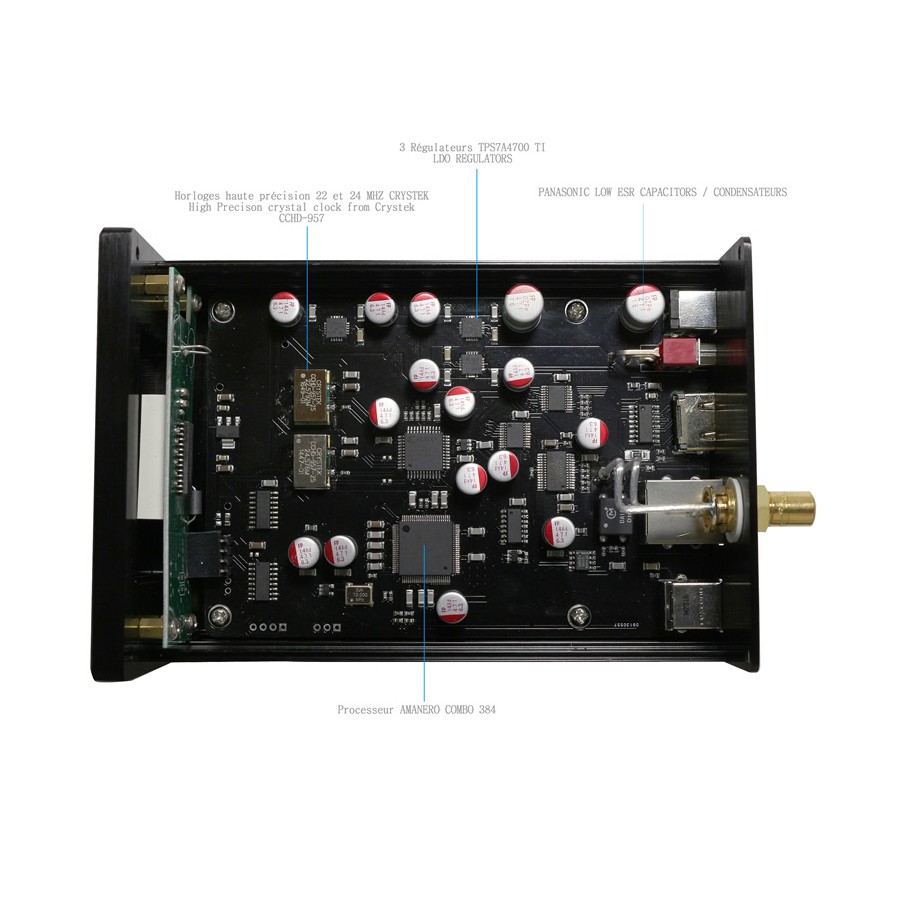

This interface has the best original Crystek clocks on the market with flawless precision. These clocks of 22.5792Mhz (multiple of 44.1Khz) and 24.576 Mhz (multiple of 48kHz) work in concert with the Amanero Combo 384 interface with two processors (Xilinx CPLD and Atmel ARM) that lower the jitter to the limits of measurable.
LDO TPSA4700 TI REGULATORS
This interface has three TPS4700 controllers with noise rejection below -82dB (100hz). Thus the sound of this interface combined with a stable power supply provides unbound, fluidity on the most complex signals, from DSD 512 and PCM of 16 bit 44.1Khz to 32 bit 384kHz.
Watch out! This interface is supplied without power supply unit. Audiophonics recommends a power supply of 5V under 2A minimum! Example :
AUDIOPHONICS Alimentation linéaire régulée Fable Bruit USB 5V 2A 25VA
Alimentation Audiophonics non fournie avec le LKS USB-100
TECHNICAL carateristics
- 32bit 384Khz High Definition interface
- Processors : Amanero ( Xilinx CPLD and ATMEL ARM )
- Double clocks Crystek USA
- 1 HDMI output : LVDS I2S compatible LKS AUDIO ( PCM 32 bit 384Khz max, DSD 512max )
- 1 RJ45 output : I2S compatible M2TECH/NORTHSTAR ( PCM 32 bit 384Khz max, DSD 512max )
- 1 SPDIF coaxial output : Gold plated RCA ( 24bit 192Khz max )
- USB 32bit 384Khz class Audio 2.0 input

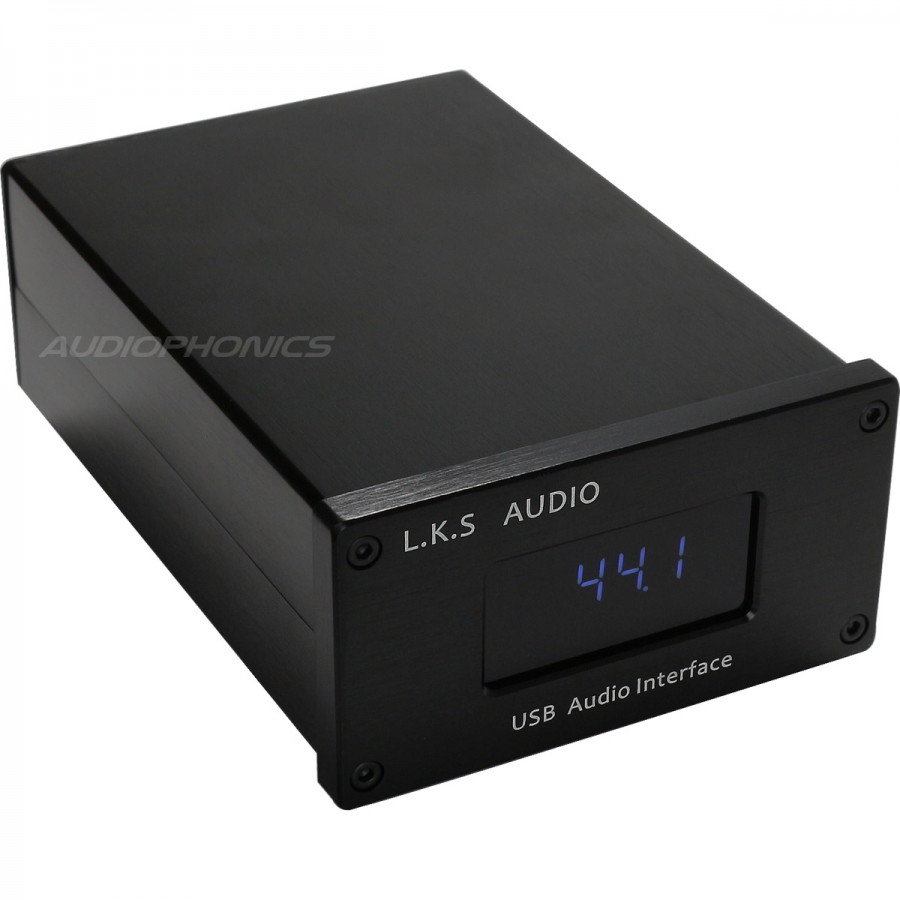

- Sampling frequency rates on screen
CONTENU DU PACKAGE
- 1x câble USB 1m50
- Un câble adaptateur jack 5.5 vers USB
Requires an AMANERO driver with licensed license for Windows 7,8,8.8.1,10. Linux compatible (depends on distributions) and Mac oS without driver Windows driver here

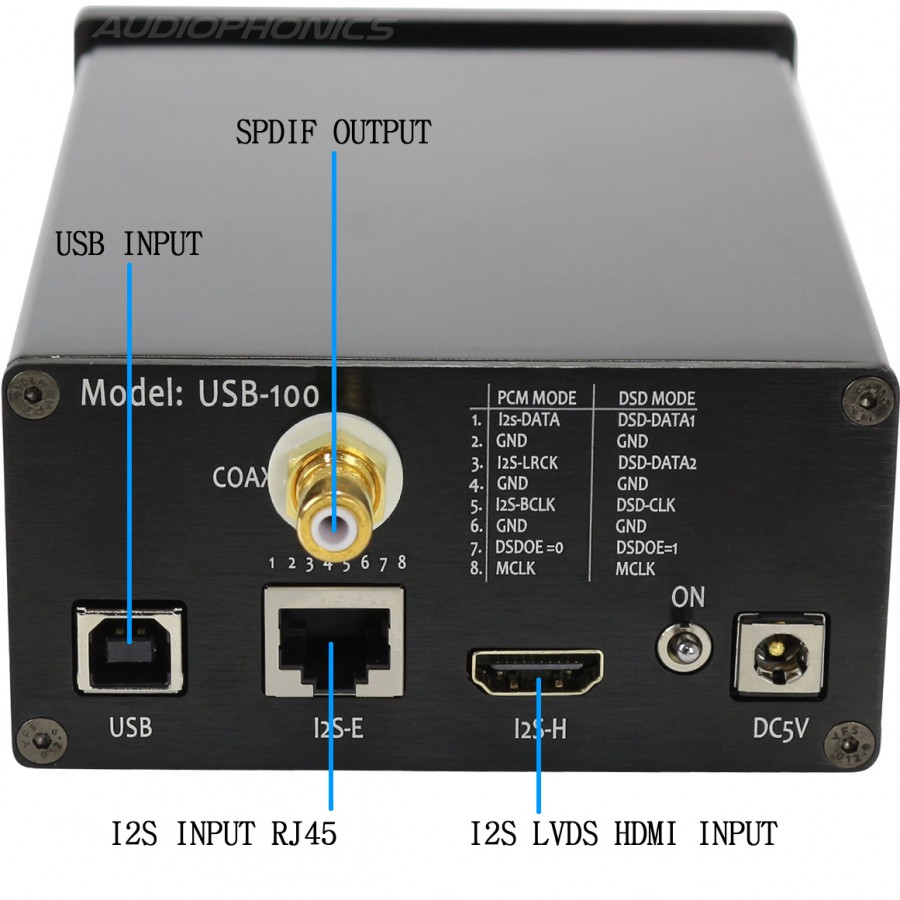

PIN OUT HDMI LKS USB-100
| Mapping I2S / LVDS |
|---|
| A synthesis of main IIS on LVDS pinouts mapping is available here. |
