MiniDSP U-DIO8 Digital interface 8 channels AES/EBU 192KHz USB 7.1

MiniDSP U-DIO8 Digital interface 8 channels AES/EBU 192KHz USB 7.1

The UDIO-8 is an ideal solution for audio performance-oriented projects demanding many high quality chanels.

AES/EBU Version

No customer reviews yet, login to write a review.

By buying this product you get 48 loyalty points


Yes, notify me when available !
Reference : 12750
New product

489,00 €tax incl.

407,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

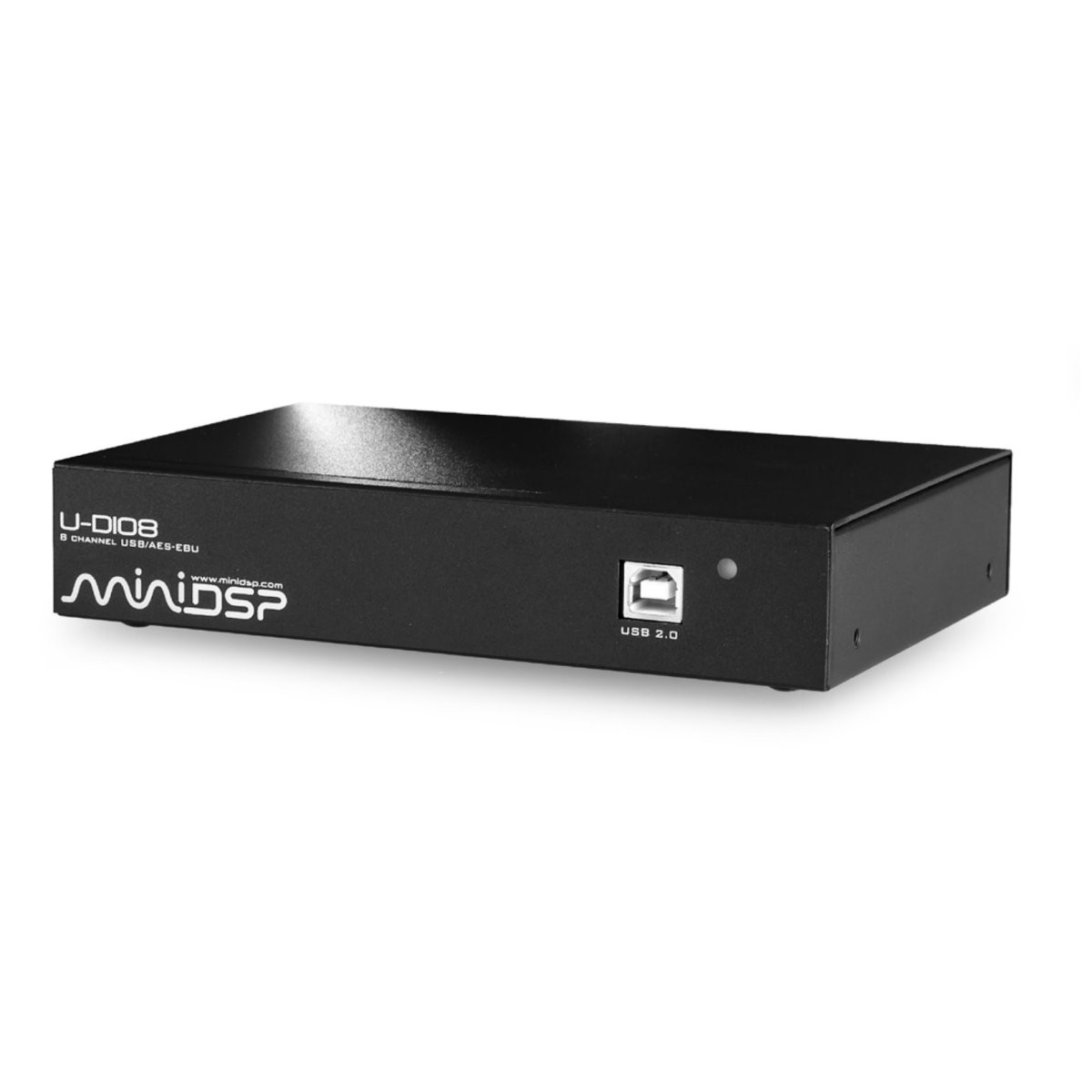

miniDSP U-DIO8

USB digital interface 8 asynchronous channels 192kHz AES/EBU

digital interface UDIO8

The UDIO-8 is an ideal solution for audio performance-oriented projects.
With up to 8 input channels individually capable of converting the sampling frequency received, it can receive and treat separately the frequencies of 32 to 216kHz, and matches the output with the selected internal frequency used on the driver software (ASIO 44.1-192kHz)

 This digital interface and will set up a high-resolution multichannel setup such as a home theater computer controlled, complex live sound mixing environment or / mastering surround up to 7.1.

Compact device

UDIO-8 dimensions 16.1 x 10.8 x 3.1 cm

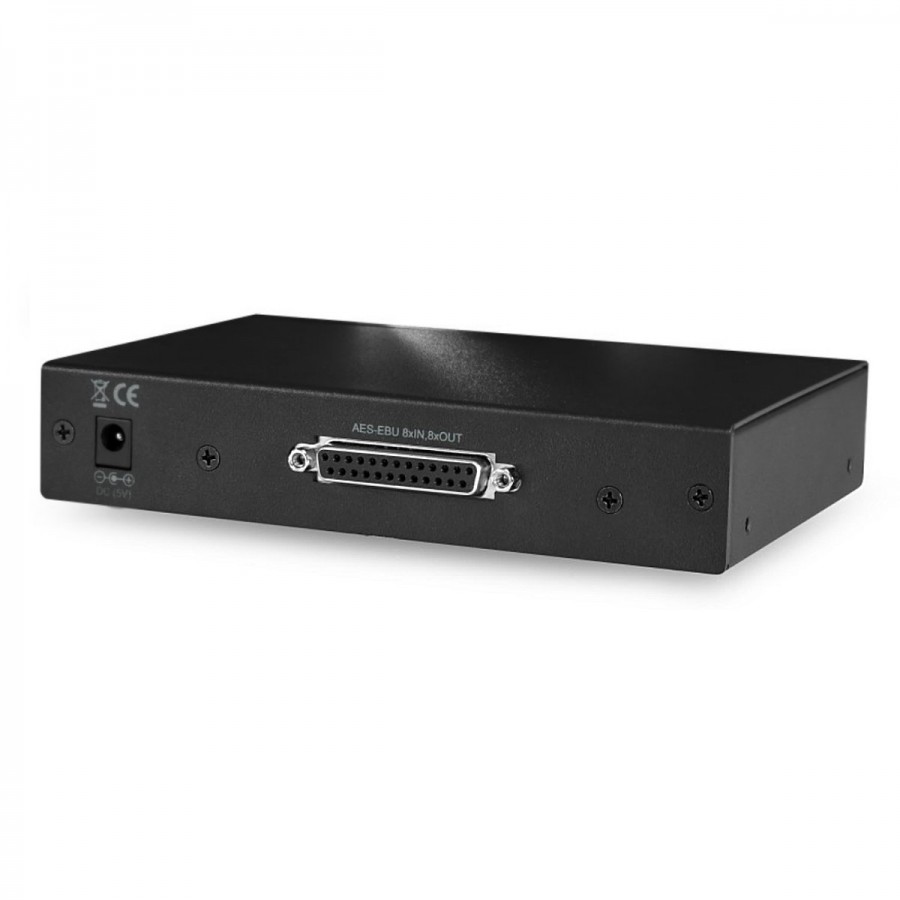

The digital interface U-DIO8 manages to keep not less than 8 channels in an extremely compact size (161 x 108 mm). This feat is made possible by the use of connectivity TASCAM DB25 together all the inputs and outputs in a single port while preserving audio quality.

DB25 connectors TASCAM

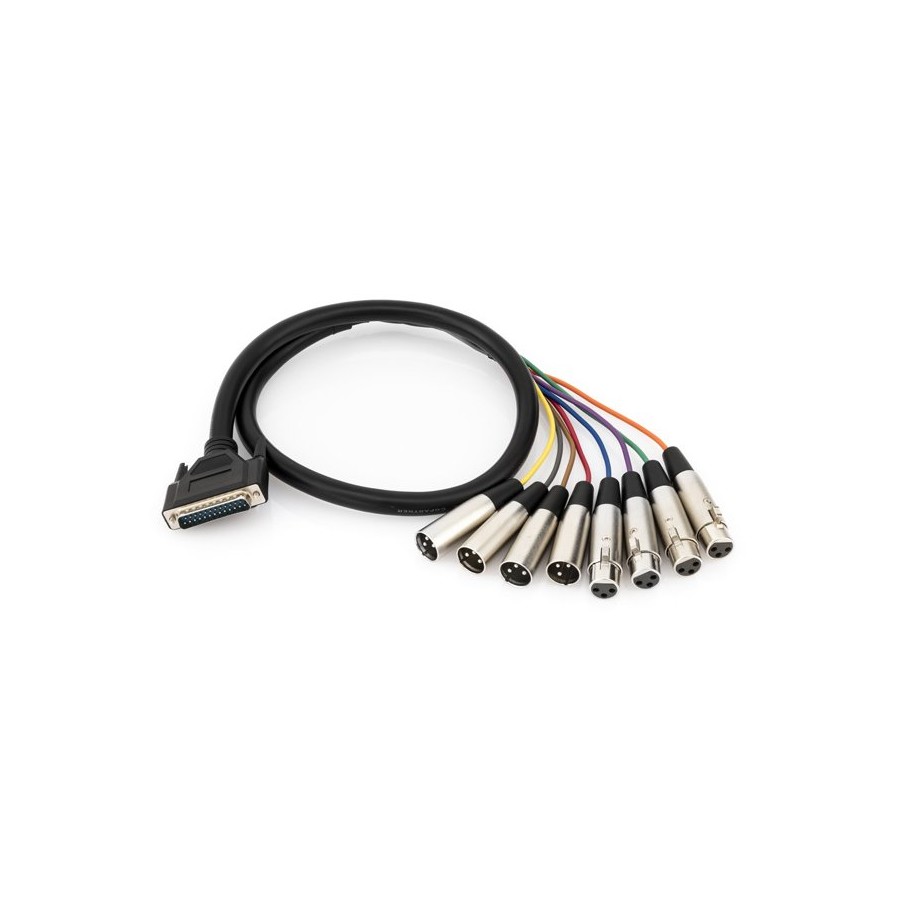

XLR cable adapter - AES/EBU IN (4) and AES/EBU Out (4)

Connection to DB25 port is done through an adapter cable DB25 - 4x AES/EBU IN - 4x AES/EBU OUT. This cable is provided with U-DIO8 interface.

A comfortable length 1.5m allow easy and clean installation point of view of the cable-management.

Effective audio design

driver UDIO8

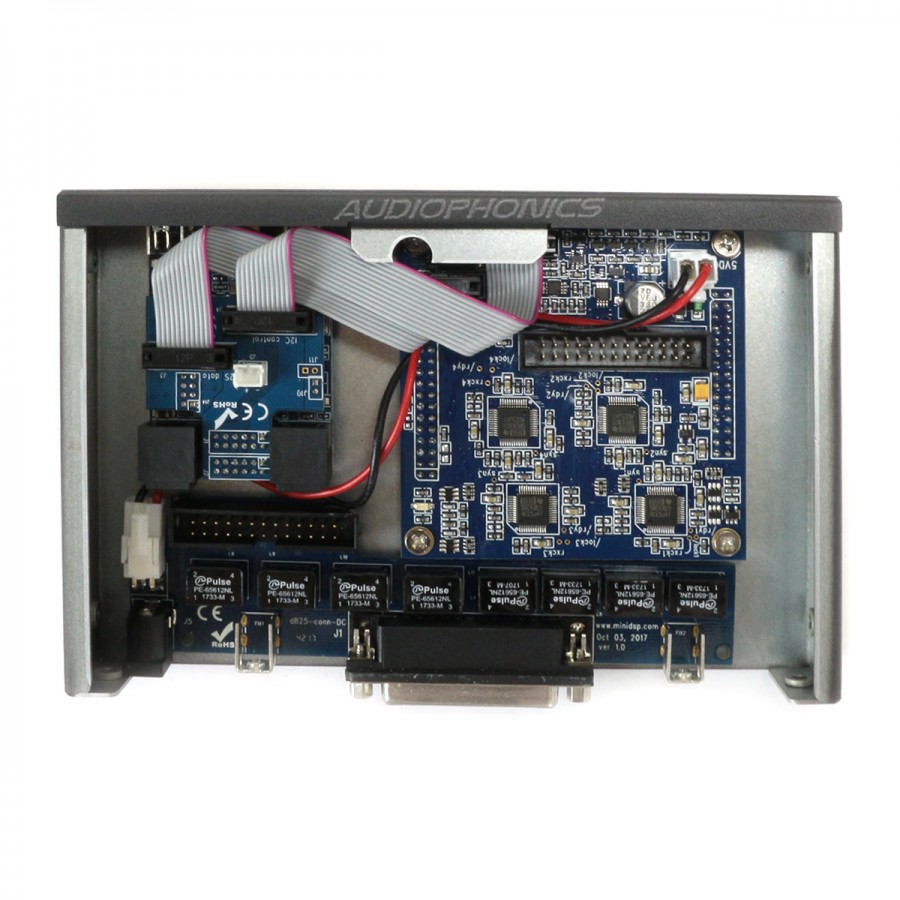

According to the concept of USB digital stream in which exceeds miniDSP the UDIO-8 uses high-quality audio components including a module 16 XMOS hearts for rapid processing of complex multichannel data.

Inputs and outputs are encoded into 24 bits (int) for each track in order to enjoy a highly developed sound depth for stereo streams so that the files 8-channel complex.

The device is automatically detected and integrated into Mac platforms and will require a driver under Windows and Linux. The software interface offers several options to refine the connection and behavior of the digital interface. This will vary the width of the buffer in order to match the host machine performance with the UDIO-8, set the behavior of the device in terms of energy consumption.

The host machine may also individually affect the volume of each channel mono or stereo processing. If required, all channels can be individually defined 0dB (no attenuation).


Specifications
USB interfaceXMOS 16 core
USBB USB Audio Class 2
digital inputs4x AES/EBU (8 channel) to DB-25 connector (Tascam) converting asynchronous sampling (32-192kHz)
digital outputs4x AES/EBU (8 channel) to DB-25 connector (Tascam) sampling conversion controlled by the computer
Resolution and sample rate24bit @ 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz
Chip conversionSRC4382
Dynamic128dB
THD + N-125dB
Operating systemWindows / Linux / Mac / iPad Camera Kit
Power SupplyDC 5V 500mA 2.1mm center positive Supplied with plug EU / UK / US / AU
ConnectorsdB25 to AES/EBU 1.5m providedUSB A to USB B 1.5m provided
Dimensions31 x 161 x 108 mm
Weight500g

Data sheet
InputDB25
InputUSB
OutputDB25
Max sampling rate192kHz
ColorBlack
Interface chipXMOS
