MUSICIAN PHOENIX Digital Interface I2S USB SPDIF 24bit 768kHz DSD512

Musician offers with the Phoenix a high-end digital interface, a real concentrate of technology aimed at providing an extremely clean and stable transmission of the audio signal. Practical, it has a complete range of connectors that will meet most needs, to adapt to the vast majority of audio systems. Moreover, it supports high definition audio streams, for the most accurate and transparent sound reproduction possible.

No customer reviews yet, login to write a review.

By buying this product you get 204 loyalty points


Yes, notify me when available !
Reference : 16654
New product

2 049,00 €tax incl.

1 707,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Musician Phoenix

Digital Interface I2S USB SPDIF 24bit 768kHz DSD512

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512

Musician offers with the Phoenix a high-end digital interface, a real concentrate of technology aimed at providing an extremely clean and stable transmission of the audio signal. Practical, it has a complete range of connectors that will meet most needs, to adapt to the vast majority of audio systems. Moreover, it supports high definition audio streams, for the most accurate and transparent sound reproduction possible.

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512
Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512

Proprietary USB interface

The USB-B input of the Phoenix is associated with a proprietary high-end USB interface, with an audio solution based on a proprietary MCU+FPU STM32F446 chip. This supports high-resolution audio streams, allowing playback of PCM files up to 24bit 768kHz and DSD512.

Altera Cyclone IV FPGA

The Musician Phoenix conceals a high performance Altera Cyclone IV EP4CE22 FPGA at its heart. It is responsible for processing and redistributing data signals to the various audio circuits, while ensuring a very low level of distortion.

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512
Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512

Digital isolation

The digital signal of the Phoenix is fully isolated using a high speed 50Mbps optical coupler. This technology significantly reduces the noise level and thus achieves an excellent signal to noise ratio.

OCXO SC Cut Clock

The Musician Phoenix clock system uses two constant temperature OCXO (Oven Controlled Crystal Oscillator) SC Cut oscillators, offering extremely low noise. This type of oscillator uses a thermostatic bath to maintain the temperature of the quartz resonator at a fixed temperature and thus minimize frequency variations of the oscillator output.

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512
Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512

Optimized power supply

The power supply stage of the Musician Phoenix benefits from the same care given to the audio circuits, in order to provide them with a clean and stable electrical signal. It includes an O-Type transformer made of high quality monocrystalline copper wire.

A complete connectivity

The Musician Phoenix offers a particularly complete connectivity, both in input and output, which will adapt to most needs. Thus, the device offers USB-B, AES/EBU, coaxial, optical Toslink and two inputs for external clock. For the outputs, the Phoenix offers AES/EBU, I2S via HDMI and RJ45 as well as Toslink optical and coaxial.

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512

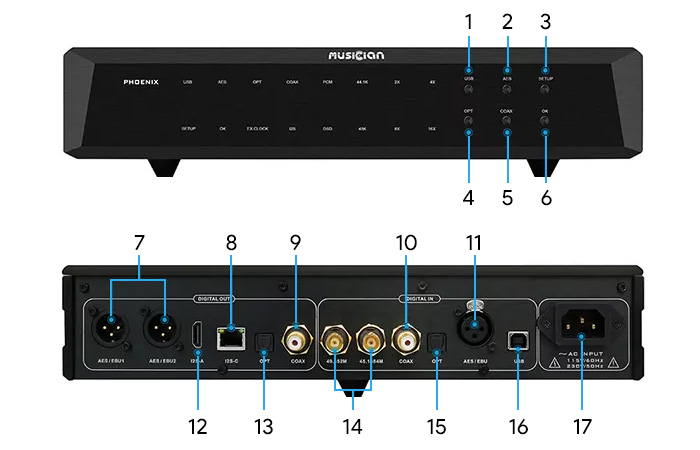

1USB Input selection
2AES Input selection
3Settings button
4Optical input selection
5Coaxial input selection
6OK Button
7AES/EBU Output
8I2S RJ45 Output - LVCMOS Standard
9Coaxial output
10Coaxial input
11AES/EBU Input
12I2S HDMI Output - LVDS Standard
13Optical Toslink output
14Clock inputs
15Optical Toslink input
16USB-B Input
17Power connector

I2S Pinout

Musician Phoenix Interface Numérique I2S USB SPDIF 24bit 768kHz DSD512
Specifications
Product typeDigital interface
Inputs1x USB-B
1x Optical Toslink
1x AES/EBU
1x Coaxial
1x 45.1548MHz clock input
1x 49.152MHz clock input
Outputs2x AES/EBU
1x I2S LVDS (HDMI)
1x I2S LVCMOS (RJ45)
1x Optical Toslink
1x Coaxial
Supported sampling ratesUSB : PCM up to 24bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD64
I2S : PCM up to 24bit 384kHz, DSD Natif up to DSD512, DSD DoP up to DSD64
AES / Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64
General
Supply voltage100-240VAC, 50/60Hz
Consumption≤ 20W
Dimensions345 x 250 x 85mm
Net weight5.5kg
ColorBlack

Data sheet
InputUSB
InputOptical
InputAES/EBU
InputSPDIF
InputBNC
OutputCoaxial SPDIF
OutputI2S LVCMOS via RJ45
OutputI2S LVDS via HDMI
OutputAES/EBU
OutputOptical Toslink
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
Interface chipNC
