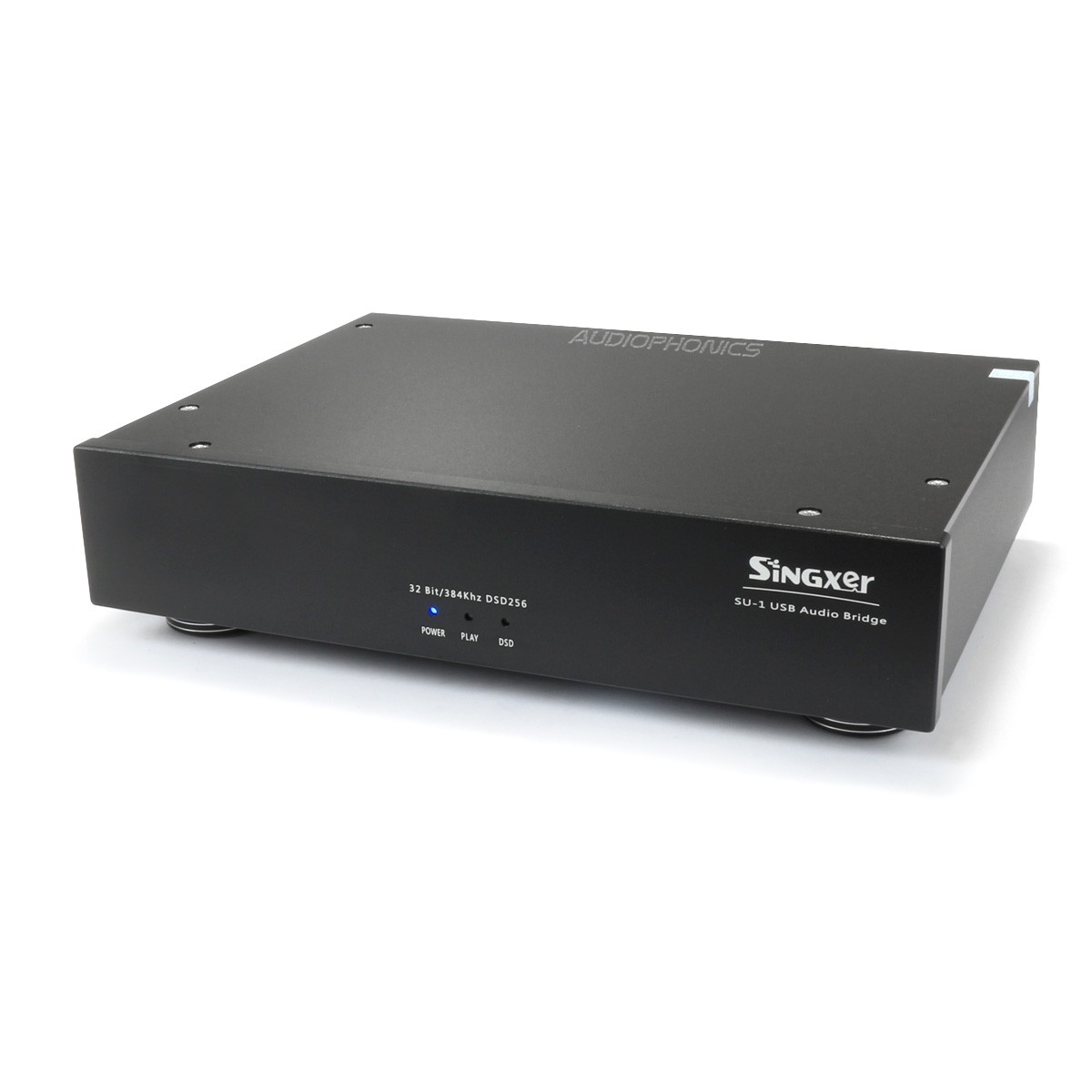

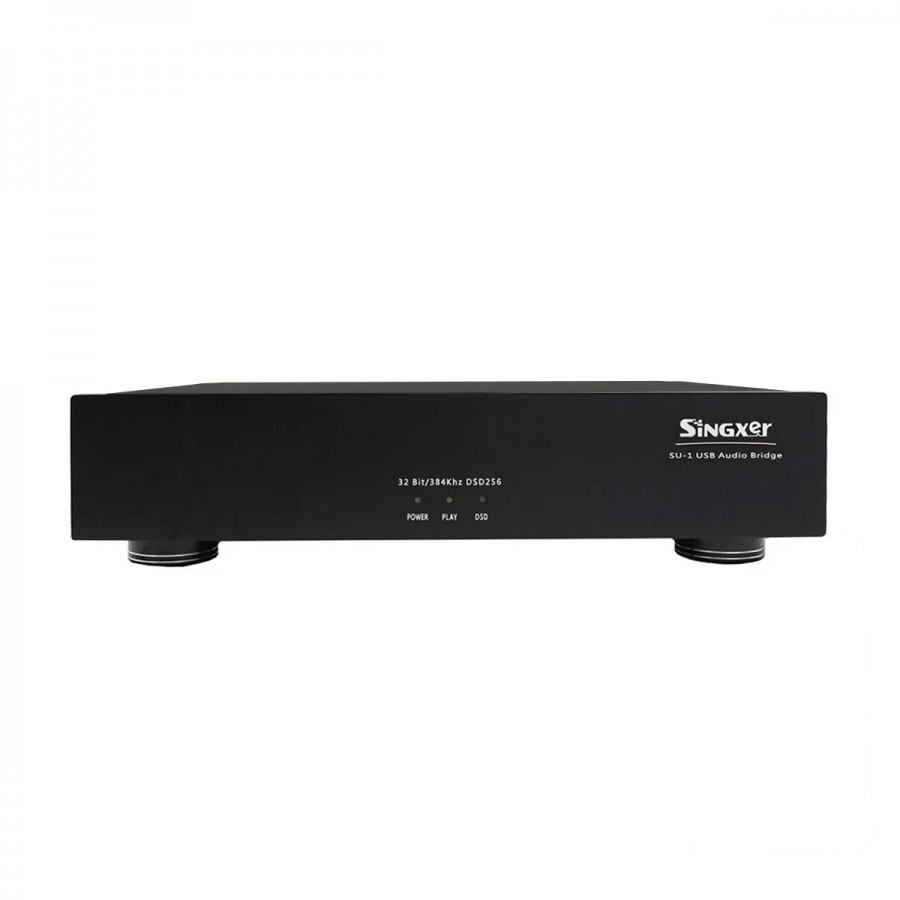

Singxer SU-1

USB XMOS XU208 Digital Interface 32bit 384khz DSD512 SPDIF AES/EBU I2S HDMI LVDS

Singxer SU-1 Interface USB XMOS 32bit / 768khz Coaxial-AES/EBU I2S HDMI LVDS

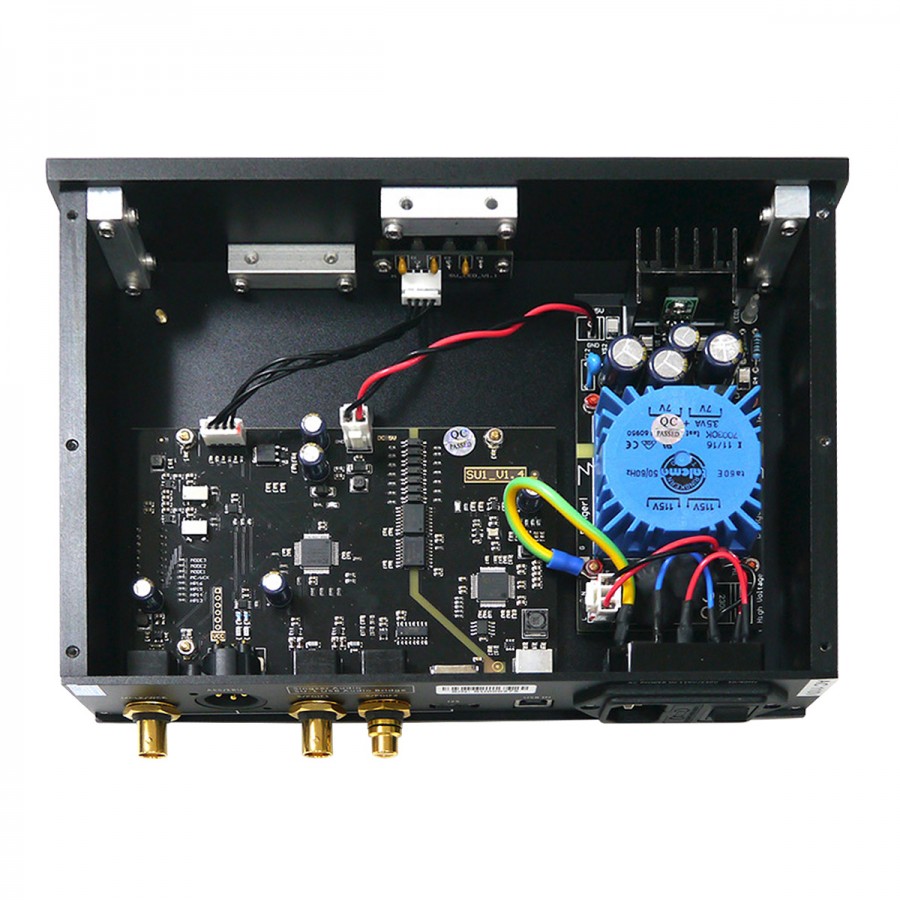

The Singxer SU-1 is a high-performance digital USB interface at an affordable price. It integrates high-end components such as an XMOS USB interface, FPGA or dual clock, allowing it to offer high audio performance while having a panel of output connectors to cover the majority of needs.

USB XMOX Xcore-200 Series

In a device like the Singxer SU-1, the quality of the USB interface module is extremely important. The brand therefore offers an excellent interface module based on an XMOS Xcore-200 USB chip. This 32-bit microcontroller, recognized by audiophiles, offers first-class performance with a low latency system and capable of performing several tasks at once for a processing capacity of up to 1000 MIPS.

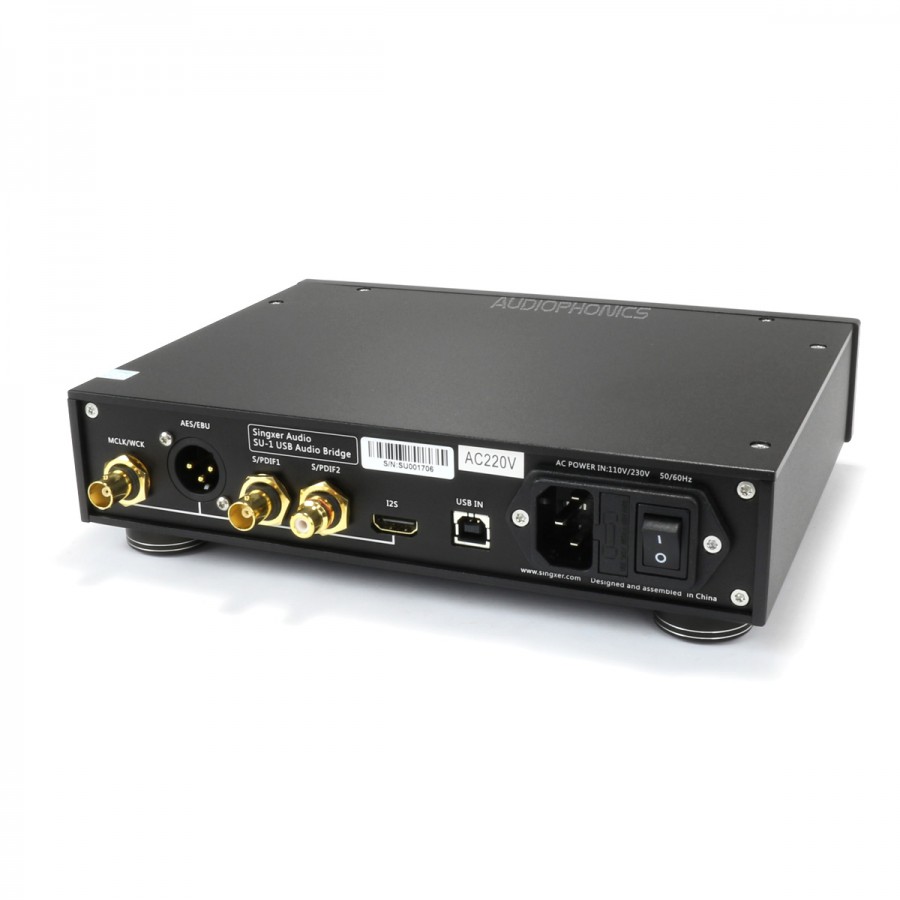

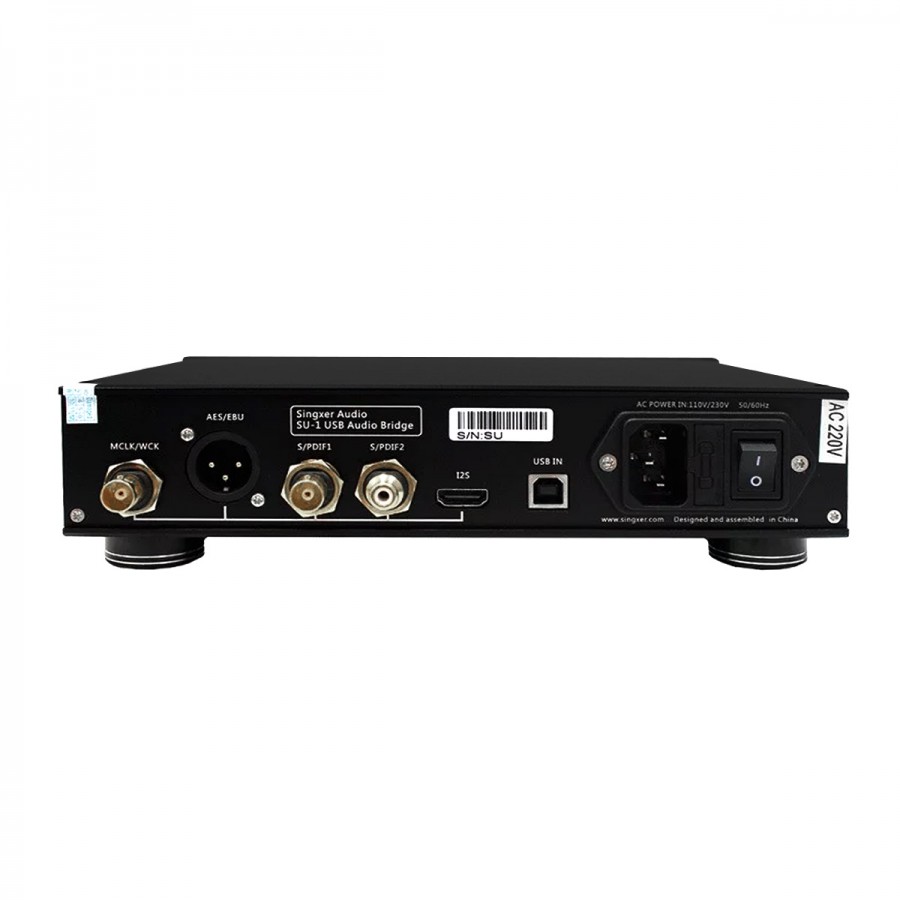

Complete connectivity

To satisfy the majority of user needs, the Singxer SU-1 offers a wide range of outputs. There is SPDIF with a BNC output and a Coaxial RCA output, but also AES/EBU, I2S via HDMI and even an MCLK/WCK clock output.

Singxer SU-1 Interface USB XMOS 32bit / 768khz Coaxial-AES/EBU I2S HDMI LVDS
Singxer SU-1 Interface USB XMOS 32bit / 768khz Coaxial-AES/EBU I2S HDMI LVDS

Crystek dual clock

To ensure perfect signal synchronization and therefore an ultra-low jitter, the SU-1 carries two excellent Crystek CCHD-575 clocks. These are Crystek clocks to reach the lowest jitter.

Technical characteristics

Specifications
Product typeUSB digital interface
USB interface chipXMOS XU208
Supported sampling ratePCM via SPDIF & AES/EBU : Up to 192kHz
PCM via I2S & WCLK : Up to  384kHz
DSD via SPDIF & AES/EBU : DSD64 DoP Mode
DSD via I2S : Native DSD512
FPGAXilinx
Clocks2x Crystek CCHD-575
Input1x USB-B 2.0
Outputs1x Coaxial SPDIF (RCA)
1x BNC
1x I2S via HDMI
1x AES/EBU
1x MCLK/WCK (Clock)
OS CompatibilityWindows XP, 7, 8, 10 - Drivers installation needed
MacOS 10.6 and later
Linux with UAC2 kernel
Android 4.2 and later - OTG Support
I2S CompatibilityAudio-GD : Native DSD support / DoP (All switch OFF)
Holo Audio : DSD Auto-detect (All switch OFF)
PS AUDIO : DSD Auto-detect (All switch OFF)
Gustard (Switch 3/6 ON)
ColorBlack
Dimensions
  • Width : 233mm
  • Depth :
    • With connectors: 185.6mm
    • Without connectors : 170mm
  • Height :
    • With feet : 58.4mm
    • Without feet : 46.5mm

Data sheet
OutputXLR
OutputBNC
OutputI2S LVDS via HDMI
OutputCoaxial SPDIF
Max sampling rateDSD512
Max sampling rate384kHz
ColorBlack
