USB Interface XMOS XU316 I2S SPDIF 32bit 768kHz DSD512 MQA

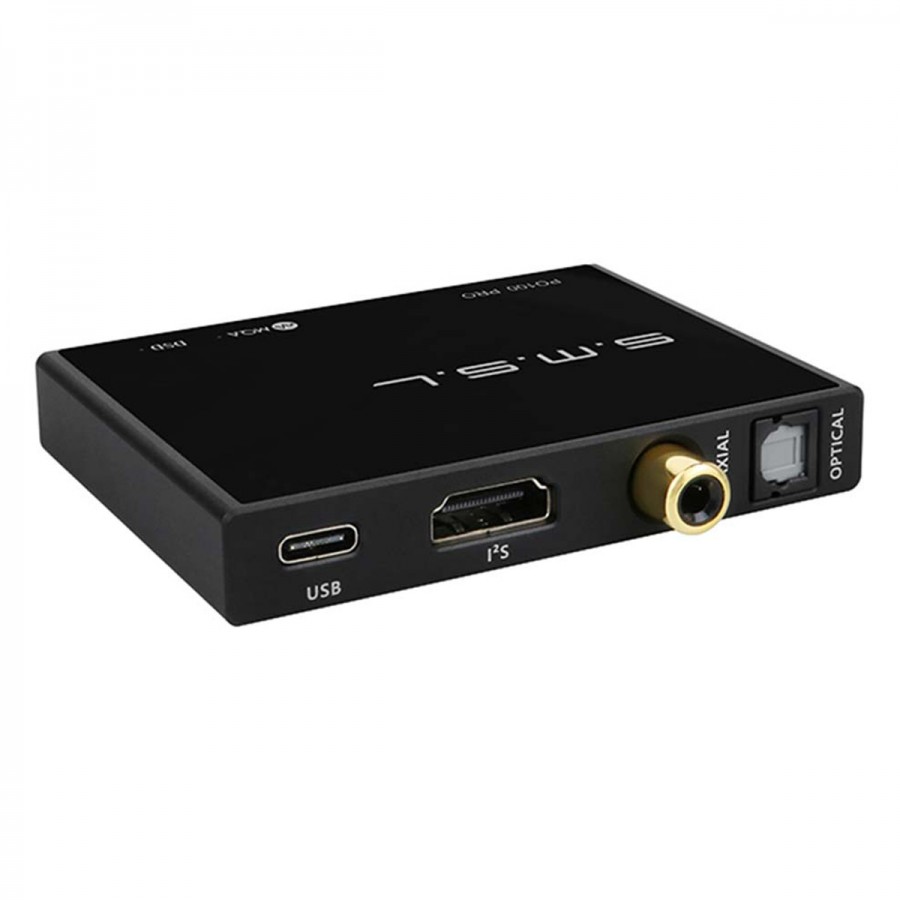

The SMSL PO100 PRO presents itself as an extremely powerful and incredibly compact USB interface. Despite its small size, the PO100 PRO is based on an architecture using high quality components to ensure a faithful and precise sound reproduction. It also offers a complete connectivity to answer most of the connection needs, with USB-C as input and coaxial, optical and I2S via HDMI as output.
The USB-C input of the PO100 PRO is associated with a third generation XMOS XU316 high-end USB interface. This one, in addition to allowing a transparent sound reproduction, ensures the support of high resolution audio streams up to PCM 32bit 768kHz and DSD512.
The SMSL PO100 PRO is able to decode MQA (Master Quality Authenticated) audio files. These files allow to enjoy a sound as close as possible to the original studio recording.
The SMSL PO100 PRO provides two UAC modes and two I2S modes. These modes allow to maximize the compatibility of the interface with other devices. The UAC modes can be useful when used with a console such as PS5 or Nintendo Switch, while the I2S modes can correct compatibility issues in a HiFI installation.
Specifications | |
---|---|
Product type | USB Interface |
USB Interface chip | XMOS XU316 |
Input | 1* USB-C |
Outputs | 1* I2S via HDMI 1* Coaxial 1* Optical Toslink |
USB Transmission mode | Asynchronous |
USB Compatibility | Windows 7/8/8.1/10/11 Mac OSX 10.6 or later Linux Android iOS |
THD+N (No-Weighting) | 0.000008% (141.7dB) |
Supported sampling rates | I2S : PCM up to 32bit 768kHz, Native DSD up to DSD512 Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
Jitter | 75ps |
General | |
---|---|
Supply voltage | 5V 200mA via USB-C |
Dimensions (L*P*H) | 80*60*13mm |
Weight | 75g |
Shell material | Aluminum |
Color | Black |
Input | USB |
Output | I2S LVDS via HDMI |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Max sampling rate | MQA |
Color | Black |
Interface chip | XMOS XU316 |
