FURUTECH FP-DIN Phono DIN Connector 5 Poles Ø10mm
With the FP-DIN, Furutech offers a very high quality 5-pin DIN solderable connector. This includes contacts made of Copper Alloy (Bronze Phosphorus) treated using the proprietary Furutech α Alpha antimagnetic process.
No customer reviews yet, login to write a review.
By buying this product you get 36 loyalty points
Reference : 10411
New product
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)

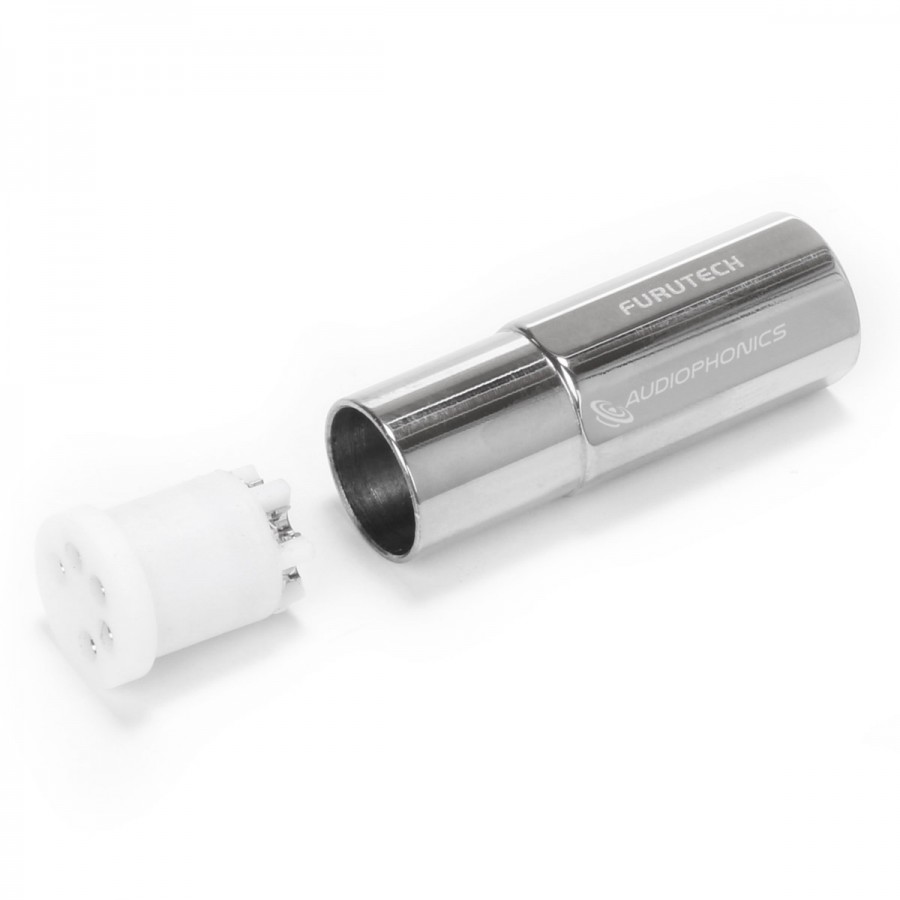

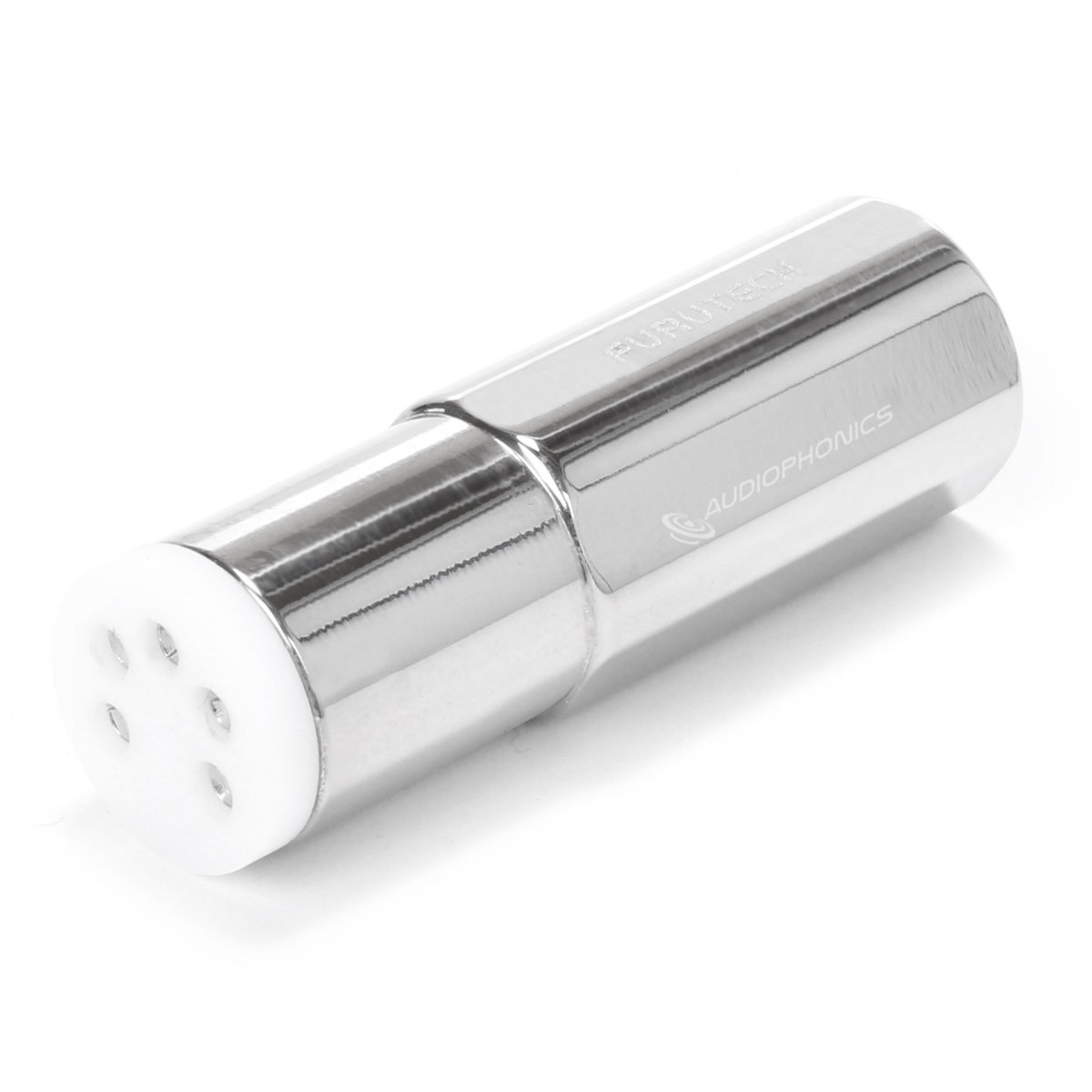

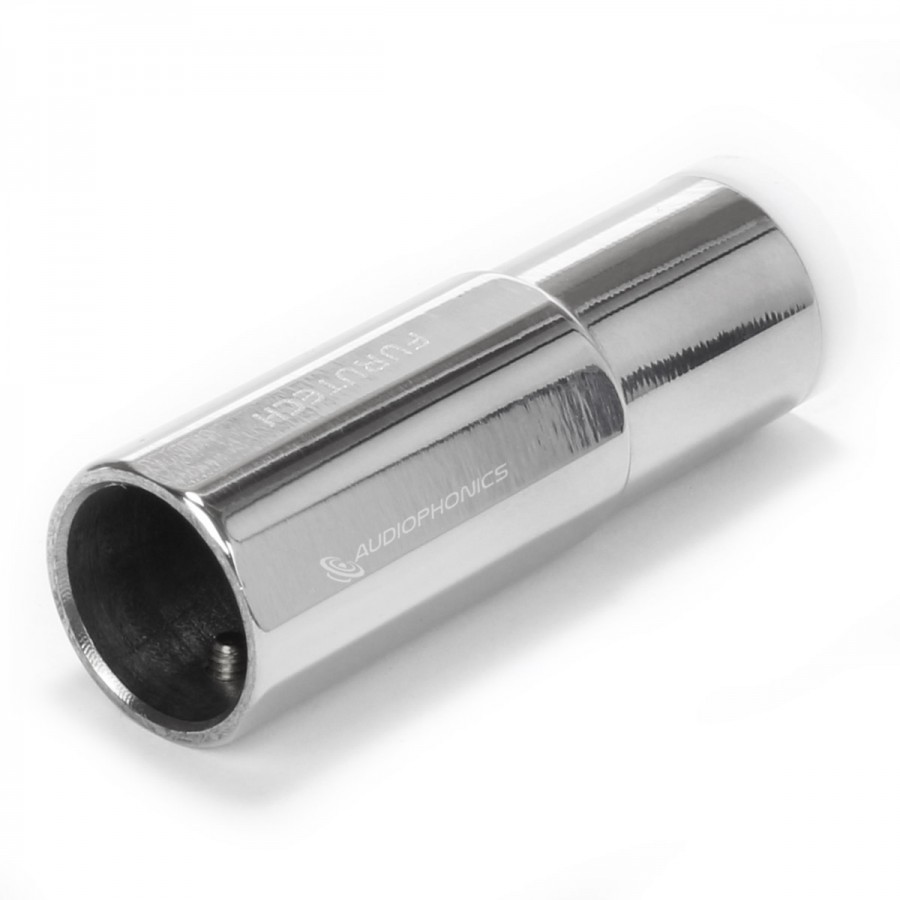

Furutech FP-DIN
Phono DIN Connector 5 Poles Ø10mm
With the FP-DIN, Furutech offers a very high quality 5-pin DIN solderable connector. This includes contacts made of Copper Alloy (Bronze Phosphorus) treated using the proprietary Furutech α Alpha antimagnetic process. The FP-DIN is the result of uncompromising technical design and robustness and will fit precisely on your turntable.
Technical characteristics
| Specifications | |
|---|---|
| Product type | DIN Connector |
| Number of contacts | 5 |
| Contacts material | Phosphorous Bronze |
| Insulation material | Fluoropolymere |
| Connexion type | To solder |
| Total length | 54mm |
| Max diameter | Ø12.7mm |
| PTFE part diameter (contacts support) | Ø10.1mm |
| Max cable diameter | Ø10mm |
| Weight | 30g |
| Color | Silver |
| Max cable diameter (mm) | 10.0 |
| Mounting type | To weld |
| Connectic | Female |
| Contacts number | 5 |
| Max panel thickness (mm) | N/A |
| Connector | DIN |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | None |
