AUDIOPHONICS Kit Aluminium case and accessories for EVO-SABRE DAC Black

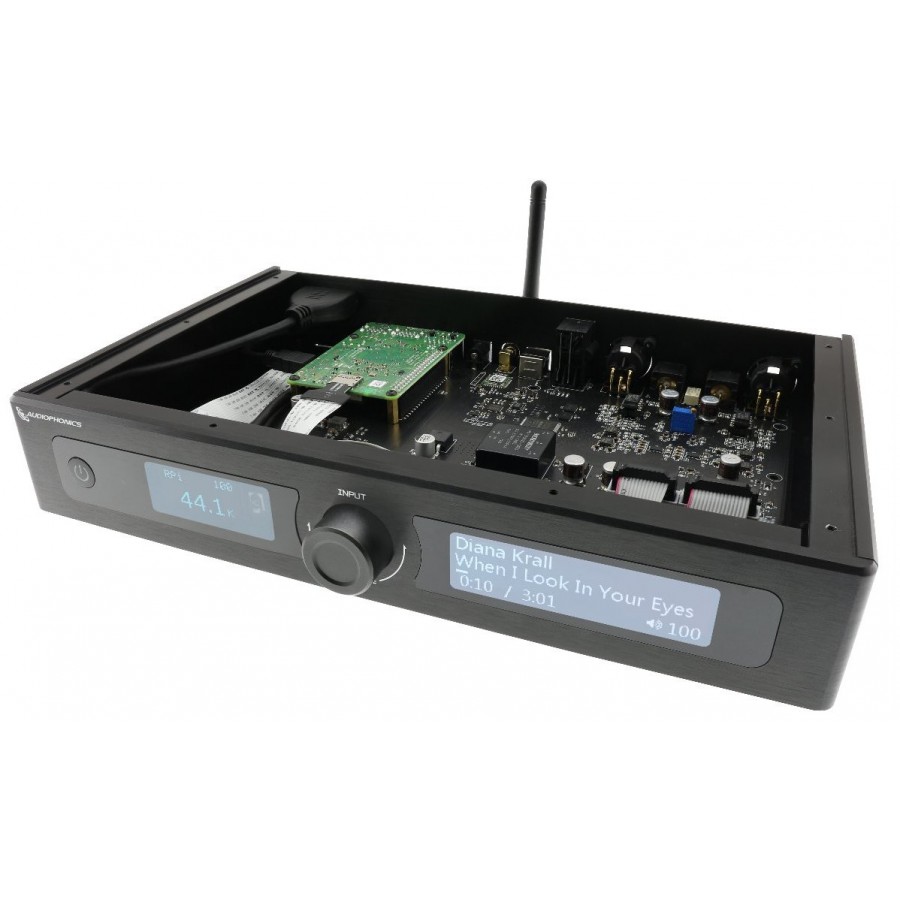

Housing & accessory kit to install and give a professional finish to your DIY projects based on the balanced DAC EVO SABRE Audiophonics. 100% aluminum construction.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 10 loyalty points


Reference : 14656
New product

109,00 €tax incl.

90,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Housing for RaspDAC EVO

Here is the dedicated casing designed to house the Audiophonics RaspDAC EVO DAC card. The latter is machined from 100% aluminum, a light, robust material that blocks any interference that may affect the audio.

The housing is pre-drilled (spacers and connectors). Its assembly comes down to fixing the various panels using the supplied screws and installing the various cards and screens from the DAC.


The only tools required to mount this item are the following :

  • Hex screwdriver 1.5 mm
  • Hex screwdriver 2.0 mm
  • Hex screwdriver 2.5 mm
  • Phillips screwdriver P2
The housing kit comes with all the accessories required to mount a functional DAC from an EVO SABRE card (to be purchased separately). The hardware and spacers required for installing the EVO module, its basic display module and its additional screen module are included.

The connectors and panel-mount allowing access to the connections of the various elements of the DAC are also included with this kit.

Case not compatible with Raspberry Pi 5.

This product only contains the Audiophonics EVO case and accessories, the DAC module is sold separately here.

Here you may find a kit including all required parts to assemble a complete EVO SABRE DAC Streamer using 100% of its capacities : DAC module, Remote control, Housing, Power supply and Raspberry Pi.

Panels

The front panel is drilled to accommodate the screen PCB / controller / encoder delivered with the EVO module. It is also pierced to receive an optional screen intended to interface with the Raspberry Pi when the EVO module is operating in network drive mode.

From left to right, the connector panel (rear) has a balanced XLR output as well as an unbalanced RCA output. Then the DAC digital inputs with coaxial connector, optical connector, USB-B input and bluetooth antenna.

The connector panel is also equipped with a Jack DC input dedicated to the power supply.

Finally, the RPI 4 connectors featuring RJ45, USB-3, USB-2, HDMI video output as well as connector for SD card dedicated to the operating system.

The rear cover of the supplied housing is drilled to match the connectors of the RPI 4.

EVO accessories


In addition to the panels, screws and spacers, this box kit includes all the accessories to mount a real autonomous audio device from an EVO-SABRE DAC module such as a compatible bluetooth antenna.

Every parts necessary to optimize the SABRE EVO DAC network drive mode are also included : a micro-HDMI to HDMI  panel-mount to access the Raspberry Pi's video connector and a micro-SD panel-mount to quickly access the network streamer operating system.

Screen covers


The EVO housing kit comes with two covers for the screens. These offer a professional finish to the complete product once mounted while protecting the most fragile parts of the device.

It is also an ideal solution to avoid leaving a empty screen soccket if you decide not to use your DAC EVO in network drive mode (without mounting a Raspberry Pi).

The covers are self-adhesive for easy and durable installation.

Polyurethane feet


4 self-adhesive crack resistant anti-vibration polyurethane feet are supplied with this housing.

These provide excellent stability, a rudimentary but effective vibration absorption while protecting the case and its support from possible scratches and wear related to friction.

Optionnal secondary screen socket

The EVO Sabre Housing has an available socket for a secondary display (not included with the housing). This secondary display connects to the Raspberry Pi (if present) in SPI (CN4) via a connector already mounted on your EVO DAC SABRE BOARD. This screen is very usefeul to retrieve and display in real time the playback metadata at the software level (Dietpi / LMS) in a similar way to what our RaspDac Mini already do.

A cable and all necessary screws / washers are included in this housing kit for mounting the secondary optionnal screen.

Specifications
TypeDIY housing + set of accessories
Matériau boîtier100% aluminum
Pre-drilledYes (screws, spacers & connectors)
MarkingsYes (front & rear panels)
Dimensions185 x 300 x 55 mm
Weight1.2kg

Parts included

Front panelx1
Rear panelx1
Side panelsx2
Top platex1
Bottom platex1
Screen coversx2
M3 countersunk Phillips screw (panels mouting)x16
M3 countersunk hex screw (DAC board bottom mounting)x6
Spacers M3x 10 Female - Female (DAC board bottom mounting)x6
M3 x 5 domed screw (DAC board top & rear panel mounting)x10
M3 x 4 domed screw (display mounting)x4
Brass spacers M3 x 4 (display mounting)x2
Cable for display connectingx1
Brass spacers M2.5 x 12 (RPI mounting)x4
Domed screw M 2.5 x 5 (RPI mounting)x8

Cylindrical wood screw M3 x 10 (XLR / Optical connectors mounting)		x5
M3 x 16 countersunk screw (SD card extension attachment)x2
M3 x10 washers (Secondary screen mounting)x2
Clamp for SD card extensionx1
Flat axis aluminum button 25 x ⌀6mm Blackx1
Extension for micro-SD connectorx1
Micro HDMI to HDMI panel-mountx1
2.4GHZ SMA 3dBi Male RF Antennax1
Polyurethane feet 3M 20x8mmx4

Data sheet
ColorBlack
MaterialAluminium
Internal width300
Internal depth185
Internal height55
