IAN CANADA Clock Upgrade Kit For Denafrips ARES 12TH

New
With this kit, Ian Canada is offering a socket to replace the internal clock of the ARES 12th DAC from Denafrips. Indeed, one of the major differences between the ARES and more expensive DACs from the same brand is the quality of the clock, for example the PONTUS uses a TCXO clock and the TERMINATOR an OCXO clock. So, by modifying this precise point, the margin of improvement of the ARES is impressive, allowing it to offer a superior sound rendering with much better spatialization while preserving the typical timbre of R2R conversion.

No customer reviews yet, login to write a review.

By buying this product you get 8 loyalty points


Reference : 19898
New product

89,90 €tax incl.

74,92 € tax excl.

- +


Shipping date: 19-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Ian Canada Clock Upgrade Kit For Denafrips ARES 12TH

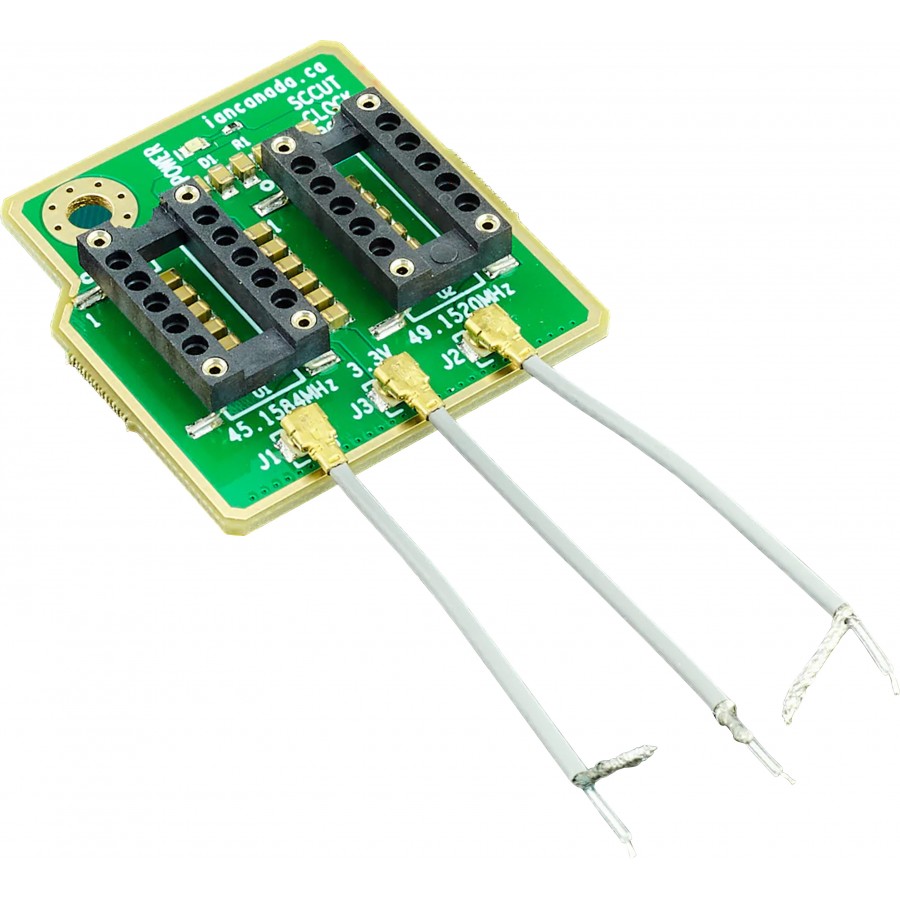

IAN CANADA Clock upgrade kit for Denafrips ARES: Front view

With this kit, Ian Canada is offering a socket to replace the internal clock of the ARES 12th DAC from Denafrips. Indeed, one of the major differences between the ARES and more expensive DACs from the same brand is the quality of the clock, for example the PONTUS uses a TCXO clock and the TERMINATOR an OCXO clock. So, by modifying this precise point, the margin of improvement of the ARES is impressive, allowing it to offer a superior sound rendering with much better spatialization while preserving the typical timbre of R2R conversion.

Please note that any modification to your device will invalidate its warranty. If you are not fully experienced in soldering and modifying printed circuits, you should call in a professional.

Ian Canada Clock upgrade kit for Denafrips ARES : Assembly stage

1. Remove the two default SMT clocks from the PCB using a hot air soldering station. Take care not to damage the PCB and other components.

IAN CANADA Clock upgrade kit for Denafrips ARES: Details of PCB pads
IAN CANADA Clock upgrade kit for Denafrips ARES: Mounted spacer

2. Fit the 7 mm mount where the mounting screw used to be. Place the KIT PCB on the bracket, ensuring that it is centred. Tighten the screw to secure the PCB in place.

3. Solder the three coaxial cables to the 6 PCB pads, exactly as shown in the photo. Signal terminals first, then earth wires. The pads are not very strong. Take care not to exert any force on the cables.

IAN CANADA Clock upgrade kit for Denafrips ARES: Soldered kit

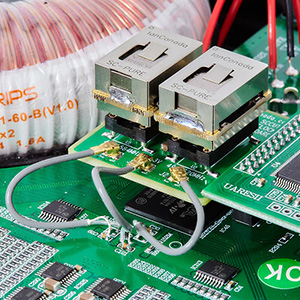

IAN CANADA Clock upgrade kit for Denafrips ARES: Kit with clock fitted

4. Switch on the DAC (rear and front), make sure the blue LED on the KIT PCB is lit. Switch off the unit, fit the two clocks (not supplied in this KIT) into the XO sockets. Make sure that the frequencies match the positions of the XO. Pay particular attention to the orientation of the clocks, as incorrect installation orientation may damage them.

Technical characteristics

Specifications
Product typeClock upgrade kit for Denafrips ARES
General
Package1x Clock stand
1x Male/female spacer
