DAYTON AUDIO DSP-408 4x8 Digital Audio Processor DSP ADAU1701 SigmaDSP 25/56bit 4 to 8 Channels

Take control of your sound

The DSP-408 offers a unique feature in the DSP world: the ability to use it at home or in a vehicle. This system will provide you with a single DSP model for all your audio processing and setup needs.

For many, the quest for sound perfection is an endless quest. By using the various features of the DSP-408, you can manipulate and improve the sound quality of your audio system simply. This will allow you to access all the following features and perfect your system in no time:

Software featuresp>

10 band per channel parametric equalizer

High and low shelf EQ per channel

Variable crossovers : High/Low/Band-Pass slopes 0-24dB, Linkwitz Riley/Butterworth/Bessel

Delay : 0 to 277cm or 8.1471ms adjustable in 1cm steps

Input/Output mixing to customize the signal path

Phase adjustment

Custom 6 presets

Save, load and delete presets

Software controllable level attenuation on the preamp and high level inputs

Minimum / maximum voltage protection

Reverse voltage protection

Mute circuit and delay

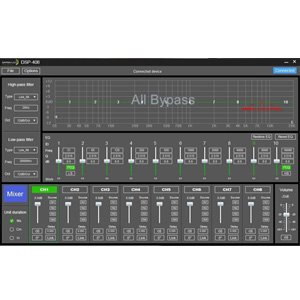

Controllable interface via Windows

The DSP-408 is easily controlled directly from Windows software, specially developed by Dayton Audio. This application incorporates all the tools you may need to help your audio system perform at its best.

Despite the plethora of options and settings available in this software, Dayton Audio has made it easy to use and intuitive, so that everyone can get the most out of their hardware without necessarily having to have advanced technical skills and knowledge.

Android application via Bluetooth connection (Optional)
Bluetooth dongle sold separately

Por you to make your settings directly from your Android smartphone, Dayton Audio offers a dedicated mobile application. This will allow you to enjoy all the features of your DSP, again via an ergonomic and simple graphical interface, but always complete. In addition, the settings with the application being made via Bluetooth, you can make your settings in front of your system, under optimal conditions. In addition, you can also use your smartphone as an audio source for quick testing.

The application is available directly on the Android Google Play by clicking on the button below.

Specifications
Chipset	Analog Devices ADAU1701 Sigma DSP 28/56 bit
Inputs	4x RCA
Outputs	8x RCA
High level inputs	x4
High level inputs impedance	180 Ohm
RCA inputs impedance	>= 20000 Ohm
Frequency response	20Hz - 20kHz
THD+N	0.008%
Output impedance	< 50 Ohm
Max input level	>= 3.2V THD=1%
RCA output level	3.5V RMS
SNR	>= 115dB
Remote control output current	> 500mA

Specifications

Chipset

Analog Devices ADAU1701 Sigma DSP 28/56 bit

Inputs

4x RCA

Outputs

8x RCA

High level inputs

High level inputs impedance

180 Ohm

RCA inputs impedance

>= 20000 Ohm

Frequency response

20Hz - 20kHz

THD+N

0.008%

Output impedance

< 50 Ohm

Max input level

>= 3.2V THD=1%

RCA output level

3.5V RMS

SNR

>= 115dB

Remote control output current

> 500mA

General
Power supply	12V DC 1.5A (included)
Dimensions	166 x 115 x 26mm
Package	1x DSP-408 1x power supply 12V 1.5A (Requires US to EU adapter) Cable for high level input (16 pins) 1x USB-A to USB-B cable 2x Mounting brackets Screws Rubber pads

General

Power supply

12V DC 1.5A (included)

Dimensions

166 x 115 x 26mm

Package

1x DSP-408
1x power supply 12V 1.5A (Requires US to EU adapter)
Cable for high level input (16 pins)
1x USB-A to USB-B cable
2x Mounting brackets
Screws
Rubber pads

Input	RCA
Output	RCA
Max sampling rate	NC
Color	Black
