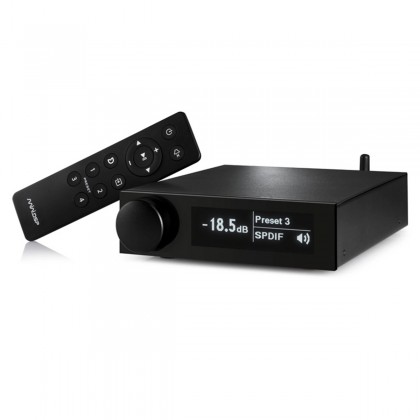

Digital Audio Processor DSP 2x8 Channels SHARC ADSP21489 XMOS Bluetooth 5.0 aptX HD LDAC
The miniDSP Flex Eight is the latest member of the miniDSP Flex line of advanced audio processors. Here the brand takes advantage of its flexible hardware architecture to fit eight channels of digital signal processing and a high-quality analog output stage into a compact package.
With multiple digital inputs and eight single-ended analog output channels, the Flex Eight miniDSP can support up to four stereo channels of active speakers. Flexible 2x8 signal routing allows for many other configurations, such as two channels, three channels, and multiple subwoofers. As always, a full suite of proven audio processing features is included: parametric EQ, IIR and FIR filters, crossovers, advanced biquad programming and delay, on each output channel.
The Flex Eight has stereo digital inputs in USB-B, coaxial, Toslink optical and Bluetooth (aptX, LDAC) formats. An OLED display on the front panel and a volume control knob allow for easy control of the device. In addition, settings can be easily changed using the Stereo Dirac Live® acoustic correction software.
The miniDSP Flex Eight is the perfect solution for a compact and modern integrated active speaker and subwoofer system, offering many possibilities and adapting to various scenarios.
DIRAC licence not included, but available here.
Specifications | |
---|---|
Product type | 2x8 Channels DSP |
Inputs | Bluetooth 5.0 1x USB-B Coaxial Optical Toslink |
Outputs | 8x Single-ended RCA |
CPU | Analog Devices SHARC ADSP21489 400MHz 32bit floating point |
USB Interface | XMOS |
Supported Bluetooth codecs | SBC, AAC, aptX, aptX HD, LDAC |
SNR | 128dB(A) |
THD+N | 0.0003% @ -111dB |
Supported sampling rates | PCM up to 32bit 96kHz |
Supported Bluetooth codecs | SBC, AAC, aptX, aptX HD, LDAC |
Analog output impedance | 200Ω |
Max analog output level | 2Vrms |
Frequency response | 20Hz - 20kHz ±0.05dB |
SNR | 128dB(A) avec DRE (Digital Range Enhancer) |
THD+N | 0.0003% (-111dB) @ 1kHz |
Crosstalk | -120dB |
Filtering technology | IIR (10 bands/outputs) + FIR |
General | |
---|---|
Supply voltage | 12VDC 1.6A (power adapter included) |
Consumption | 4W |
Dimensions | 150 x 180 x 41mm |
Color | Black |
Package | 1x miniDSP Flex Eight 1x Power adapter 1x Remote control |
