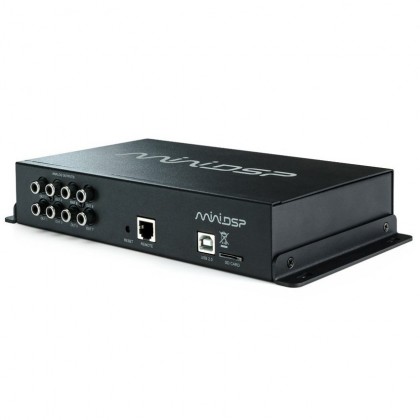

MiniDSP C-DSP 6x8 Audio Processor USB 28/56bit 6 to 8 channels

This powerful DSP can both serve as an active multi-channel filter, processor, 6-band parametric equalizer, source mixer, and DAC / ADC.

It has 2 digital inputs, 4 analogue inputs and 8 asymmetrical analog outputs.

Combined with a software plug-in via USB-B, it is possible to configure real-time audio processing filters from a PC or Mac.
Once the device is configured, the device operates autonomously and therefore does not require the use of a computer.

MiniDSP C-DSP 6x8 User's Manual

Presentation of the MiniDSP C-DSP 6x8

Features:/ Strong>

• DSP ADAU1445 172MHz, 28 / 56bit
• Sampling rate: ADC / DAC 24bit 48kHz
• Internal processing sampling rate: 48kHz
• Control interface without driver USB 2.0 compatible Windows / Mac OS
• S / PDIF RCA Digital Input
• Asymmetric inputs: Balanced or RCA terminals
• Unbalanced outputs: RCA
• Noise signal ratio DAC: 110dB
• Input signal max. RCA: 2Vrms (8 dBu) asymmetrical
• Input signal max. Terminal Blocks: 4Vrms (14 dBu) asymmetrical or 8Vrms (20dBu) symmetrical
• Output signal max. RCA: 2Vrms (8 dBu) asymmetrical
• RJ45 port to connect a remote control (supplied)
• MicroSD card slot (software update)
• Power supply 12V DC via terminal blocks (DC-DC power supply)
• USB 2.0 port
• Dimensions: 41 x 205 x 122mm

Are delivered:/ Strong>

• 1x USB-B cable
• 1x remote control
• 1x Remote control cable 1.5m
