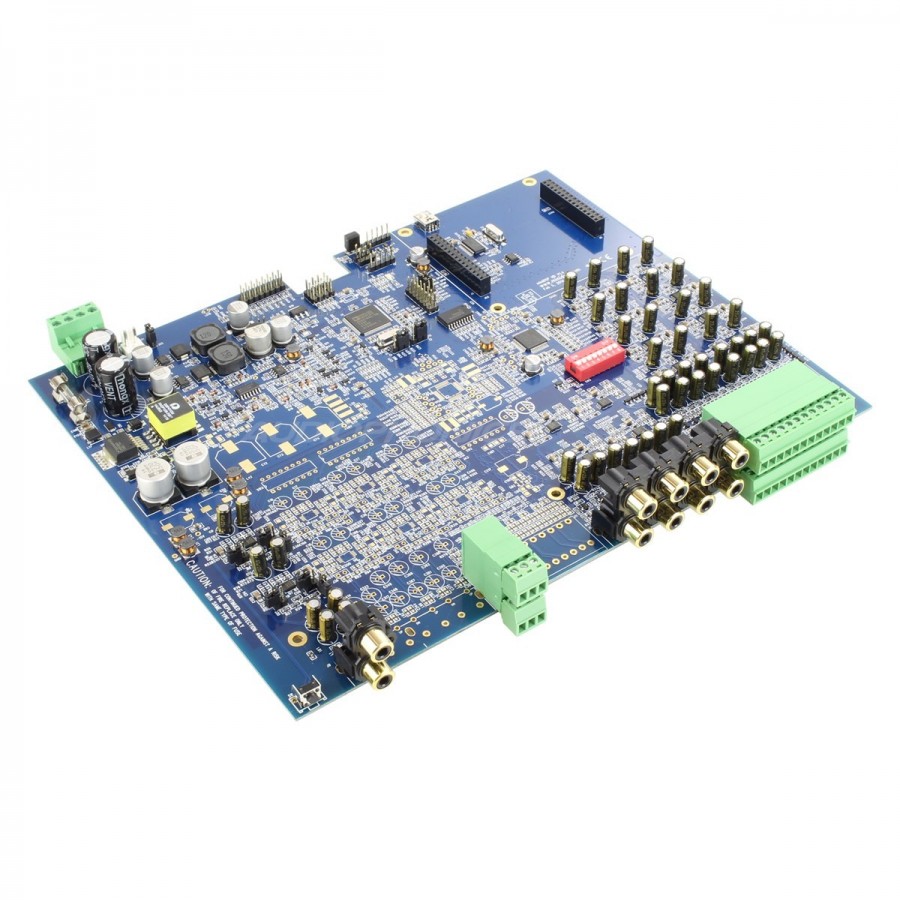

MiniDSP Kit 2x8 Audio Processor 26 / 56bit 2 to 8 channels

This powerful DSP can serve both as an active multi-channel filter, processor, equalizer, source mixer, ADC and DAC converter.

It has 2 analogue inputs and 8 balanced and unbalanced analog outputs.
It is possible to add digital inputs by connecting a card miniDSP DIGI-FP on the I2S input.

Combined with a software plug-in, it is possible to configure real-time audio processing filters from a PC or Mac.
Once the card is configured, the device operates autonomously and therefore does not require the use of a computer.

This product is compatible with our remote control: fiche 10901

Review on HifiZine

MiniDSP 2x8 User's Manual

Plug-in documentation for the MiniDSP 2x8

Introducing the MiniDSP 2x8

Features:/ Strong>

• 172MHz, 28 / 56bit
• 24bit ADC / DAC
• 96kHz sample rate
• Control interface without driver USB 2.0 compatible Windows / Mac OS
• Asymmetric inputs: Balanced or RCA terminals
• Unbalanced outputs: Balanced or RCA terminals
• Sampling rate: ADC 24bits - DAC 48 / 96kHz
• ADC / DAC Noise Ratio: 114dB
• Input signal max. RCA: 2Vrms (8 dBu) asymmetrical
• Input signal max. Terminal Blocks: 4Vrms (14 dBu) asymmetrical or 8Vrms (20dBu) symmetrical
• Output signal max. RCA: 2Vrms (8 dBu) asymmetrical
• Output signal max. Terminal Blocks: 4Vrms (14 dBu) asymmetrical or 8Vrms (20dBu) symmetrical
• Dip Switch output control 6dB attenuation on outputs by Dip Switch control
• Infrared Receiver
• Extention I2S compatible with miniDIGI I / O card (SPDIF / Toslink / AES)
• Power supply: 12Vdc, 18W
• Remote IN / OUT(Trigger) Turns off power with a delay to avoid plops
• USB: Mini-USB connector and standard 5pin connector
• Dimensions: 30 x 200 x 250mm

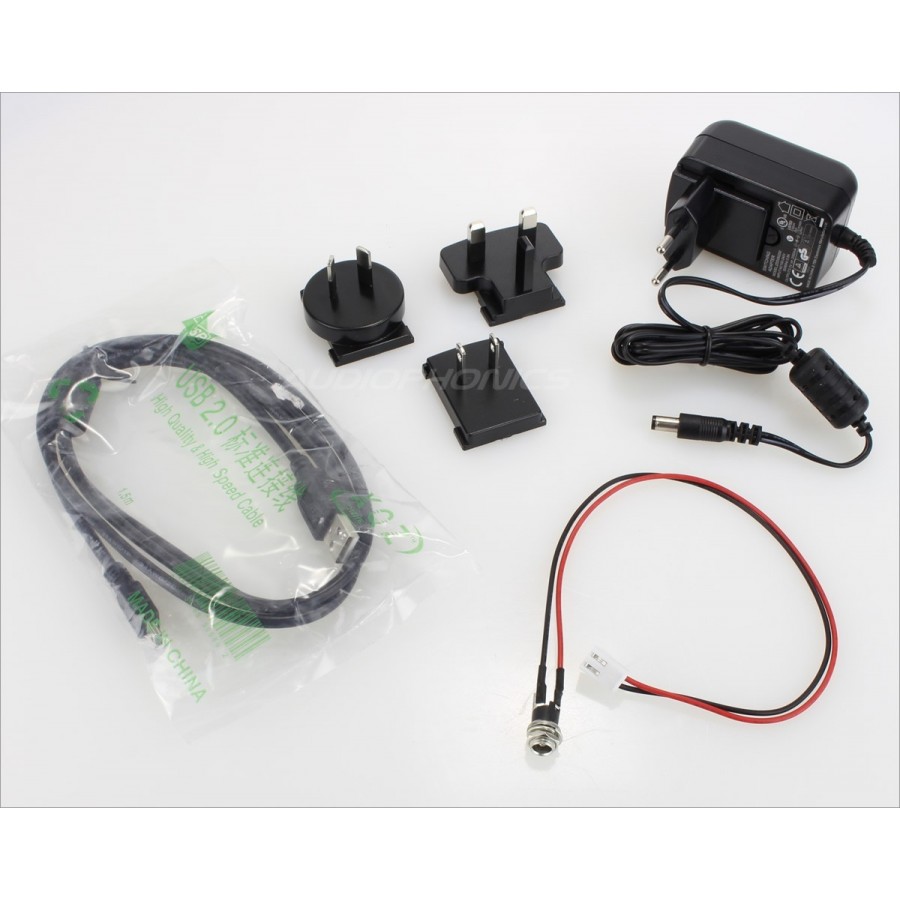

Are delivered:/ Strong>

• 1 x mini-USB cable
• 1 x power supply 12V 3A + DC connector
• Screw terminals for inputs and outputs

DOWNLOAD A FREE PLUG-IN FOR THE MINIDSP 2X8:

For a full use of your MiniDSP product, it is necessary to have a plug-in.
There are several plug-ins available for download right here.
When receiving the product, you will receive in your package the method to follow to download the plug-in of your choice free of charge.
