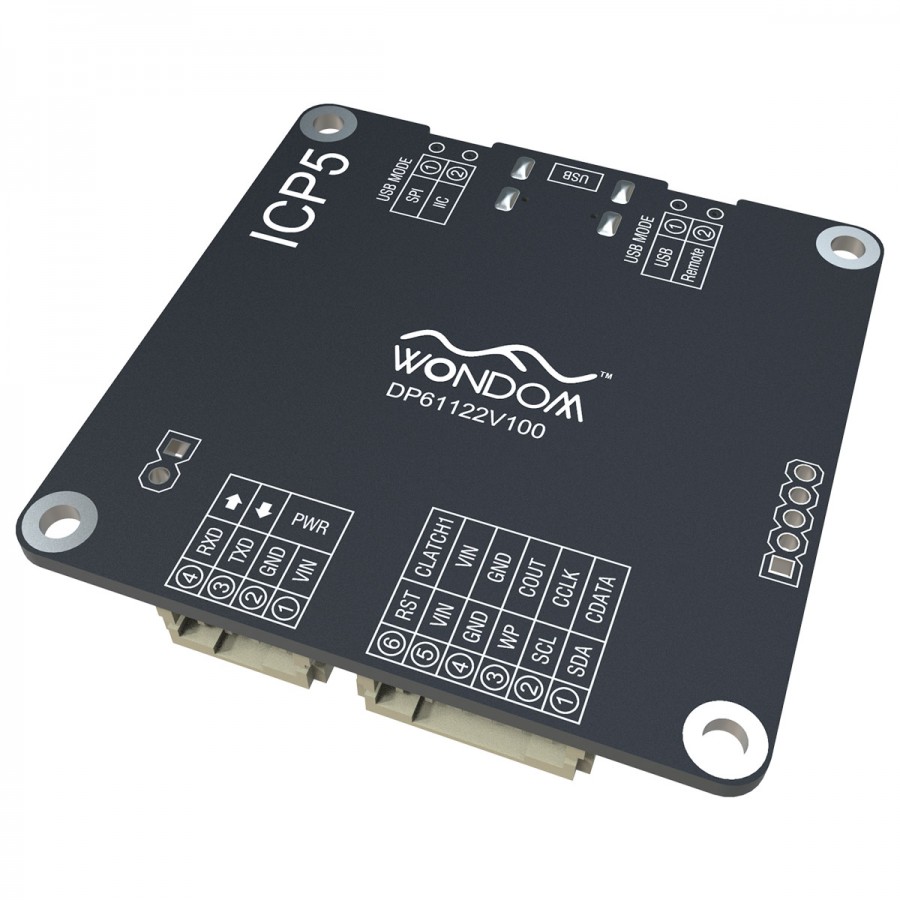

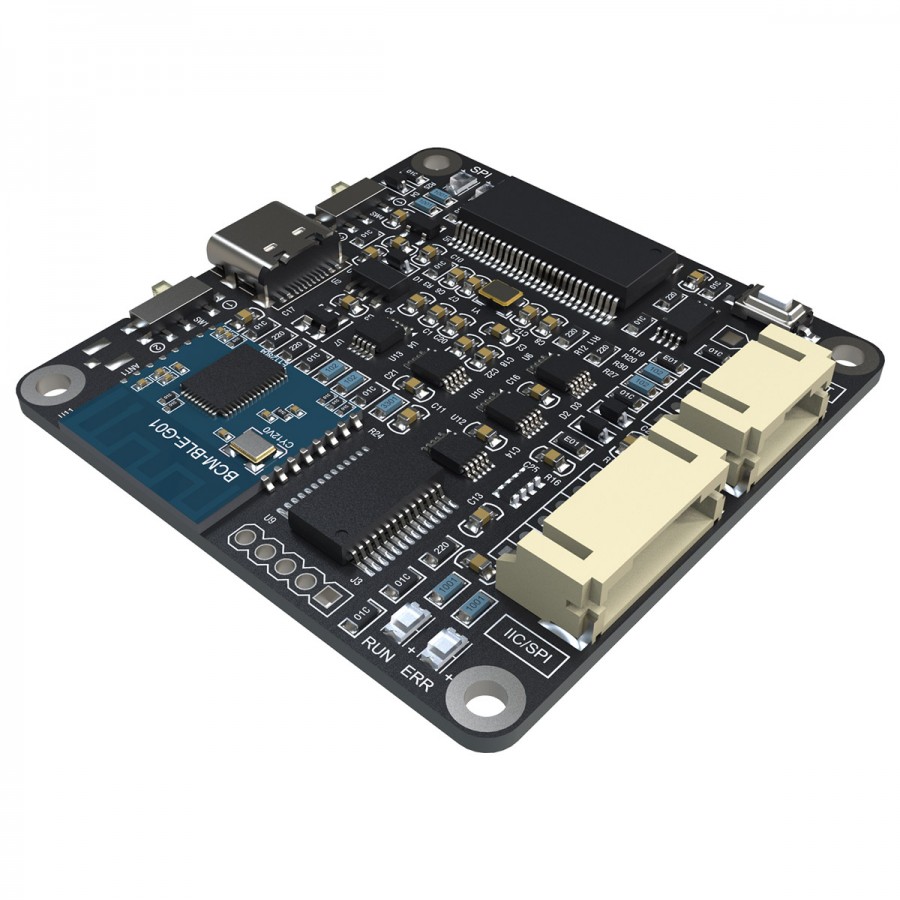

WONDOM ICP5 Programmer for JAB USB UART Interface Bluetooth App

The Wondom ICP5 is the latest addition to the Wondom ICP range, with USB UART functionality for control via a PC interface and Bluetooth for control from a mobile application. It is designed to provide an accessible and easy-to-use environment for the control and programming of Wondom JAB systems.

Average votes for this product
3.7 / 5
  Based on 3 customers reviews.

By buying this product you get 2 loyalty points


Reference : 15703
New product

24,90 €tax incl.

20,75 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 04-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Wondom ICP5

Programmer for JAB USB UART Interface Bluetooth App

Wondom ICP5 Programmateur pour JAB Interface USB UART Application Bluetooth

The Wondom ICP5 is the latest addition to the Wondom ICP range, with USB UART functionality for control via a PC interface and Bluetooth for control from a mobile application. It is designed to provide an accessible and easy-to-use environment for the control and programming of Wondom JAB systems.

The ICP5 is a versatile programming board for Wondom products with integrated DSP. It offers various functions such as programming with SigmaStudio, control via a mobile application or a graphical interface on a PC. In addition, it supports online firmware updates. Thanks to its automatic identification system, target products are automatically recognized once connected.

A self-booting EEPROM is integrated into the ICP5 to operate the board independently of the SigmaStudio software.

With the on-board USB UART, the ICP5 can work with a graphical interface on a PC, allowing to adjust frequency, volume, gain, spatialization, equalizers and many other parameters to achieve the desired sound reproduction.

For now, the PC GUI is only available with JAB2 V2. The ICP5 firmware will eventually receive updates to extend its compatibility with other JAB systems.



The ICP5 also benefits from a Bluetooth function, allowing it to be controlled directly from a dedicated mobile application.

No application is available at the moment. Wondom will work on the design of this one after the development of all the planned PC interfaces.

Wondom ICP5 Programmateur pour JAB Interface USB UART Application Bluetooth

Compatibility table

DSP ModelICP ModelSigmaStudio programmingControl AppPC User interface
APM2ICP1
ICP3
ICP5Availability : end of july 2022Availability : end of november
JAB2v2ICP1
ICP3
ICP5
JAB3ICP1
ICP3
ICP5Availability : end of june 2022Availability : mid-november
JAB3+ICP1
ICP3
ICP5Availability : end of may 2022Availability : end of october
JAB4ICP1
ICP3
ICP5Availability : end of april 2022Availability : mid-october
JAB5ICP1
ICP3
ICP5Availability : end of march 2022Availability : end of september

Technical characteristics

Specifications
Product typeJAB programmer
Control interfaceSigma Studio
PC user interface (see compatibility table)
Mobile app (see compatibility table)
General
Supply voltage5V
Dimensions50.8 x 50.8mm
Package1x ICP5 programmer
1x PH 6 poles cable
1x PH 4 poles cable

Data sheet
InputPCB Connector
OutputPCB Connector

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
3.7 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Essential to truly set up your Wondom JAB amps!
The amps work fine out of the box, but you get an almost infinite amount of options if you use the programmer, it is easy to get lost in SigmaStudio exploring all the different modules!

It is in my opinion an essential addition to any Wondom or Dayton Audio DSP/amp with DSP!

Note: with the JAB5 you won't have the Miumax Bluetooth phone app as an option, but the Miumax/Wondom PC UI desktop program works perfectly with most of them

SigmaStudio works with all of the DSP amps with an ADAU chip
 (0)
 (0)
This review has been posted for WONDOM ICP5 Programmer for JAB USB UART Interface Bluetooth App
Note :
 4/5
Date :
fonctionne avec JAB2 V2
Une fois qu'on suit à la lettre dans le mode d'emploi la partie dédiée au fonctionnement avec le JAB2 V2 cela fonctionne.
Les réglages fait sur le DSP sont biens conservés sur la carte JAB2 même quand la carte ICP5 est débranchée. Je n'ai pas encore testé la qualité des filtres mais un premier essais en equaliseur 10 bandes a provoqué un bruit haute fréquence. Tout est rentré dans l'ordre en remettant les réglages par défaut, je reposterai un avis suivant ce que j'obtient en testant un peu plus les fonctions.
 (0)
 (0)
This review has been posted for WONDOM ICP5 Programmer for JAB USB UART Interface Bluetooth App
Note :
 2/5
Date :
Décevant
Parfait pour utiliser Miumax PC et ainsi régler les filtres comme on veut et facilement MAIS il faut laisser brancher l'ICP5 à votre JAB ou APM2 donc il vous faudra acheter autant d'ICP5 que de module de filtrage ce qui est complètement débile.... Autant programmer directement sur Sigma Studio. Sauf que Sigma Studio ne reconnait pas l'ICP5 mais juste mon ICP3.
 (0)
 (0)
This review has been posted for WONDOM ICP5 Programmer for JAB USB UART Interface Bluetooth App
