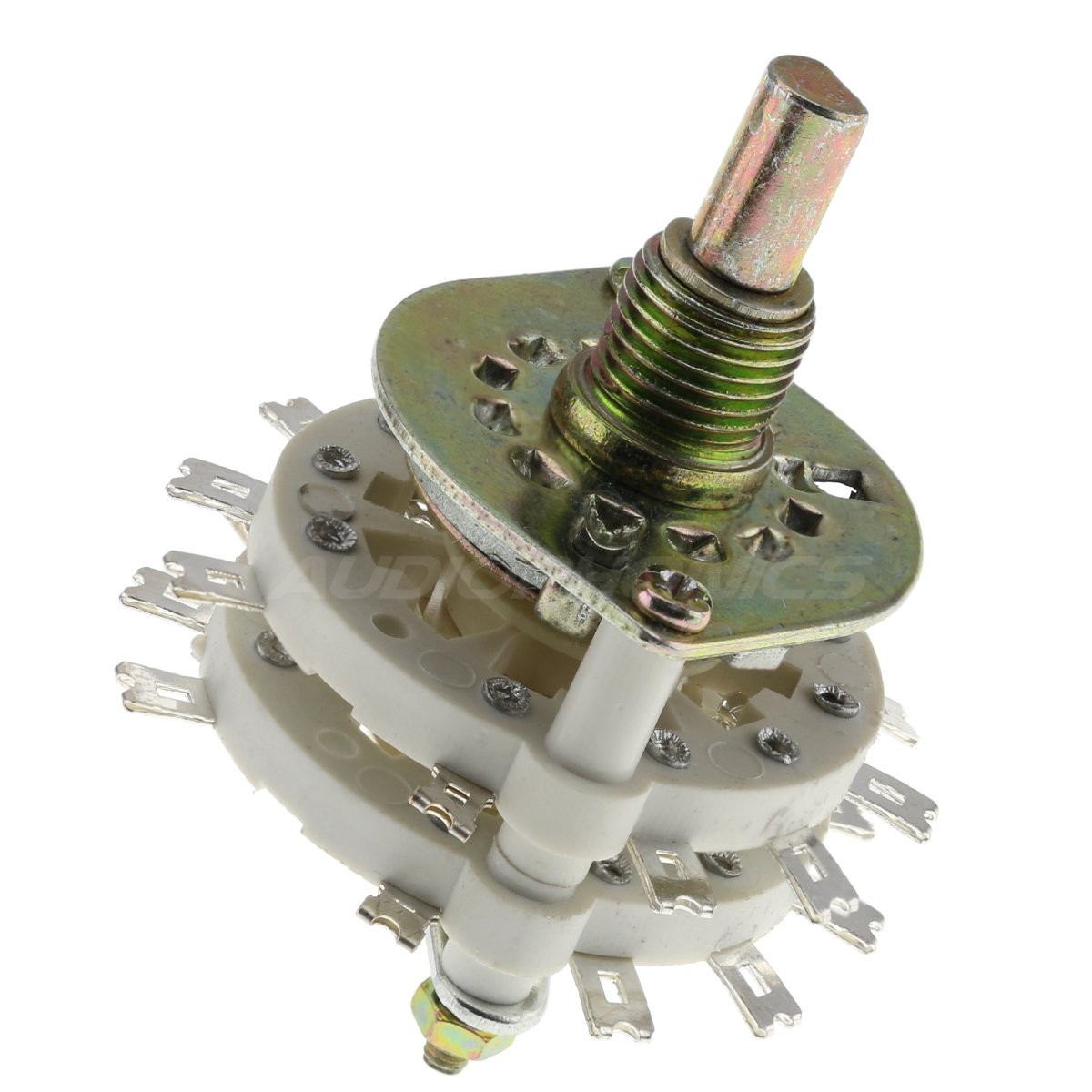

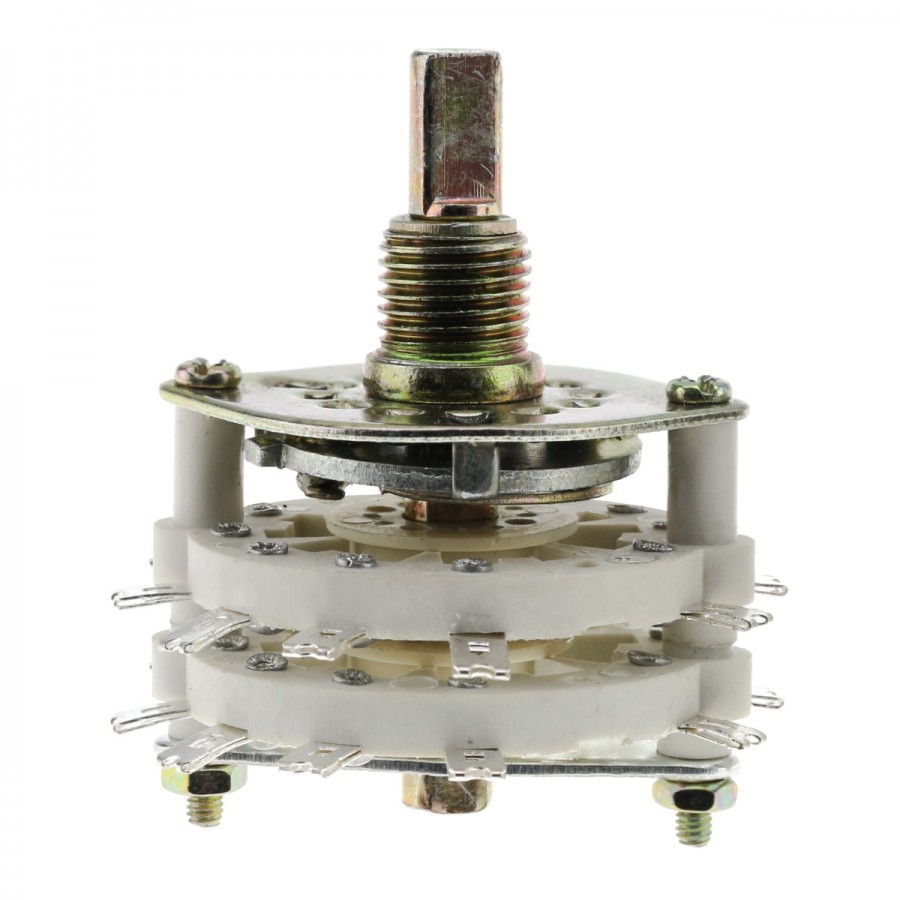

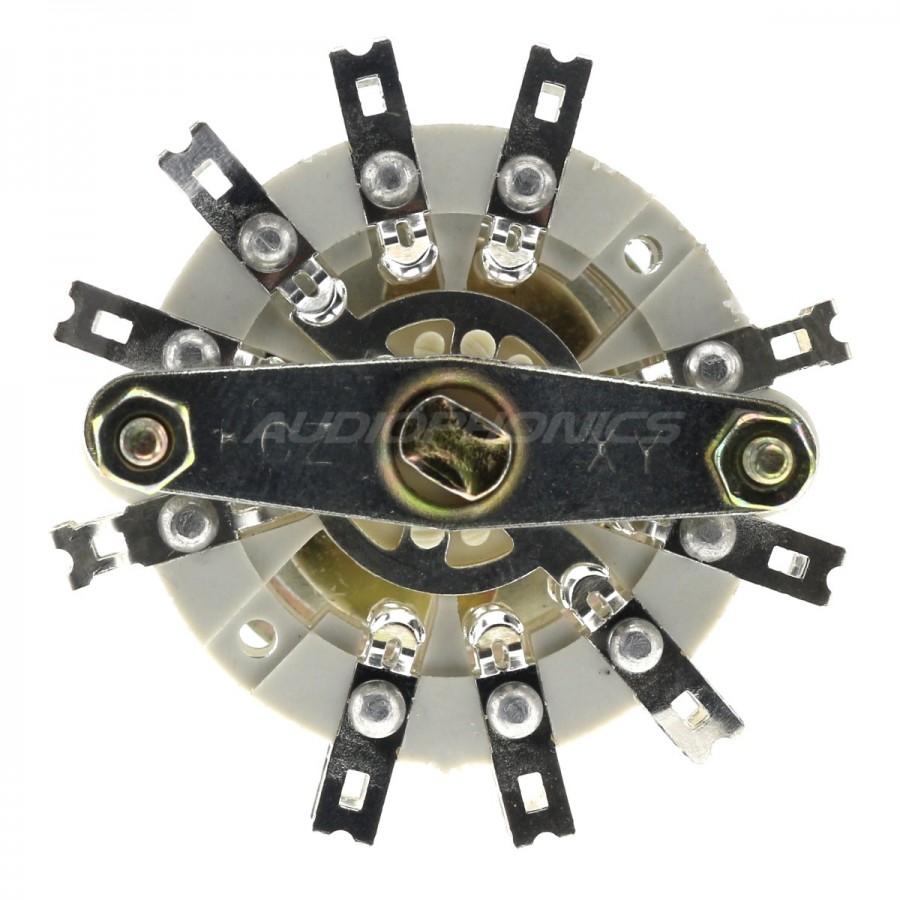

This 4-pole x3 position mechanical selector allows to switch several signals to a common point. It works in both directions, the IN can also be an OUT. The notches are relatively hard, we advise you to use it with a 40mm diameter knob. It is possible to lubricate the contacts to facilitate the rotation.

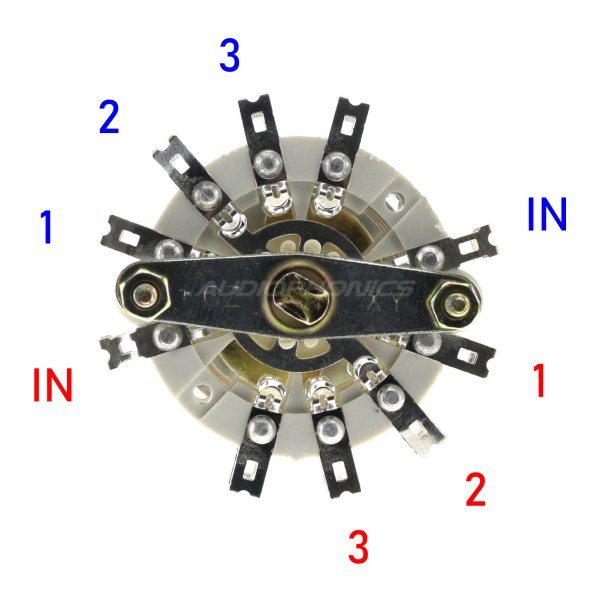

This connection pattern is split on two independent rows to form 4 Inputs.
| Specifications | |
|---|---|
| Inputs | x4 |
| Positions | x3 |
| Drilling diameter | 9.7mmØ |
| width selector | 45 mm (with pins) 38 mm (without pins) |
| Shaft Diameter | 6mmØ |
| Shaft length | 11mm |
| Axis type | flat |
| Weight | 45g |
