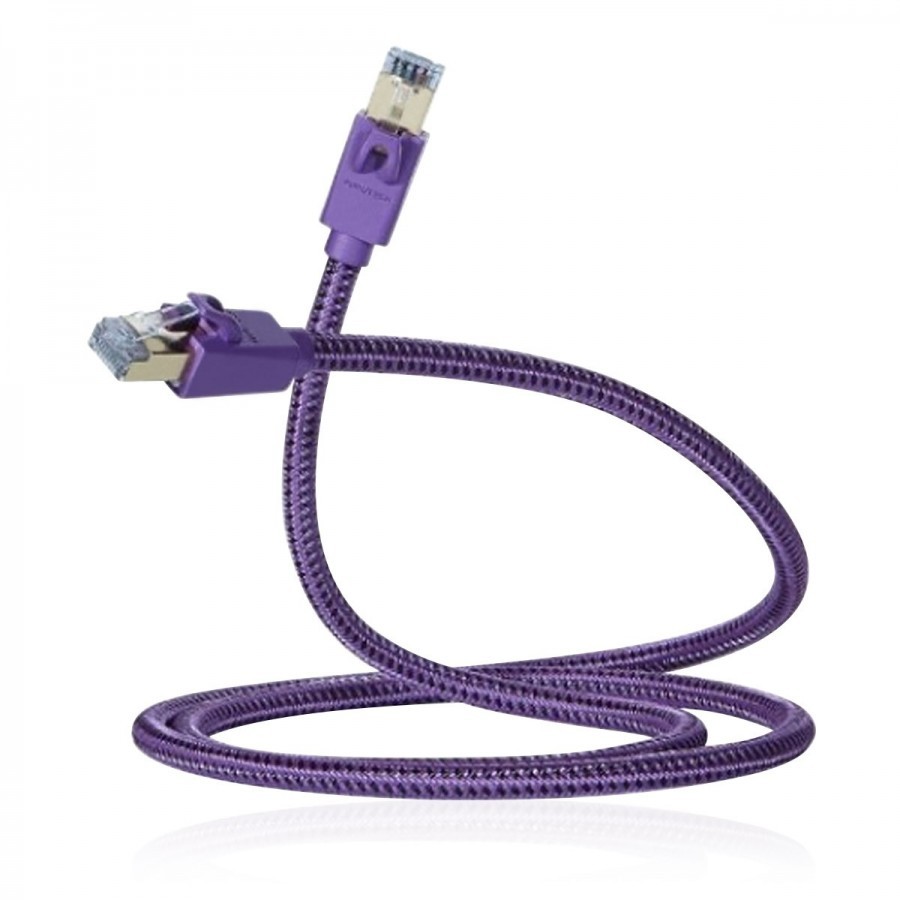

FURUTECH LAN-8 NCF
Ethernet RJ45 Cat8 Cable S/FTP 7.5m
Furutech LAN-8 NCF is a beautifully designed Category 8 RJ45 Ethernet cable with S/FTP shielding for high-speed signal transfer.
Furutech Nano Crystal² Formula
The connectors of this cable use NCF technology. Integrated in a selection of Furutech products, NCF is based on a special crystalline material with two active properties. First, NCF generates negative ions that eliminate static electricity. Secondly, it converts thermal energy into infrared. Furutech combines this material with Ceramic nano particles and Carbon powder for their piezoelectric damping properties. Furutech thus obtains the optimal electrical and mechanical damping material.
Category 8
The new Ethernet Category 8 specification delivers improved performance. This includes improvements in crosstalk and noise compared to Category 7, with additional shielding for each wire pair and for the cable as a whole. In addition to the extra shielding, LAN-8 NCF features twisted pairs with a higher number of twists per unit length for increased RF shielding and cross-talk protection.
On the speed side, the Category 8 allows the use of 40 Gigabit Ethernet and frequencies up to 2000MHz. Resistant to interference, it offers a fast and stable network environment.
High-end material
The LAN-8 NCF cable uses high quality materials to ensure the best performance. It features high purity OCC copper conductors with silver plating and a cross section of 0.205mm² (24AWG). The cable also benefits from a triple shielding with Aluminium foil and braided copper for maximum noise isolation.
The connectors are treated with the cryogenic non-magnetic α (Alpha) process and gold plated, thus using the brand's NCF technology.
Finally, the cable is covered with a UL/CL3 and RoHS certified PVC jacket and then covered with a braided nylon jacket.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Ethernet RJ45 cable |
| Length | 7.5m |
| Connectors | 2x Male RJ45 (8P8C) |
| Ethernet type | Cat8 |
| Conductors | Silver plated OCC Copper Cryogenic treatment α (Alpha) |
| Section | 0.205mm² (24AWG) |
| Connectors palting | Gold 24g |
| Connectors body | NCF |
| Triple shielding | Feuille d'Aluminium Cuivre tressé |
| Insulation | S/FTP |
| Cable diameter | Ø7mm (±0.1mm) |
| Color | Purple |
| Length (m) | 7.5 |
| Shielding | Yes |
| Section (mm²) | 0.205 |
| Connector | RJ45 |
| Conductors material (Cable) | Copper |
| Conductors Plating (Cable) | Silver |
