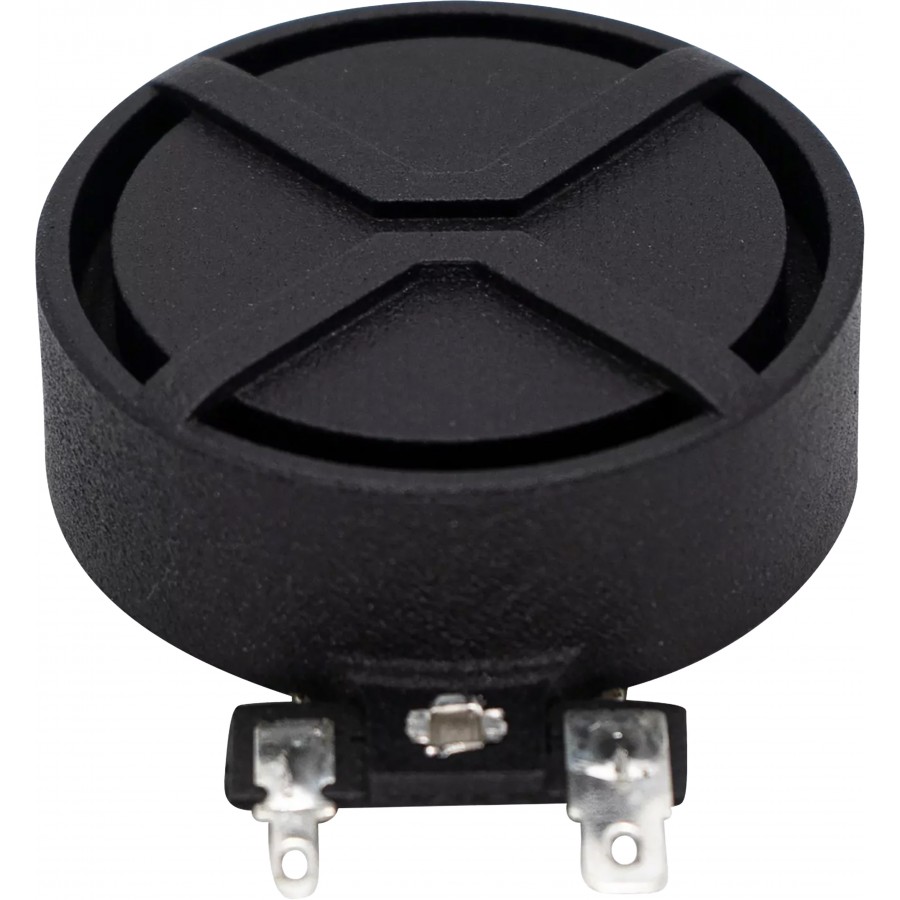

XCITE XT32-8 Speaker Driver Exciter 20W 8Ω 35Hz-17kHz
The XCITE XT32-8 is a exciter driver featuring a unique combination of long excursion and low inductance, guaranteeing vibrations with the lowest distortion across the entire frequency range. It is equipped with a dual neodymium magnet offering excellent power and precision. The XT32-8 is extremely reliable, designed to avoid level drops and equipped with a heat-resistant, low-loss aramid spider, guaranteeing consistent performance, no matter how hard you use it.
XCITE XT32-8 : A precise and powerful driver
Designed with a symmetrical force factor and high flux design, the XT32-8 incorporates a pair of neodymium magnets, guaranteeing dynamic, distortion-free sound on any surface. The combination of an 8-ohm coil and neodymium magnets increases sensitivity while saving power, making it perfect for small and medium-sized amplifiers.
XCITE XT32-8 : A very low distortion driver
Designed for minimal distortion, the XT32-8 guarantees an authentic audio experience. By reducing variations in force factor, stiffness and inductivity, it limits harmonic and intermodulation distortion. Enjoy your favourite music, films and games with unrivalled precision and clarity.
XCITE XT32-8 : A driver built to last
The XT32-8 is designed to be your trusted audio companion for years to come. Featuring an aramid spider and a design that prevents movement greater than 3.5mm, the XT32-8 is designed to deliver consistent performance in any condition. It comes with pre-applied 3M VHB adhesive for easy installation.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Exciter |
| Frequency response | 35Hz - 17kHz |
| Impedance | 8 Ohms |
| Power handling | RMS : 20W Max : 40W |
| Nominal diameter | Ø32mm |
| THIELE & SMALL parameters | |
|---|---|
| Voice coil inductance (Le) | 0.21mH |
| Resonant frequency (Fs) | Voice coil : 305Hz Magnet : 39.3 |
| DC resistance (Re) | 7.22Ω |
| Moving mass + air charge (Mms) | Voice coil : 2.22g Magnet : 131g |
| Max excursion (Xmax) | Linear : ± 1.6mm Mechanical : ± 3.5mm |
| Mechanical resistance suspension (Rms) | Voice coil : 0.20Kg/s Magnet : 1.58Kg/s |
| Mechanical quality factor (Qsm) | Voice coil : 25.7 Magnet : 20.8 |
| Electrical quality factor (Qes) | Voice coil : 1.29 Magnet : 7.27 |
| Total quality factor (Qts) | Voice coil : 1.23 Magnet : 5.39 |
| General | |
|---|---|
| Weight | 133g |
| Package | 1x XCITE XT32-8 |
| Speaker Power (W RMS) | 20.0 |
| Speaker Type | Exciter |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 36.0 |
| Diaphragm type | N/A |
| Efficiency / Sensitivity (dB) | N/A |
| Max Linear Excursion (Xmax) (mm) | 3.5 |
| Lowest frequency (Hz) | 35 |
| Highest frequency (Hz) | 17000 |
