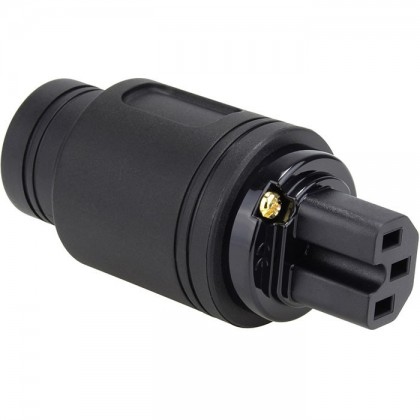

ELECAUDIO RI-23GB IEC Power Plug Fiber Glass 24K Gold Plated

These Hi-Fi connectors have been developed in France to be used with the most sophisticated cables.

The body has a modern and exclusive design, which is now molded under high pressure.
Compound 30% fiberglass and 66% Nylon it can withstand industrial constraints. (High temperature, crushing, scratches).

We could consider this connector as a hybrid, an industrial grade adapted to the requirements of Hi-Fi use.

Conjugated with a thickness of 4mm this material offers it a rigidity and a resistance to the vibrations and resonances very important.

Tightening of the cable is now carried out with a rotating ring which adapts to a diameter from 13.5 to 16.5mm . (diameter reducer available in the accessories below)
The advantage of this ring in addition to a very effective tightening is that the cable remains centered and aligned whatever its diameter.

Contacts arenon-magnetic copper alloy in a single nested piece, on which is applied a plating Gold 24K

The input diameter of the contacts allows compatibility with all the cables sector of the market. (15mm²)

Features:/ Strong>

• Body: 30% Glass Fiber and 66% Nylon
• cunt(Phillips H2 cruciform)
• Plating:Gold 24k

• Maximum Driver Section:15mm² (4.5mm of Diameter)
• Cable Diameter: from 13.5mm to 16.5mm

• Voltage / Voltage Rating: 16A / 250V
• Overall Length: 95 mm
• Diameter: 42 mm
• Weight: 76 g
