WATTGATE 320i HC Connector IEC C19 US Format Cryo Treatment Ø16mm Transparent
By buying this product you get 3 loyalty points
![[GRADE S] NEOTECH NEI-3004 Symmetrical modulation cable UP-OCC Ø 8.5mm 1m](https://www.audiophonics.fr/65235-thumb_default/neotech-nei-3004-symmetrical-modulation-cable-up-occ-o-85mm.jpg)
![[GRADE A] LUDIC KRATOS Filtered Power Distributor 8 Filter Outlets Schuko Black](https://www.audiophonics.fr/65221-thumb_default/ludic-kratos-8-filtrer.jpg)
![[GRADE A] SHANLING Protective Cover Leatherette for Shanling H2 Marron](https://www.audiophonics.fr/65199-thumb_default/shanling-protective-cover-leatherette-for-shanling-h2-brown.jpg)
![[GRADE B] TOPPING DX9 DAC AK4499EQ Headphone Amplifier NFCA Bluetooth 5.1 AptX LDAC 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/65179-thumb_default/topping-dx9-dac-ak4499eq-headphone-amplifier-nfca-bluetooth-51-aptx-ldac-32bit-768khz-dsd512-black.jpg)
![[GRADE A] SHANLING H2 Portable DAC CS43198 Headphone Amplifier Bluetooth 5.0 XMOS 32bit 384kHz DSD256 Silver](https://www.audiophonics.fr/65194-thumb_default/shanling-h2-silver.jpg)

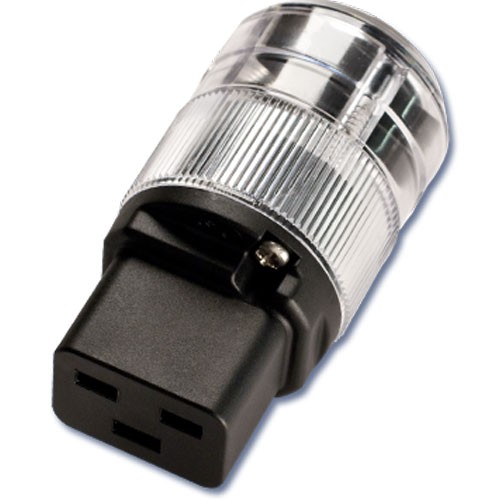

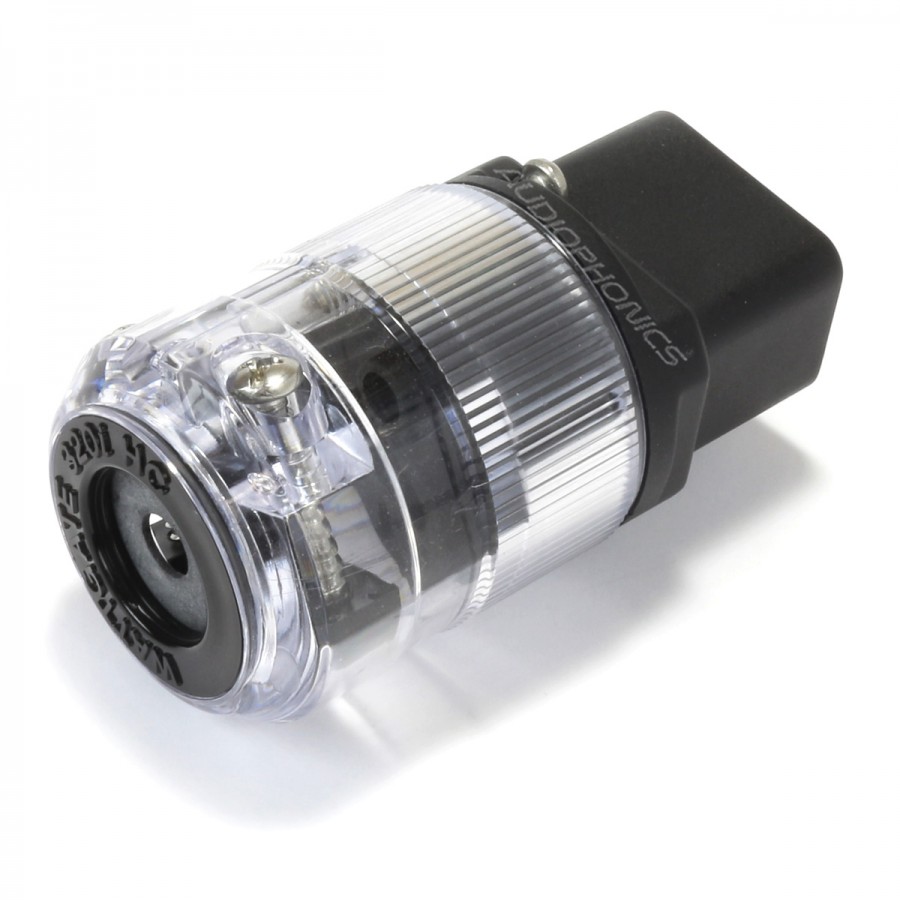

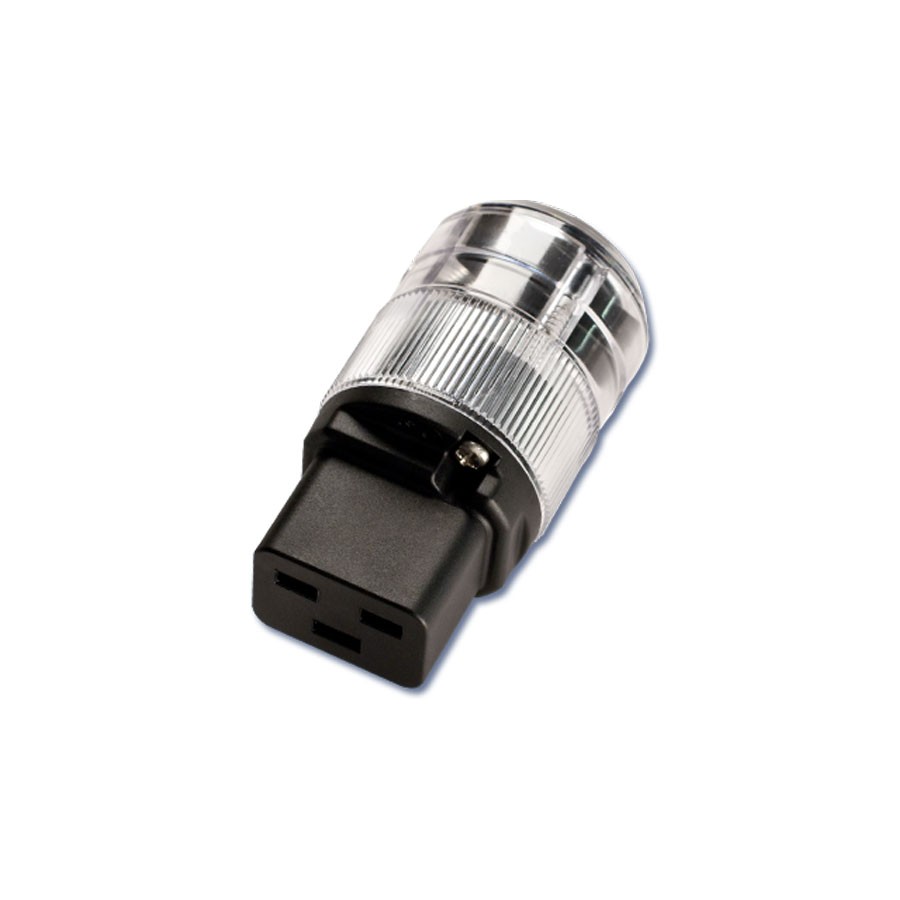

Wattgate 320i HC
IEC C19 Connector US Format Cryo Treatment Ø 16mm Transparent
The IEC Wattgate 320i HC connector is a simple but extremely well designed model. This is an ideal model for anyone who wants to create high-performance power cables with IEC C19 (US Format) connectors. The Perma Lock design locks the screw threads so that they cannot move due to vibration or heat.
Efficient and performant
A convenient connector
The connector is equipped with screw terminals, allowing quick and easy assembly of cables, not requiring soldering. A simple cross-head screwdriver is enough to fix your cables on the 3 contacts of the connector.
Smart design
The connector design maximizes contact for very good conductivity and effective cable retention.
Strong handle
The back of the connector benefits from a cable clamp adaptable according to the diameter used. This holds the cable securely in place to protect it during handling. The connector accepts cables with a maximum diameter of 16mm and a cross-section of 10 to 16AWG.
Cryo treatment
This Wattgate connector benefits from the Cryo treatment developed by the brand, the Deep Cryogenic Treatment (DCT) method. This is a cryogenic treatment with nitrogen that must follow a very specific cycle in order to increase conductivity. In this method, the brand takes care never to put in direct contact the part treated with nitrogen in order to avoid thermal shocks. This process takes 4 to 5 days to achieve an exceptional result.
Dimensions
Technical characteristics
| Specifications | |
|---|---|
| Connector type | IEC C19 |
| Max cable diameter | 16mm |
| Acceptable cable section | 10 to 16AWG |
| Current / Voltage | 125V AC 20A / 250V AC 20A |
| Vody material | Polycarbonate & Nylon |
| Cryo treatment | Yes - DCT |
| Connection type | To screw |
| Color | Transparent |
| Dimensions | 7.3 x 3.8cm |
