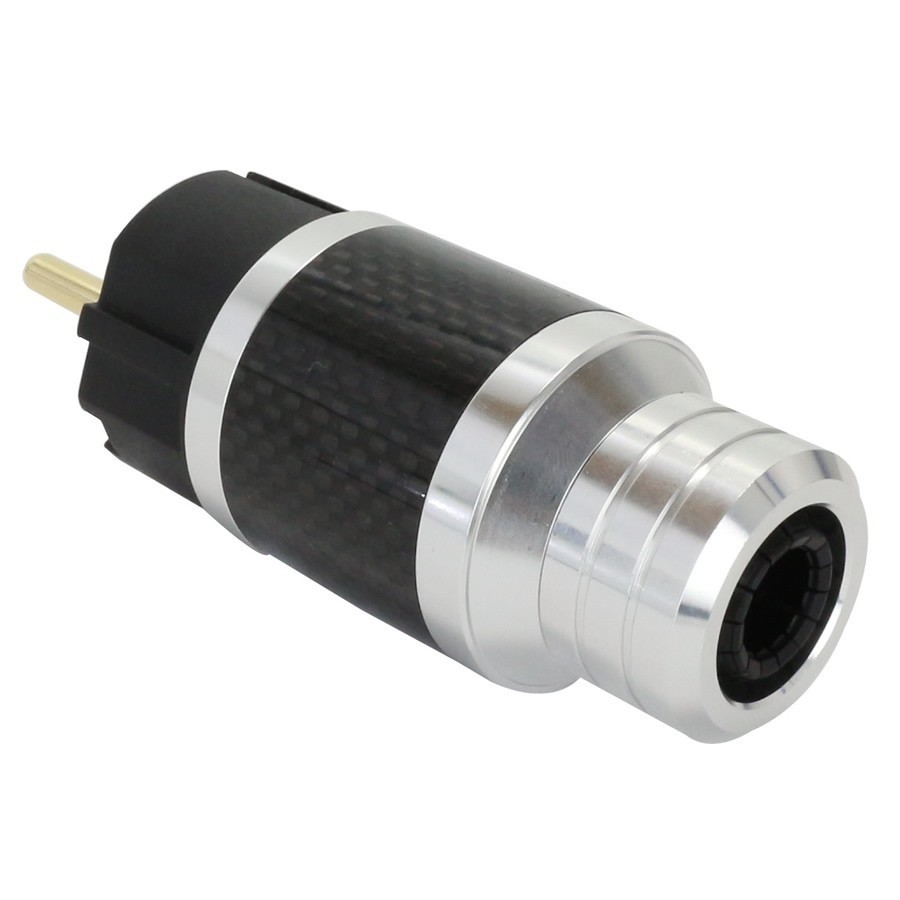

The high-end Schuko plug from ELECAUDIO, the PS-26GC is distinguished at first glance by its body Aluminum and carbon plating with impeccable finishing and ideal proportions. This new chassis allows to receive the most sophisticated cables whose diameter often proves incompatible with the conventional outlets.

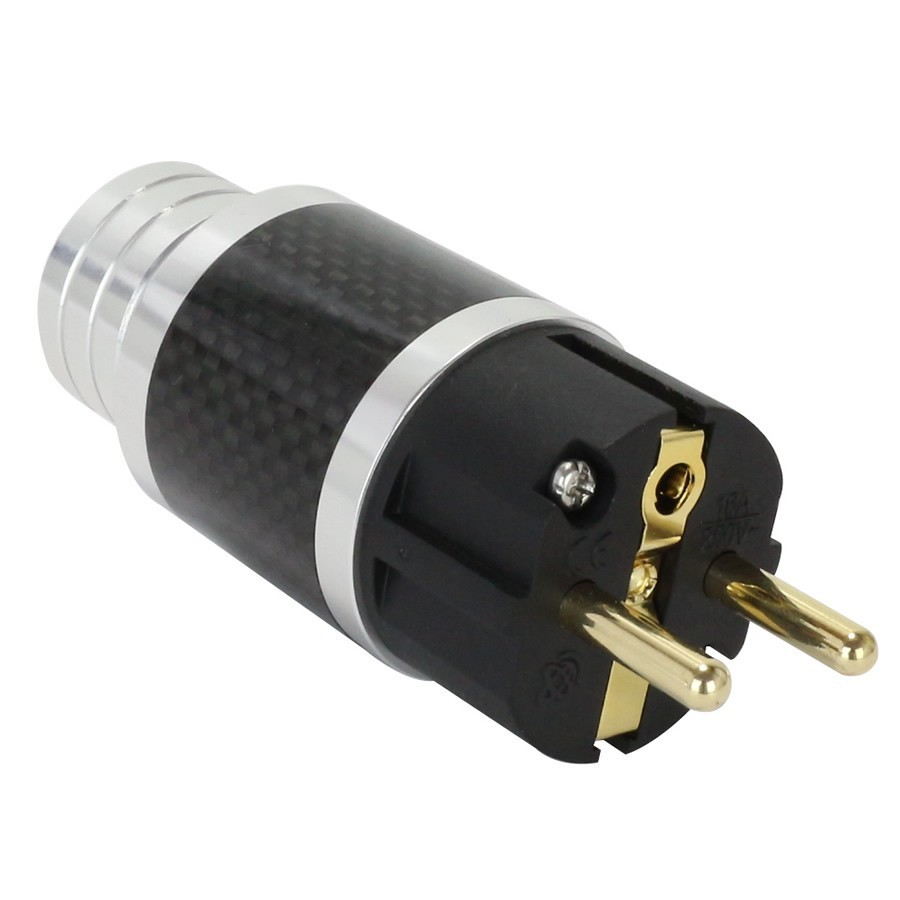

The head of the connector takes advantage of an alloy Fiberglass / Nylon for its dielectric and mechanical qualities. Contacts are non-magnetic copper alloy in one piece and cut in the mass, on which is applied a plating Gold 24K.
Its integrated clamping ring and anti-tear reducer allow the PS-26GC to receive and maintain well-centered cables of large section.
All metal parts, including the contact and ground poles, have benefited from a plating Gold 24k over 3μ thick.
This plating present on the whole surface of the contacts is more resistant and better conductor than the plating Standard gold, thus the PS-24GC is all the more immunized against any form of oxidation.

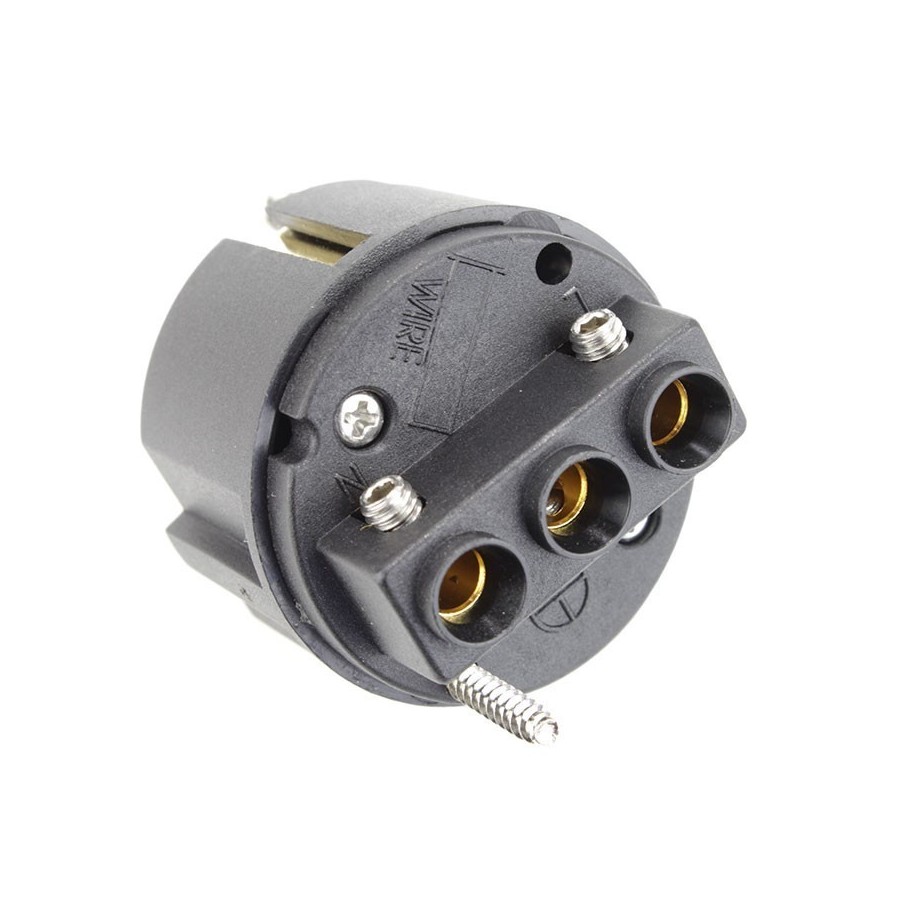

The internal connection terminals also deserve attention: They are equipped with large fixing screws and therefore do not require any soldering, they are able to receive conductors of large diameter which they provide a maintis firm on a particularly wide contact surface.
Finally, we will appreciate the small diagram directly engraved within the socket, which gives information on the optimum length of cable to be stripped. Since you are told that nothing has been left to chance ...
Specifications:
- Body: Aluminum + Carbon plating
- Head: Alloy Fiberglass and Nylon
- Schuko plugs 3 Screw-in contacts (BTR screws 2mm)
- Plating:Or 24k 3μ
- Maximum Driver Section: 16mm²(4.5mm of Diameter)
- Cable Diameter: from 12.5mm to 16.5mm(up to 19.8 mm without ring)
- Reducer available separately for cables of small sections (7.5 to 12.6 mm)
- Voltage / Voltage Rating: 16A / 250V
- Overall Length: 103 mm
- Diameter: 40 mm
- Weight: 124g
PS-26GC with reducerPS-26GC without reducer
Cable schematics
