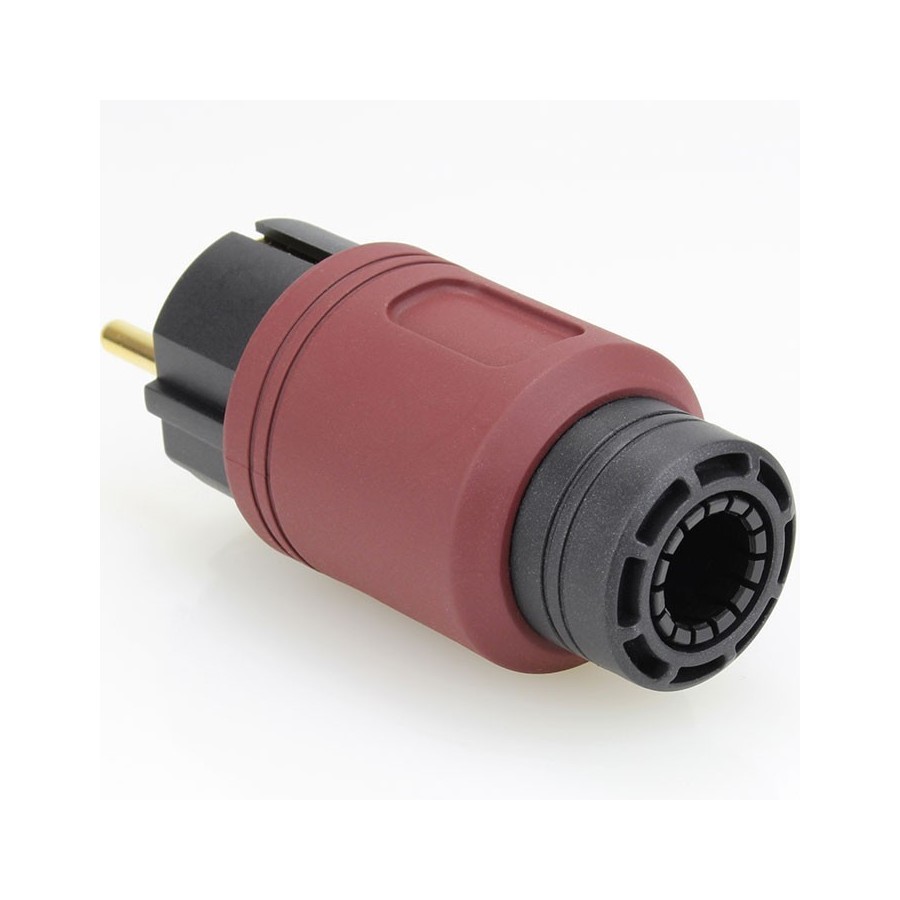

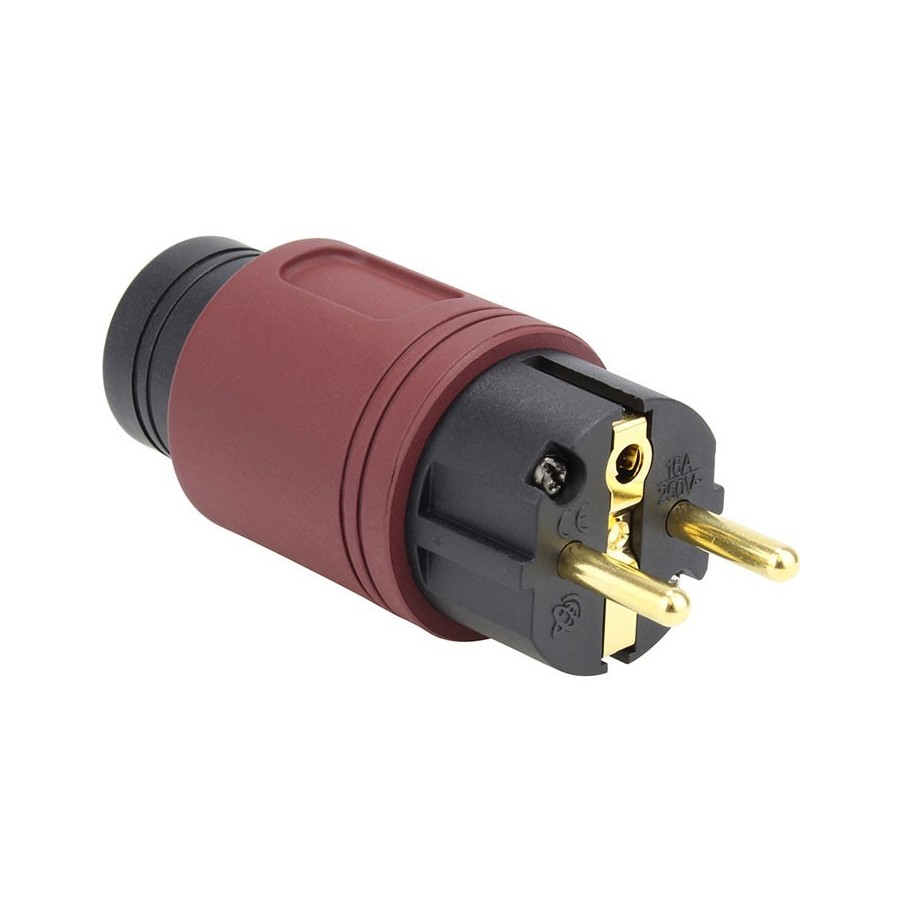

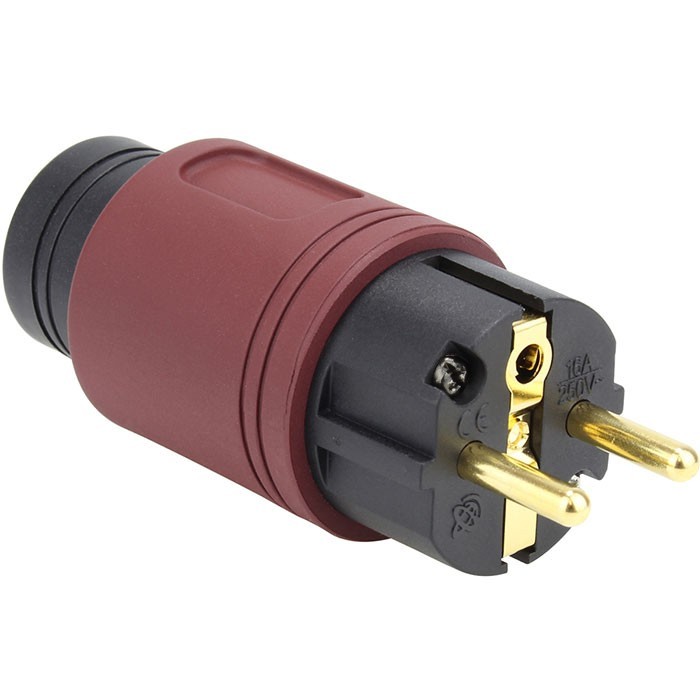

ELECAUDIO RS-34GW Schuko Type E/F Power Connector 24k Gold / SIlver Plated Ø16.5mm Bordeaux

These Hi-Fi power connectors where developed in France to be used with the most sophisticated power cables in the market.

The body with an exclusive and modern design was built with high pressure. His composition, 30% Fiber Glass, and 66% Nylon, can even support industrial environments, resistant to high temperatures, impacts and crushing.

We can even call these power connectors as a hybrid, an industrial quality adapted to a Hi-Fi use.

With his uniform 4mm body injection for effective vibration and resonance dampening you can use it in many ways.

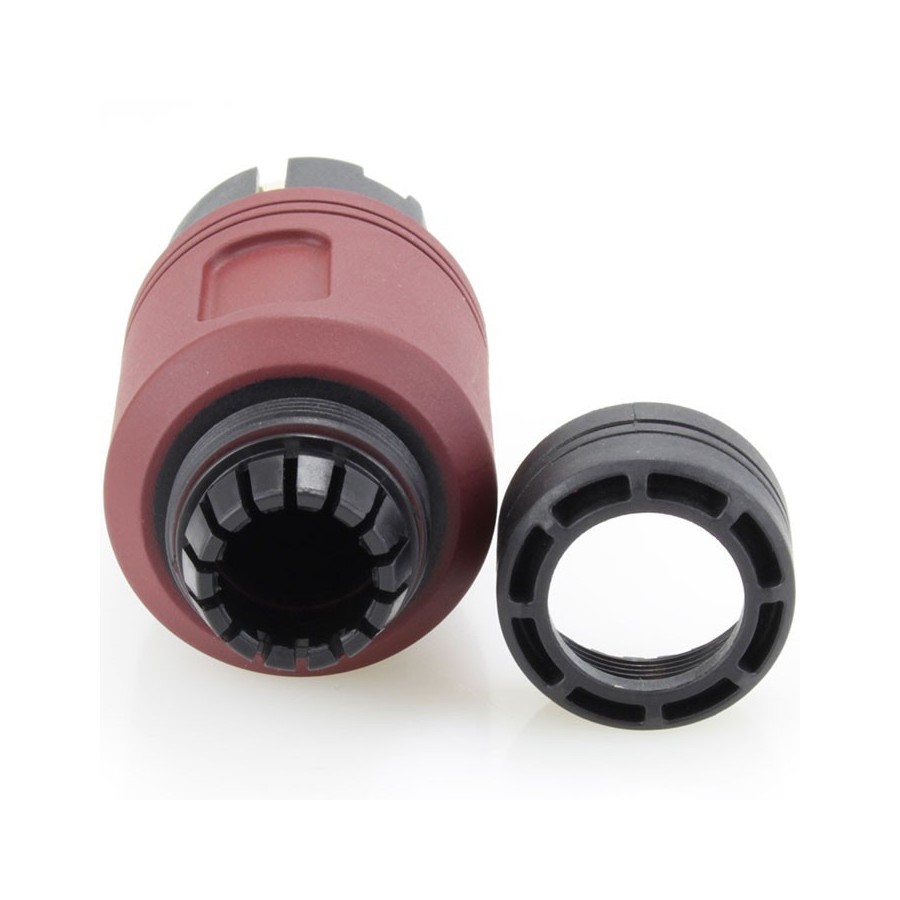

Thanks to a twist grip clinch claw for cables diameters from 13.5mm to 16.5mm you can have a wide option of cable diameters to create the perfect Hi-Fi grade power cable. This clinch claw will allow the cable to stay always centered no matter the cable diameter. (Diameter Reducer for ELECAUDIO RS-24, RS-34, et RI-24 Connectors is avaible lower in this page)

All the connectors are screw Stainless steel for maximum strength.

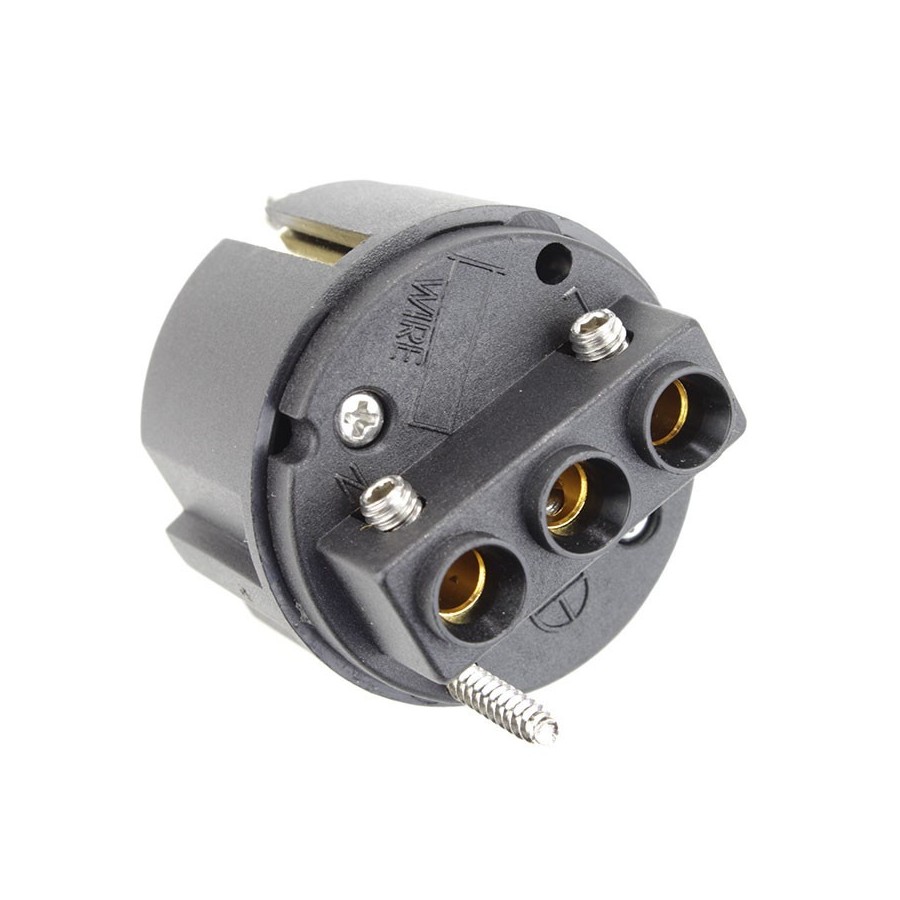

The head of the connector also benefits of the alloy Fiberglass / Nylon for its dielectric and mechanical qualities. Contacts are copper alloy non-magnetic in one piece and machined from solid, which is applied on Silver/24K gold plating.

Specifications:

•    Body : 30% Glass Fiber & à 66% Nylon
•    Screws: (BTR 2mm screws)
•    Plated: Silver/ Gold 24k
•    Maximum conductors section: 15mm² (4.5mm diameter)
•    Cable diameter : de 13.5mm à 16.5mm
•    Tension/Voltage : 16A / 250V
•    Total length: 103.7 mm
•    Diameter: 42 mm
•    Weight : 92g
