WATTGATE 360 EVO Connector Schuko Cryo Treatment Ø19mm Transparent

Wattgate, the international reference manufacturer of mains connectors, offers cryogenically treated Schuko connectors for improved conductivity. This robust fiberglass chassis can accommodate the most sophisticated cables whose diameter is often incompatible with conventional power outlets.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Reference : 9540
New product

36,90 €tax incl.

30,75 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Wattgate 360 EVO

Connector Schuko Gold plated Cryo Treatment Ø 19mm Transparent

Connecteur Schuko Traitement Cryo Ø 19mm Transparent

Wattgate, the international reference manufacturer of mains connectors, offers cryogenically treated Schuko connectors for improved conductivity. This robust fiberglass chassis can accommodate the most sophisticated cables whose diameter is often incompatible with conventional power outlets.

With an insertion ring limiting the diameter to 19mm, and a cable clamp to complete the integration, the 360 Evo can easily accommodate cables with a large cross-section. The internal connection terminals also deserve attention: equipped with large fixing screws, and therefore not requiring any soldering, they are capable of receiving conductors of large diameter which they ensure a firm hold over a particularly large contact surface. Finally, we will appreciate the small diagram directly engraved in the socket, which gives information on the optimal length of cable to strip.

Efficient and performant

Convenient connector

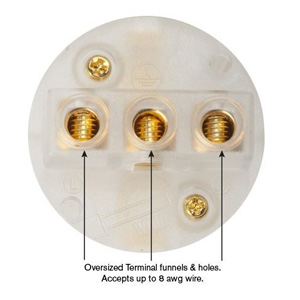

The connector contact points can accommodate large cables up to 8AWG. The screw system allows quick and easy assembly.


Smart design

The connector contacts are made of copper alloy and have large mounting holes, allowing cables up to 8AWG in diameter to be inserted.

Wattagate traitement cryo

Cryo treated

This Wattgate connector benefits from the Cryo treatment developed by the brand, the Deep Cryogenic Treatment (DCT) method. This is a cryogenic treatment with nitrogen that must follow a very specific cycle in order to increase conductivity. In this method, the brand takes care never to put in direct contact the part treated with nitrogen in order to avoid thermal shocks. This process takes 4 to 5 days to achieve an exceptional result.

Dimensions


Technical characteristics

Specifications
Connector typeSchuko
Max cable diameter19mm
PlatedGold
Acceptable cable section8 to 14AWG
Current / Voltage16A / 250V AC
Body materialPolycarbonate
Cryo treatmentYes - DCT
Connection typeTo screw
Non magnetic materialsYes
ColorTransparent
Dimensions7.5 x 3.8cm

Data sheet
ColorTransparent
Max cable diameter (mm)19.0
Mounting typeTo screw
ConnecticMale
ConnectorPLug CEE 7/7
