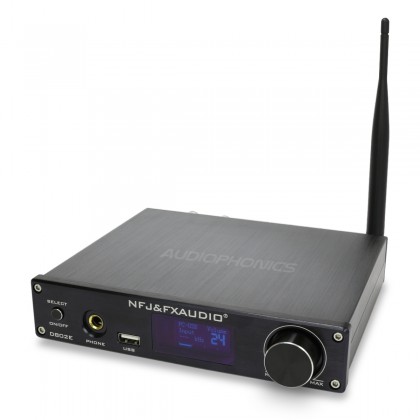

FX-AUDIO D802E FDA Amplifier STA326 Streamer WiFi DLNA Bluetooth 5.0 Multiroom 2x80W 4 Ohm Black

The E version of FDA D802 amplifiers from FX Audio now includes WiFI (DLNA) connections to complement Bluetooth connectivity.

Average votes for this product
5.0 / 5

By buying this product you get 17 loyalty points


Reference : 13355
New product

179,00 €tax incl.

149,17 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

D802E Full Digital Amplifier

FDA - 2x40W 8Ω - 24bit / 192kHz - STA326 / CS8422 / AK4452

D802E High fidelity FDA FX Audio


The E version of FX Audio D802 FDA amplifiers serie now includes WiFi connection (DLNA) to complement Bluetooth connectivity.

This amplifier class D "Full Digital" fulfills by itself the essential functions of a complete audio system such as : source selection, receiving and decoding audio stream, volume control and power amplification.

It offers many possibilities regarding connections and setup with allows it to fit very small places. With a Bluetooth / WiFi input, a OTG-compatible USB port, a Toslink input , a Coaxial input and n additionnal analog RCA input, one can easily plug in simultaneously a computer / digital player, a TV and a CD with the appropriate connectors .

Once the installation is complete, the system works with a remote control (included) or from the front panel interface to select the active source and send the amplified signal to the speakers.

D802E wireless multiroom

WiFi, DLNA & Multiroom

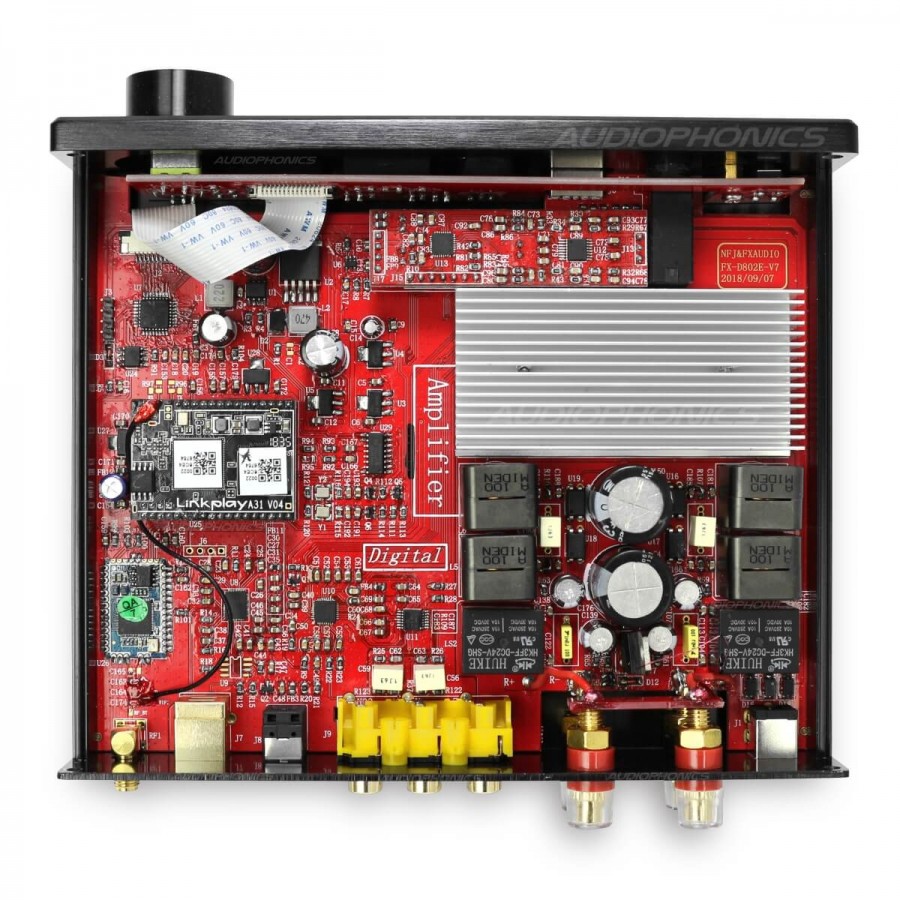

The D802E now includes a Linkplay A3 module. The latter offers WiFi connectivity that has been specially developed for audio use with native DLNA & Multiroom support.

This Wi-Fi connection with DLNA offers features similar to a Network Drive to the D802E, which can receive the audio stream from a simple application running on a smartphone / tablet.

Broadband connectivity (802.11b / g / n with a bandwidth of 300Mbps) authorizes the transfer of dematerialized audio streams up to 192kHz / 24-bit.

Finally, this feature is not exclusive to a single device, since this use may extend to multiroom installation. That is to say, one can install multiple D802E, each connected to its pair of passive speakersand control each of them or alltogether from a single connected device.

In DLNA, performs downsampling at 48kHz.

CM6642 Chip High Speed ​​USB - audio class


The control chip / CM6642 conversion can work with resolutions up to 24 bit / 192kHz.

This chip natively supports audio codecs decoding and has interesting specifications as regard to general sound quality (THD + N ≥100dB @ 1kHz ≤0.005%)

To facilitate installation, compatibility, and avoid wasting time on the software configuration, this amplifier requires no driver to operate. The USB input is automatically recognized by all devices. Including smartphones that are OTG ready.

cm6642 fda USB Interface
Headphone Amplifier MAX9722

Headphone amplifier MAX9722 & DAC AK4452


Besides being able to work with other D802E for a massive sound in multiple rooms, the latter is also a headphone amplifier that will provide high quality listening space to a single person .

Headphone amplifier is available thanks to a MAX9722 Stereo Audio DirectDrive chip. With differential inputs, this component is a reference in FX-Audio devices and most of its products use this chip as a headphone amplifier.

The DAC used only for the headphone output is an AKM 4452. A high-performance 32Bit DAC with a signal-to-noise ratio of 115dB.

This output is on a 6.35mm jack port with gold plated connectors for a clean, clear signal.

PCM1808 ADC 48 kHz / 24-bit


Few FDA are equipped with a ADC chip (analog to digital) exceeding 44kHz / 16-bit. Typically, the analog input is incidental and merely offers minimum requirements for occasional applications (such as connecting a modest vinyl player or a smartphone does not have the right connections).

Here, the AUX (RCA) analog input is far from an occasionnal solution since PCM1808 ADC chip is capable of sampling the signal to a resolution of 48 kHz / 24-bit. Meaning that the analog input will draw a higher resolution than CD quality from a decent analog signal.

The PCM1808 chip operates with a signal / noise ratio of 99dB and a THD + N of -93dB. If the analog signal processing remains a secondary function like in any full digital amplifier, the D802E offers nevertheless a headphone output that is well above what the market has to offer.

ADC analog input FDA
ARYLIC A50 Amplificateur FDA STA326 WiFi DLNA AIrPlay Bluetooth 2x50W 8 Ohm

Many services available

The amplifier can be controlled with your smartphone via a DLNA/UPnP application such as BubbleUPnP, iMediaShare or ArkMC UPnP. You will therefore be able to send files stored on your local network or in your home, or enjoy internet radios and streaming services such as Qobuz, Spotify, or Youtube. In addition, the D802E also allows you to enjoy the multiroom with synchronization of the tracks of each room or independent playback in each room.

D802E FDA multiroom upnp dlna airplay ieast

iEast Play & official Qobuz support!

Application iEast Play

It is possible to use the iEast Play application, allowing remote playback control, high resolution file support, multiroom and support for DLNA, Airplay and Qplay protocols. It offers many reading features via an intuitive interface. In addition, this application supports the high definition streaming solution Qobuz. This is a point that will certainly appeal to audiophiles looking for quality files. Of course, the application also supports Spotify, Tidal, Napster, QQMusic, iHeartRadio, Pandora and web radios.

D802E detail front panel

E D802 FX Audio Front


1 - ON / OFF button
2 - 6.35mm headphone output
3 - USB-A input (file reader)
4 - OLED
5 - Volume Knob Control

D802E back detail

D802E RCA inputs


1 - Antenna Connector WiFi / Bluetooth
2 - USB input (PC & OTG)
3 - Optical Input
4 - Coaxial Input
5 - Analog Input
6 - Audio output to passive speaker
7 - 24 - 32VDC Power supply

Wiring diagram

How to connect D802E FX Audio
Specifications
TypeFDA (Full digital amplifier)
Headphone Output Power80 + 80W @ 4Ω
40 + 40W @ 8Ω
WiFi ChipLinkplay A31 IEEE b / g / n 150Mbps
192kHz / 24-bit
Mutli-room & DLNA
Bluetooth ChipQCC3008 - BT 5.0 apt-X
Amplifier componentSTA326
ADCPCM1808
Freq. samplingOptical / Coaxial / USB: 44.1-192kHz / 16-24 - bit
To: 48 kHz / 24-bit
Bluetooth: 48kHz / 24-bit
THD0.1%
SNR-92dB
Frequency response+/- 1dB (20Hz-20kHz)
Headphone Output Power206mW
THD headphone output0.04%
SNR headphone output-106dB
headphone frequency response+/- 0.5dB (20Hz-20kHz)
InputsBluetooth, AUX, Optical, Coaxial, PC-USB, Wifi
Power supplyDC 24V to 32V
Dimensions185 x 150 x 40mm
Weight0.85kg
Parts supplied
FDA D802Ex1
Power Supply 32V 5A Jack DC 5.5/2.5x1
Remote control (AAA battreies not included)x1

Data sheet
InputWiFi
OutputJack 6.35mm
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipSTA326
Power (W)80.0
