Truly innovative FDA technology:
The Full Digital Amplifier FDA QULOOS QA690 is the worthy successor of the QLS QA-100, the first affordable FDA amplifier on the market that is unanimously acclaimed by its users.
the QULOOS QA690 takes back the electronic quality, the very high level components of the QA100 by bringing innovations which were lacking. Thus, the Quloos brand designer listening to his customers now offers much more than a revision of the QA-100.
The QULOOS QA690 offers all the advantages of FDA amplification with an audio signal reducing all stages of conventional conversion and amplification by only 3 stages instead of the usual 8.
FDA amplifiers, which can be described as digital power converters, offer today a real evolution and alternative to traditional analog and digital amplifiers.
Very high level active and passive components:
Based around two 150W TAS5624 amplification chips (Texas Instrument), the QA690 offers the ultimate in Full Digital Amplifier.
The asynchronous signal reshaping input chip SRC AKM AK 4137 sends the PCM or DSD audio stream into the amplifier chips with as little jitter as possible.
Inspired by the Quloos QA661 Digital player, the two clocks of the QA690 have their own separate power supplies on LT1763 regulator and ceramic VIMA and NPO film capacitors (thermal stability).

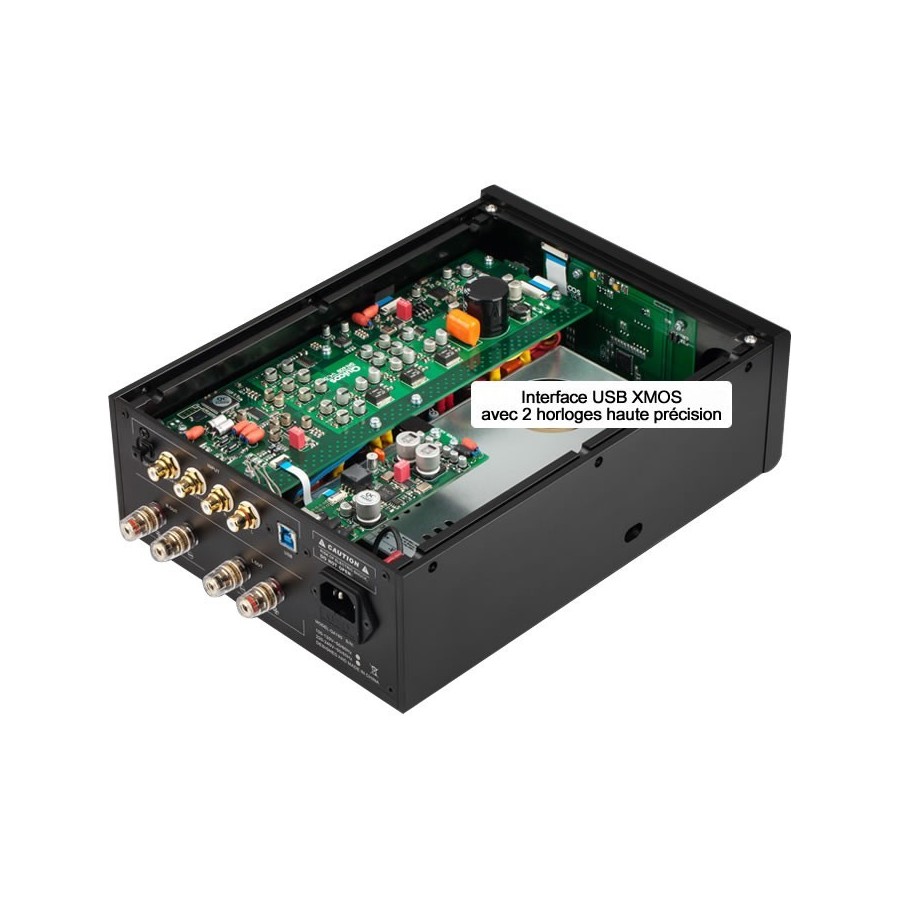

The separate XMOS USB input card features the latest technology from High-End Hi-Fi.
The phase noises (jitter) are thus rejected at the limit of the measurable bringing a liquid, full, analog sound. The design and manufacturing quality of the QA690 far exceeds the usual criteria that have earned the brand its reputation.
The best passive components are in the QA 690 : VIMA, Panasonic capacitors, Vishay MELF and Holco resistors, shielded filter coils at the output.
An analog filter and a high level PSRR power supply:
The power supply with British brand Kemet BHC capacitors (2x10000 µf) is now shielded and separated from the rest of the electronics greatly reducing EMI and RFI pollution between components.
With a significant number of separate LDO low noise controllers (LT1965, LT1963, LM1086) for each voltage, the QA690 offers a stable electrical voltage quality with a high noise rejection rate, necessary for optimal digital signal rendering.
The QULOOS QA680 chassis is made entirely of military grade aluminium on CNC Pirelli machines.
Quloos QA690 review bt Qobuz
" This powerful all-digital amplifier, designed with great seriousness and offering a sound reproduction with a more or less modular clarity according to its tastes, is a choice element to constitute the heart of a quality hi-fi system in a traditional format adapted to the restitution of dematerialized music. "
The On/Off button on the front panel is not backlit.
Characteristics:
- Integrated amplifier FDA 2 amplifier chips TAS5624 2X100 W on 8Ohm
- High Definition 24bit 192Khz XMOS USB input
- PurePath Digital Texas Instrument Technology
- High and low settings
Inputs and outputs:
- One Asynchronous XMOS USB input: 24 bit 44.1~192Khz and DSD
- Two 192Khz 24bit SPDIF coaxial inputs
- One Toslink 24bit 192Khz optical SPDIF input
- One analog line input on Cinch RCA stereo
- One stereo speaker output on gold-plated screw terminals
Technical data:
- Power under 8 Ohm : 2x 100W
- Power under 4 ohm : 2x160W
- Dynamic capacity: 101dB
- Signal-to-noise ratio : 101dB
- Channel separation: 97dB
- Distortion : 0.02%
- Frequency Response: 10 to 20Khz
- Power consumption in standby mode: 13w
- Signal ratio, Speaker output: 117dB
Dimensions :
- 300x216mm x100mm (excluding RCA and volume knob)
- Weight: 5Kg
Bundle :
- Remote control with volume control
- 1m50 USB 3.0 cable
- 1m50 SPDIF µ-OFC coaxial cable with EMI ferrite
- IEC mains cable 3 poles
- Instructions for use in English
