Your monitor must support HDMI ARC or eARC.

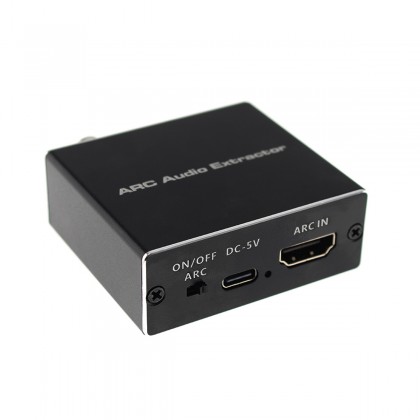

HDMI ARC EXTRACTOR
ARC to SPDIF Jack 3.5mm CEC
This compact HDMI ARC audio extractor extracts the signal from a wired HDMI ARC connection and distributes it as a digital audio signal under a TOSLINK, 3.5mm Jack or Coaxial output.
ARC Extraction : When a TV is displaying a video signal from its built-in DTT tuner, the extractor can supply the audio signal from an HDMI ARC connection of the TV by pressing the ARC ON/OFF button via the Toslink, coaxial or 3.5mm Jack output.
Technical characteristics
| Specifications | |
|---|---|
| Product type | HDMI ARC Extractor |
| Inputs | HDMI ARC |
| Outputs | TOSLINK Jack 3.5mm Coaxial |
| HDMI compatibility | HDMI 2.0 |
| Supported audui formats | 2.0 / 5.1 192KHz |
| CEC fonction | Yes (Jack 3.5mm) |
| Operating temperature | -10° - +55° |
| Power consumption | USB-C DC 5v 1A |
| General | |
|---|---|
| Dimensions | 52 x 58 x 22 mm |
| Weight | 58g |
| Package | 1x HDMI ARC Extractor 1x USB-A to USB-C cable (DC 5V 1A) |
