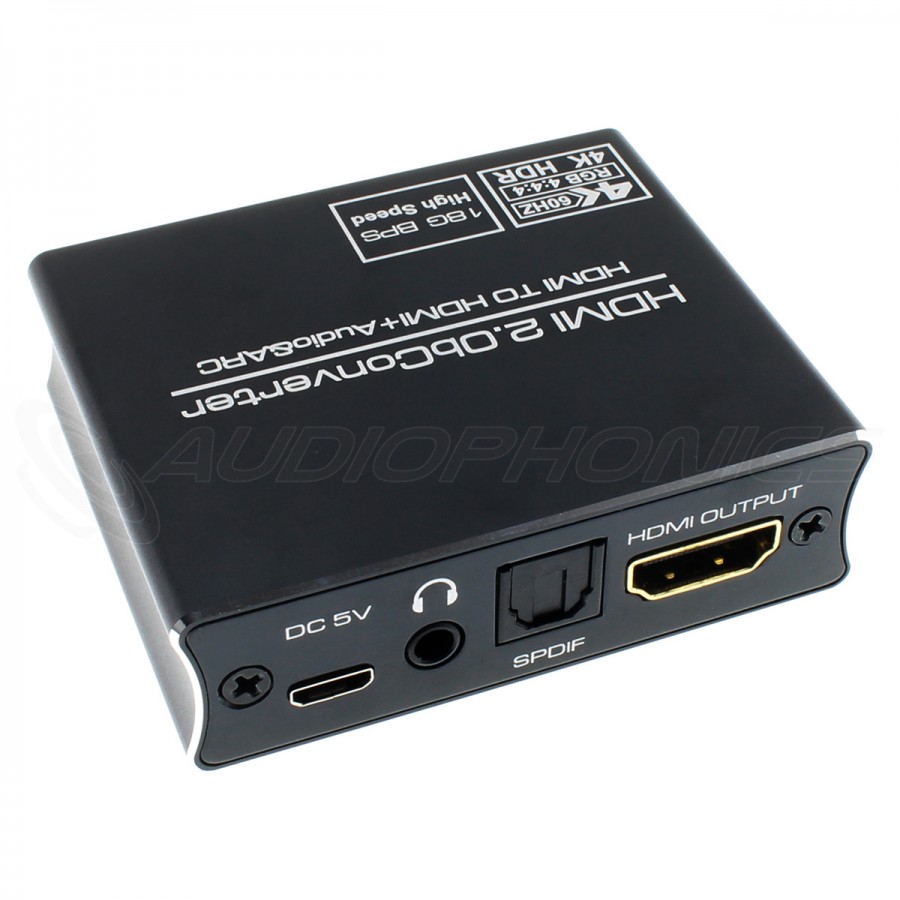

HDMI Extractor
HDMI to HDMI / Optical / Jack 3.5mm 5.1 18Gbps HDCP 2.2 4K 60Hz HDR ARC 3D CEC
This extractor allows you to recover and extract an HDMI signal at the input and then output both in HDMI, Optical Toslink and Jack 3.5mm to distribute the audio signal independently. The extractor is compatible with 4K, HDR, 3D, ARC, CEC with a bandwidth of 18Gbps. A selector allows you to choose the number of channels, for a stereo, 5.1 or pass-through operation. In the same way, a switch allows to activate or not the ARC function.
If you use the HDMI and optical outputs simultaneously, make sure you use cables with compact connectors. The HDMI and optical outputs of the extractor are indeed close to each other.
| 1 | ARC ON/OFF switch |
| 2 | Pass-Through / 2.0 / 5.1 selector |
| 3 | HDMI input LED |
| 4 | HDMI input |
| 5 | 5VDC power input via Micro USB |
| 6 | Jack 3.5mm headphone output |
| 7 | Optical Toslink output |
| 8 | HDMI output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | HDMI extractor |
| Input | 1x HDMI |
| Outputs | 1x HDMI 1x Optical Toslink 1x Jack 3.5mm |
| Supported resolutions | 4K 60Hz, 2K, 1080p, 720p... |
| Supported technologies | HDR CEC ARC 3D |
| Max bandwidth | 18Gbps |
| Package | 1x HDMI extractor 1x USB-A to Micro USB cable |
