SMSL SH-1 HDMI 1.4 Audio Optical Toslink 5.1 Extractor ARC Function Silver
By buying this product you get 4 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
SMSL SH-1
HDMI 1.4 Audio Optical Toslink 5.1 Extractor ARC Function Silver
This small SMSL SH-1 converter allows you to extract digital audio from an HDMI source for separate amplification or decoding into 5.1 LPCM channels on Toslink optics. Its superior electronic quality ensures a good transmission quality unlike competitive models of the same price.
The FN button on the front panel allows the ARC functions to be locked. An analog output on a 3.5mm jack allows the stereo connection of headphones for listening to TV for example or for active speakers and hifi amplifiers or Home Cinema.
This module can also be used to connect a sound bar that does not have HDMI inputs. The SH-1 can be powered by a 5V USB port on the TV for example or by a micro USB charger adapter for smartphones.

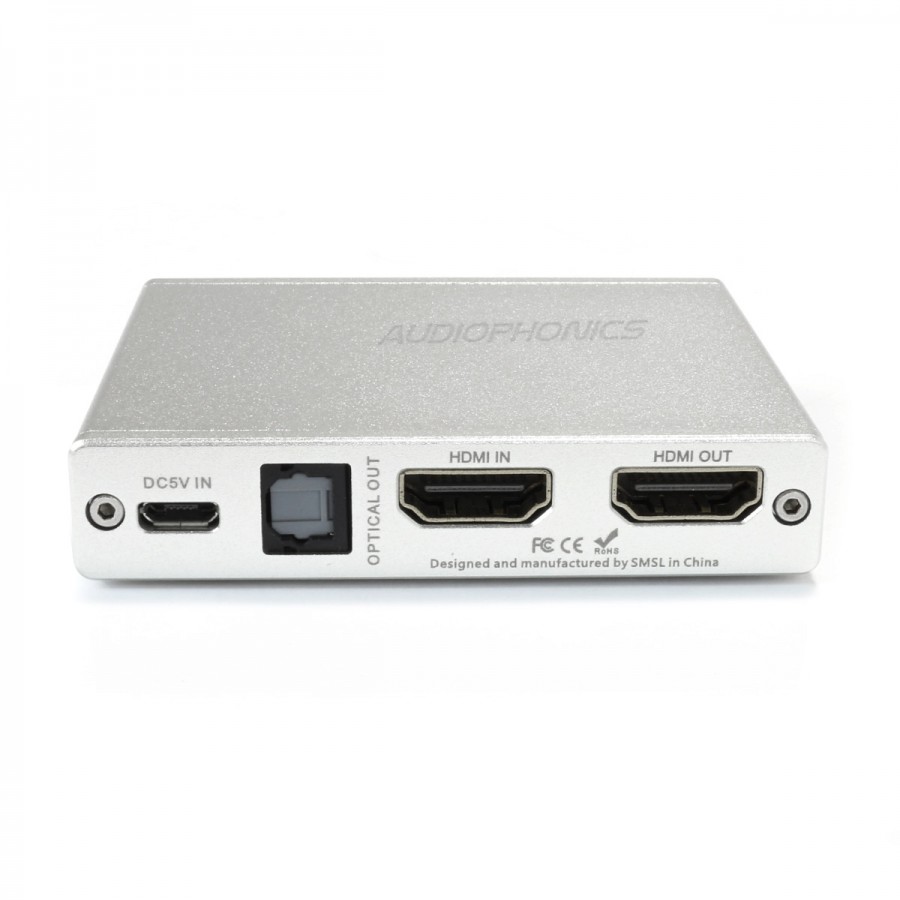

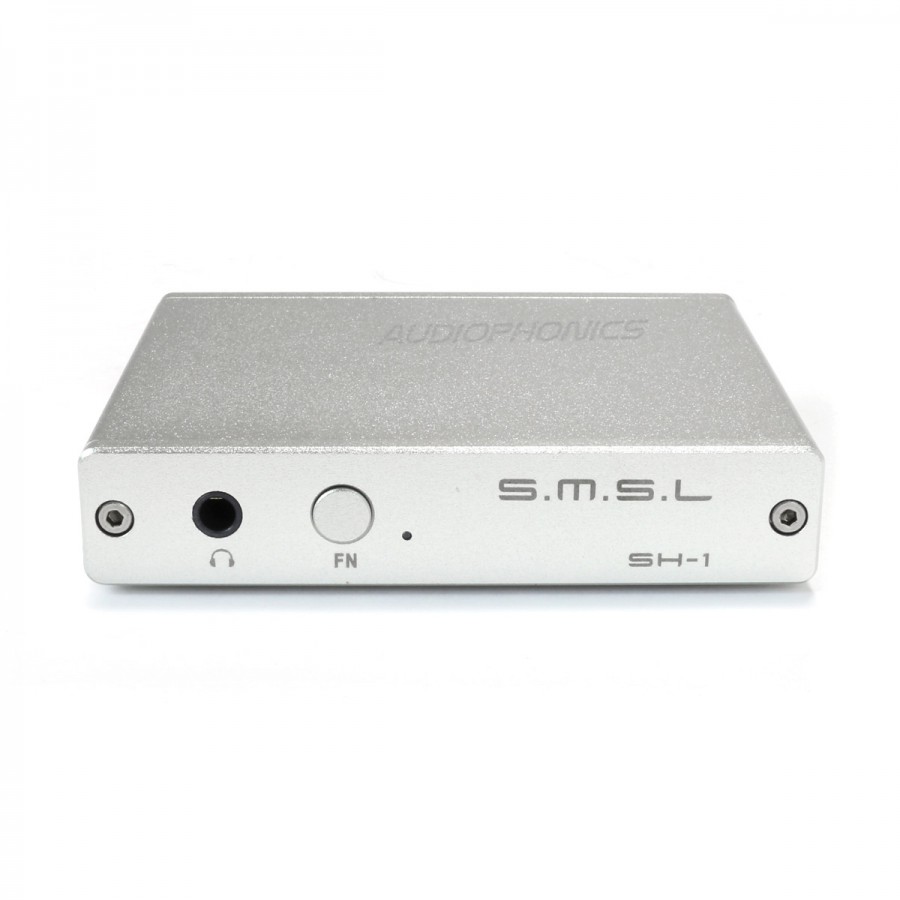

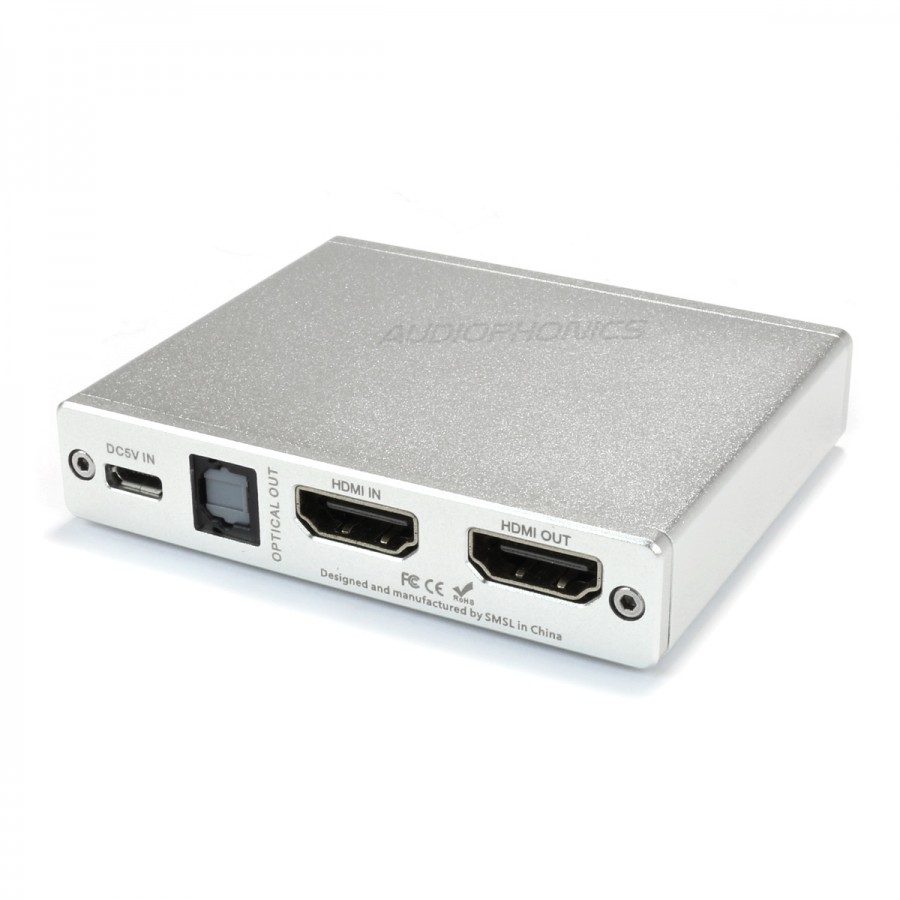

Diagram
| 1 | Jack 3.5mm headphone output (Also usable with amplifier or active speaker) |
| 2 | FN button : Push if HDMI ARC function is enable but no sound on output |
| 3 | Micro USB 5V Power supply |
| 4 | Optical Toslink output (SPDIF). Compatible with 5.1, AC3 and amplifier or active speaker |
| 5 | HDMI Input |
| 6 | HDMI Output |

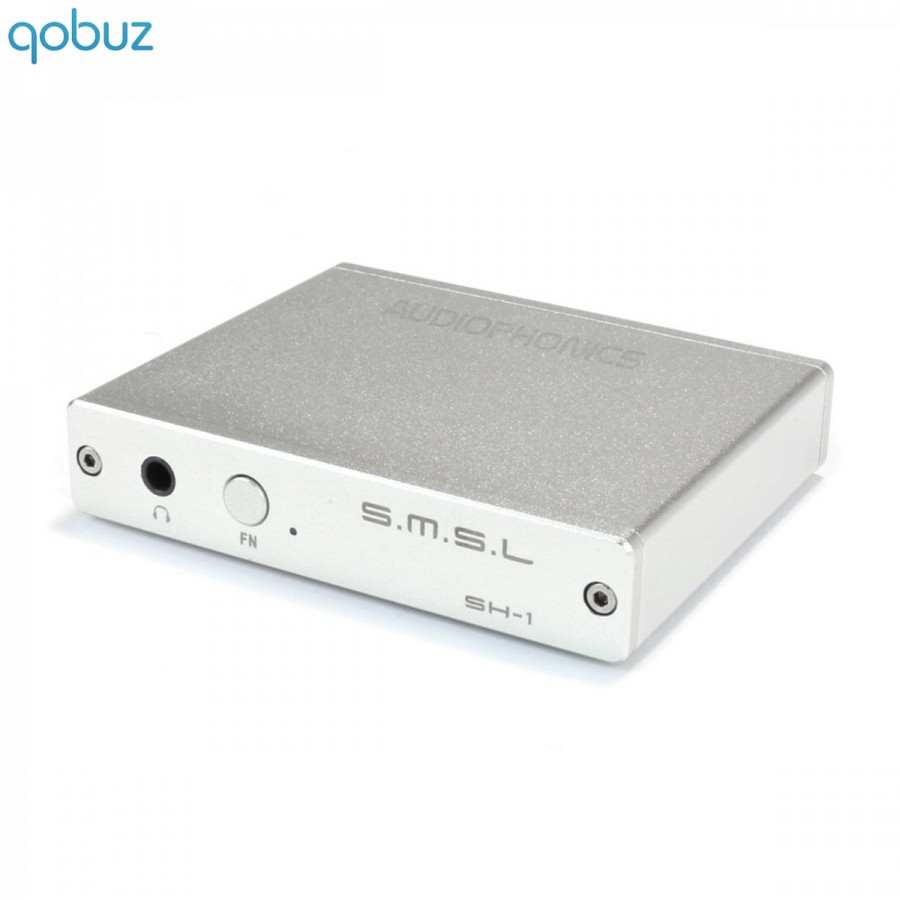

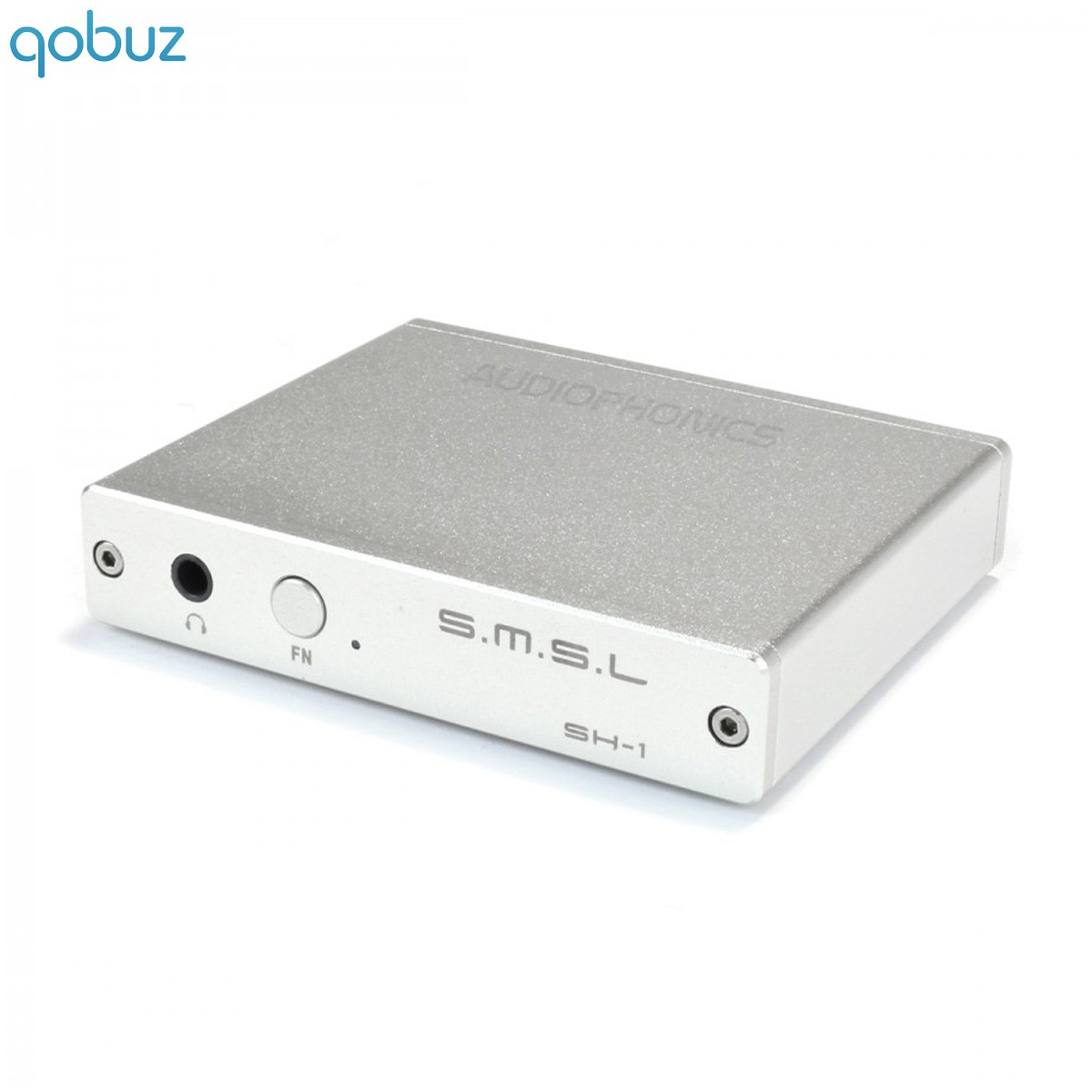

SMSL SH-1 review by Qobuz
" This atypical element can it provide services if you want to use the HDMI output of a home theater system or a television set, or even a computer, and if you listen to it from its headphone output, enjoy the very good sound quality of its conversion chip. "
Technical characteristics
| Specifications | |
|---|---|
| Product type | HDMI Extracter |
| HDMI video resolution | 480i/p, 576i/p, 750i/p, 1080i/p, 4K, 2K |
| Sampling rate | Optical Toslink: 192kHz |
| Input | 1x HDMI |
| Outputs | 1x HDMI 1x Optical Toslink 2 CH and 5.1 LPCM 1x Jack 3.5mm |
| Power supply | 5V Micro USB |
| Housing material | Aluminium |
| Dimensions | 75 x 61 x 15mm |
| Weight | 100g |
| Color | Silver |
| Package | 1x SMSL SH-1 1x Male USB-A to Micro USB cable |
