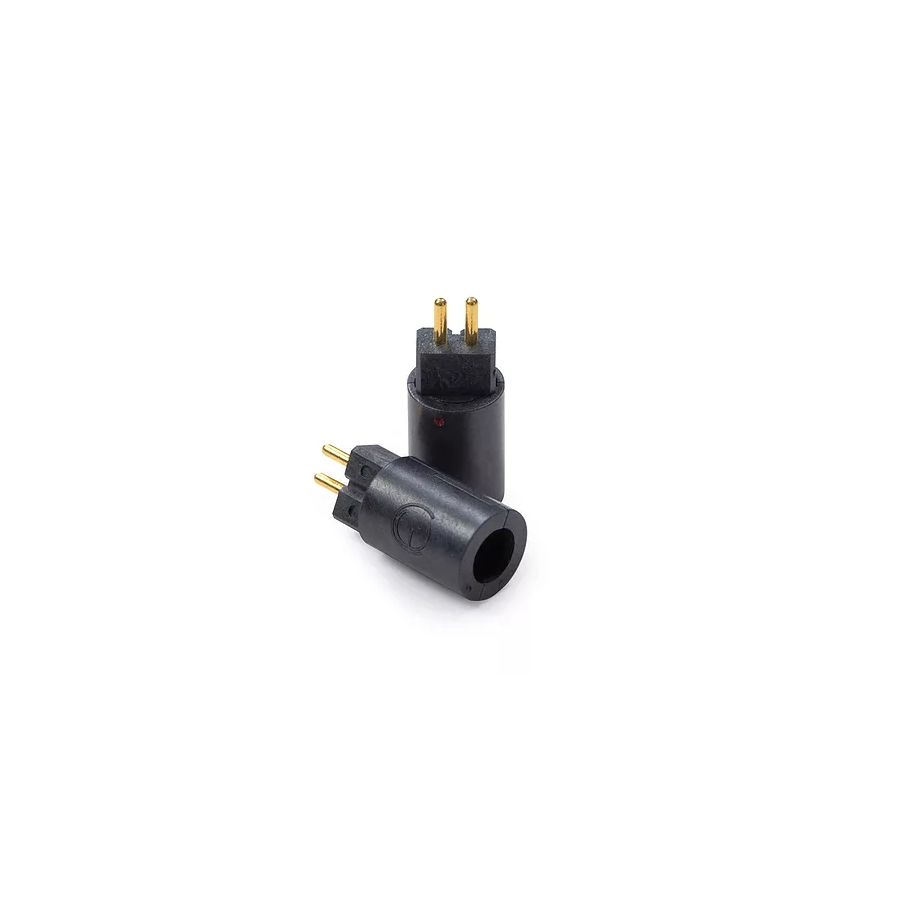

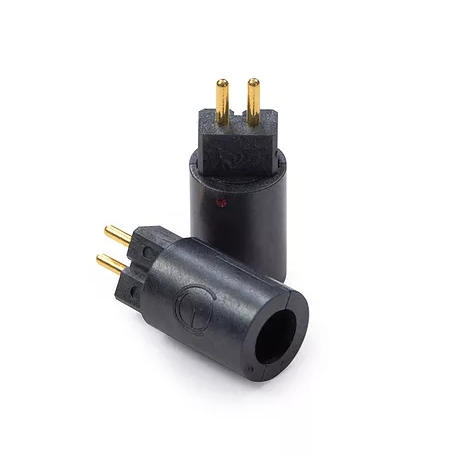

OEAudio CIEM 0.78mm male Connector Tellurium Copper Gold Plated (pair)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
CIEM Connector 0.78mm
This CIEM connector (0.78mm 2Pin) is ideal for the construction, repair or improvement of your EMI cables. It has a high conductivity Tellurium Copper with gold plating & anti-oxidation treatment.
Each pin is insulated by an LCP housing (liquid crystal-polymer) which eliminates interference between the signal pin and ground pin.

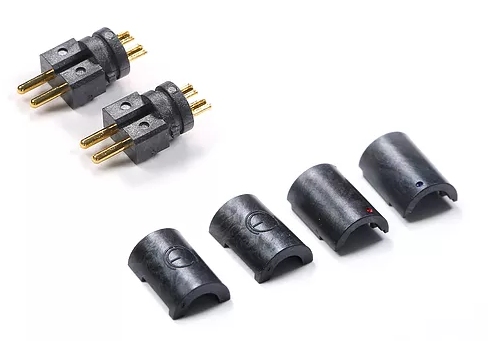

The outer housing is made of the same material, thereby limiting as well external disturbances. The latter is composed of two clip-facets, allowing assembly after welding for more convenience.
| Specifications | |
|---|---|
| Type | ICES 0.78 mm connector |
| Contacts | x2 Tellurium Contact |
| Housing | LCP to clip |
| Internal diameter | ⌀3.5 mm |
| Length | 10.5 mm |
| Plating | Gold |
| Package Contents | |
|---|---|
| Connectors CIEM | x2 |
| Semi-housings connectors to assemble | x4 |
| Max cable diameter (mm) | 3.5 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 2 |
| Connector | CIEM 0.78mm |
| Contacts Material (Connector) | Tellurium Copper |
| Contacts Plating (Connector) | Gold |
