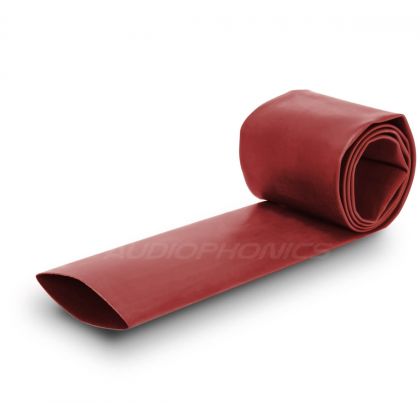

Heat-shrink tubing 2:1 Ø18mm Red (1m)

Thickness of intermediate size studied to provide excellent protection to mechanical strength, while maintaining a high degree of flexibility.

Adapts to irregular shapes and provides a high degree of insulation and waterproofing. Product is halogen-free, flame retardant, and RoHS certified.

A ratio of 2: 1 means that the diameter of the sheath once heated will be divided by 2: for example for a 12mm sheath, after being heated its diameter will be 6mm.

Diameter: 18.0mm => about 9.0mm after retraction

Specifications:

• Retractable Ratio: 2: 1
• Longitudinal Retracting Ratio: ± 8%
• Shrink Temperature: 70 - 115 ° C
• Sheath Thickness Retractable : +/- 0.40mm
• Sheath Thickness After Retraction: +/- 0.80mm
• Temperature Resistance: -45 to + 125 ° C
• Rigidity Dielectric: ≥15 Kv / mm (IEC243)
• Certifications: RoHS
• Diameter: 18mm
• Length: 1m
• Color Red
