Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

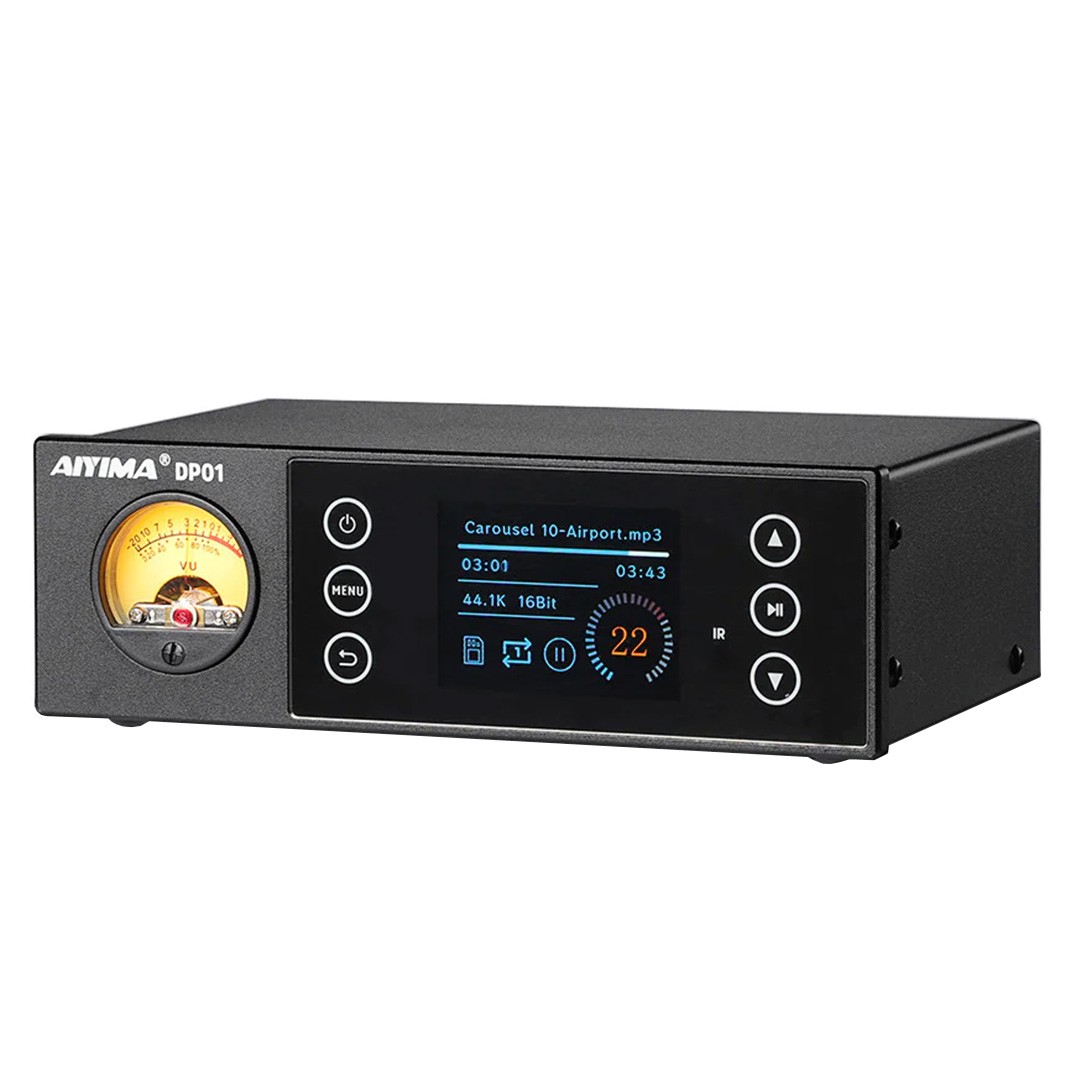

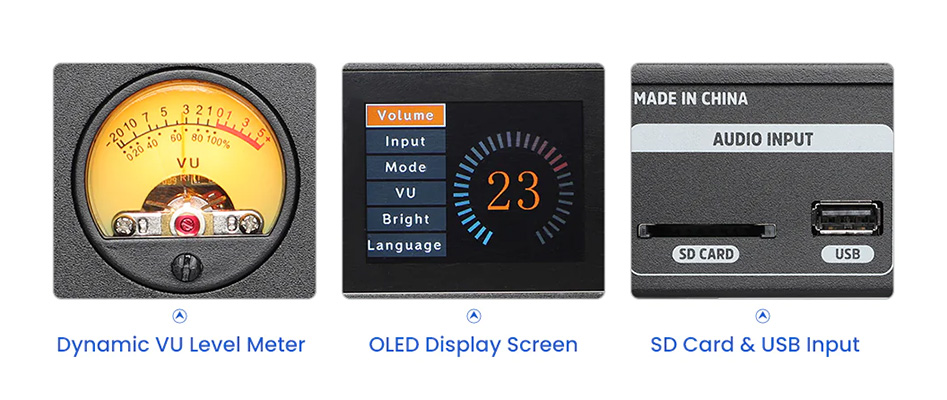

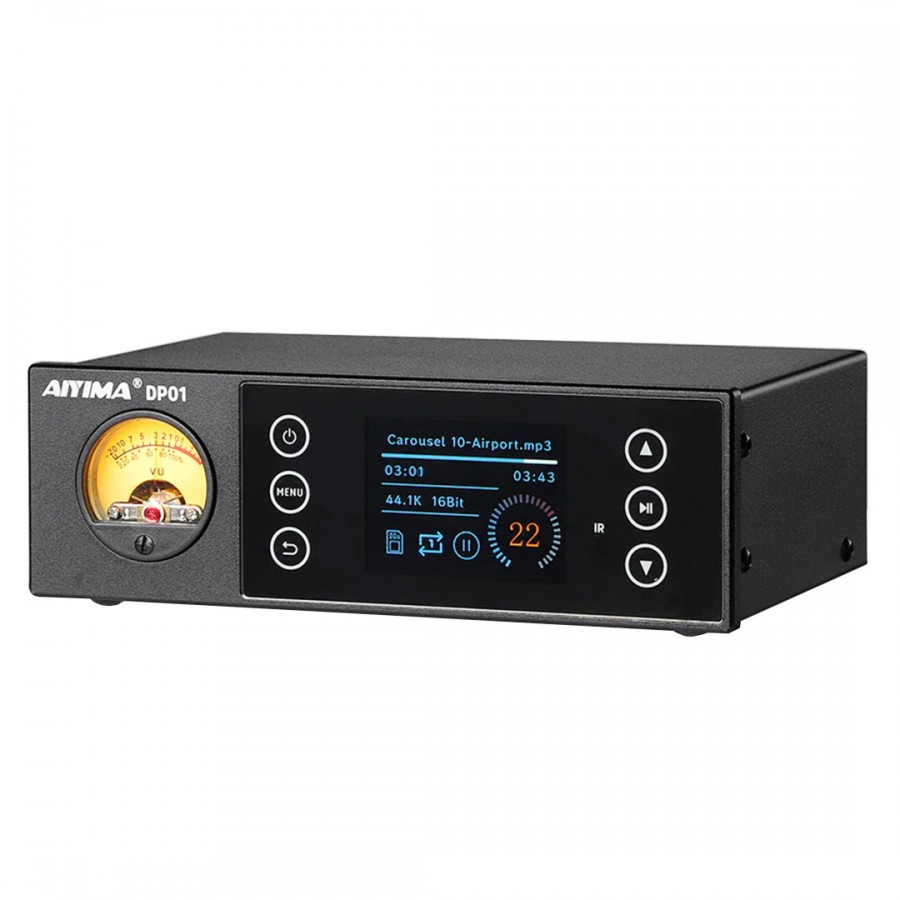

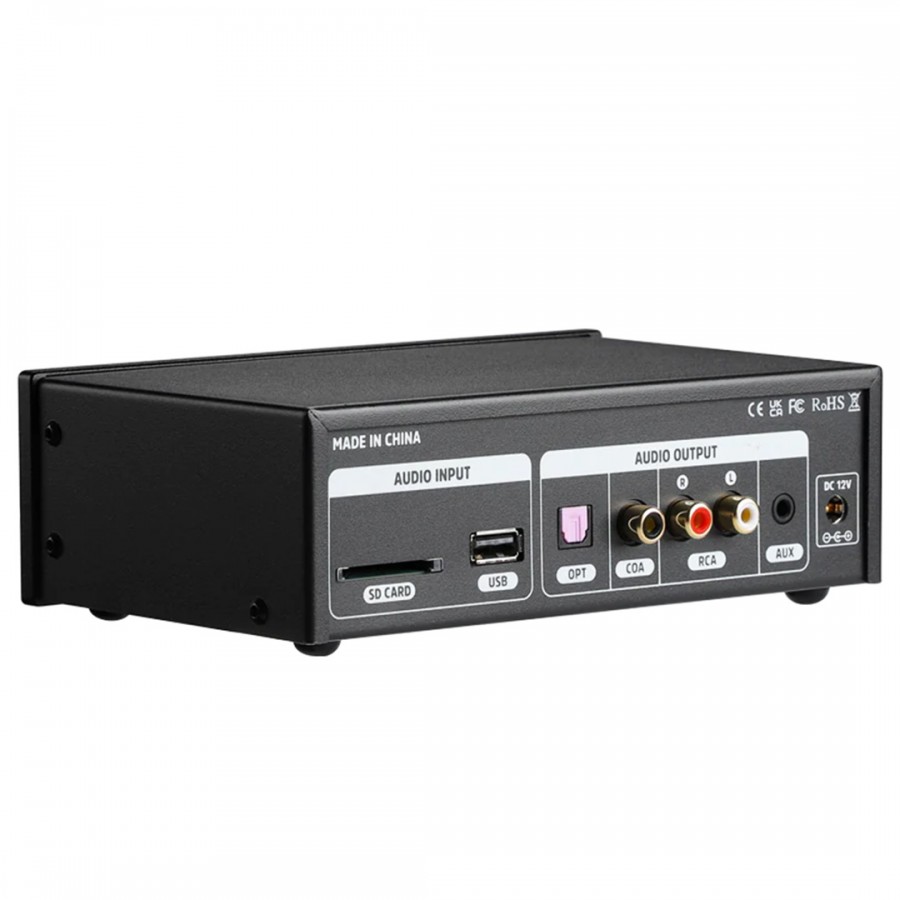

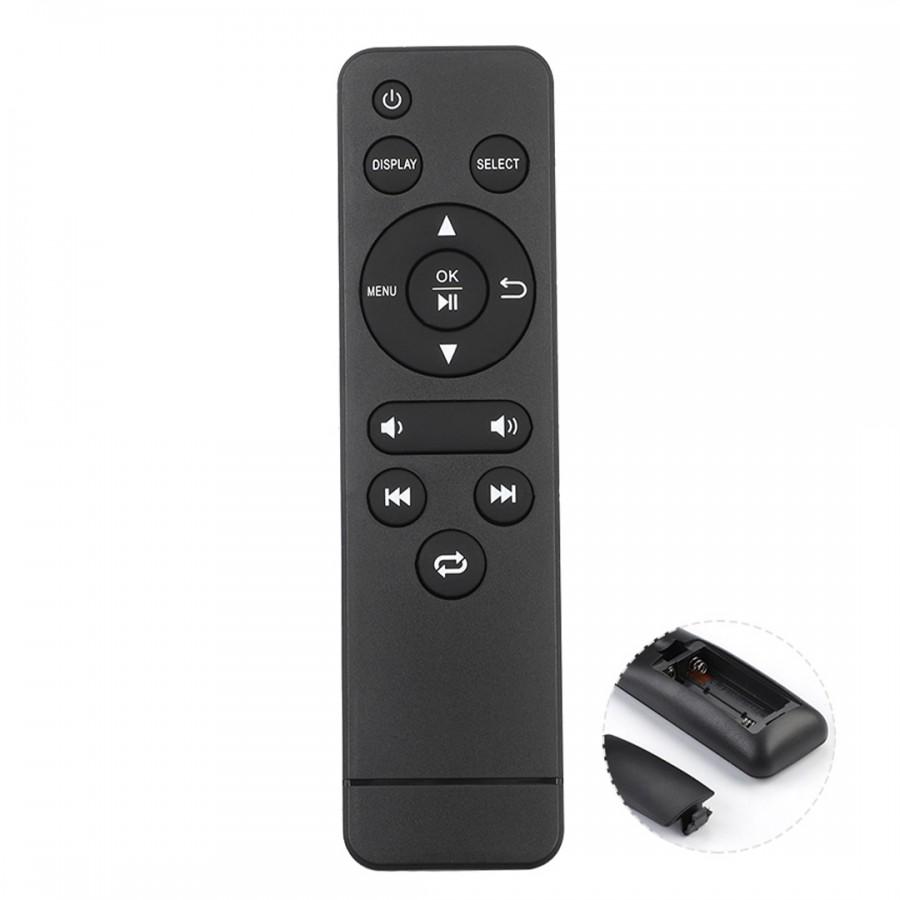

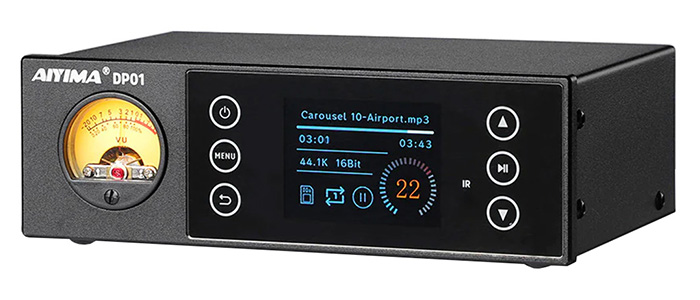

The Aiyima DP01 is a file reader that combines modern technology with vintage design. It has two inputs: a USB-A 3.0 port and an SD card slot. It's also versatile in terms of its outputs, with optical Toslink, coaxial, stereo RCA and Jack 3.5mm AUX outputs, the latter of which can be used as a pre-amplifier with an analogue output level of 2Vrms. It is capable of decoding numerous file formats and sampling rates thanks to its AK4499 DAC chip. The design features a 2.4-inch OLED screen and VU meter. What's more, an IR remote control for controlling it from a distance makes the user experience practical and pleasant. It also supports a range of languages: English, French, German, Japanese, Chinese, Vietnamese and Russian.
With its AK4499 DAC chip, its digital outputs support PCM up to 24bit 192kHz and DoP64, while its analogue outputs support PCM up to 32bit 384kHz and DSD256, as well as DTS (2 front L/R channels) for home cinema use.

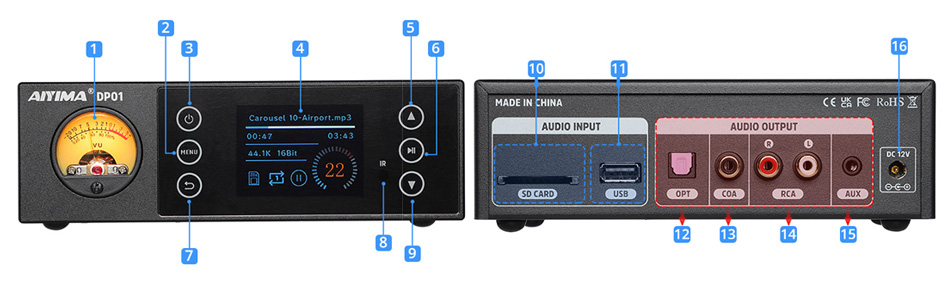

1 | VU meter |
2 | Menu button |
3 | ON/OFF button |
4 | OLED display |
5 | Previous track button |
6 | Play/Pause button |
7 | Return button |
8 | IR receiver |
9 | Next track button |
10 | SD card slot |
11 | USB 3.0 input |
12 | Coaxial output |
13 | Optical Toslink output |
14 | Stereo RCA output |
15 | AUX Jack 3.5mm output |
16 | DC 12V power supply input |
Technical characteristics
Specifications | |
---|---|
Product type | File reader |
Inputs | 1* USB-A 3.0 1* SD card slot |
Outputs | 1* Optical Toslink 1* Coaxial 1* Stereo RCA 1* AUX Jack 3.5mm |
Supported audio formats | WAV, FLAC, ISO, APE, DSF, DFF, DTS... |
Supported sampling rates | Optical / Coaxial: PCM up to 24bit 192kHz, DoP64 RCA / AUX Jack 3.5mm: PCM up to 32bit 384kHz, DSD up to DSD256 |
USB interface | Supports USB 3.0 |
Maximum hard disk capacity | 2To |
SD card interface | Supports Class 10 and higher (transfer speed: at least 10MB/s) |
Maximum U disk / SD card capacity | 512Go |
Supported hard disk formats | FAT32 / exFAT |
File system | Multi-partitioning not supported |
Analog output level | 2Vrms |
General | |
---|---|
Power supply | DC 12V |
Dimensions | 164*106*50mm |
Net weight | 604g |
Package | 1* Aiyima DP01 1* IR remote control (2x AAA batteries needed and not included) 1* DC 12V power adapter |
