LAIV HARMONY LEXT PHONO Extension Interface RCA / XLR Inputs for LAiV Harmony HP2A Silver
By buying this product you get 55 loyalty points
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
![[GRADE S] IAN CANADA STATIONPI SMT Raspberry Pi and HAT Boards Adapter Station](https://www.audiophonics.fr/64200-thumb_default/ian-canada-stationpi-smt-raspberry-pi-adapter.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

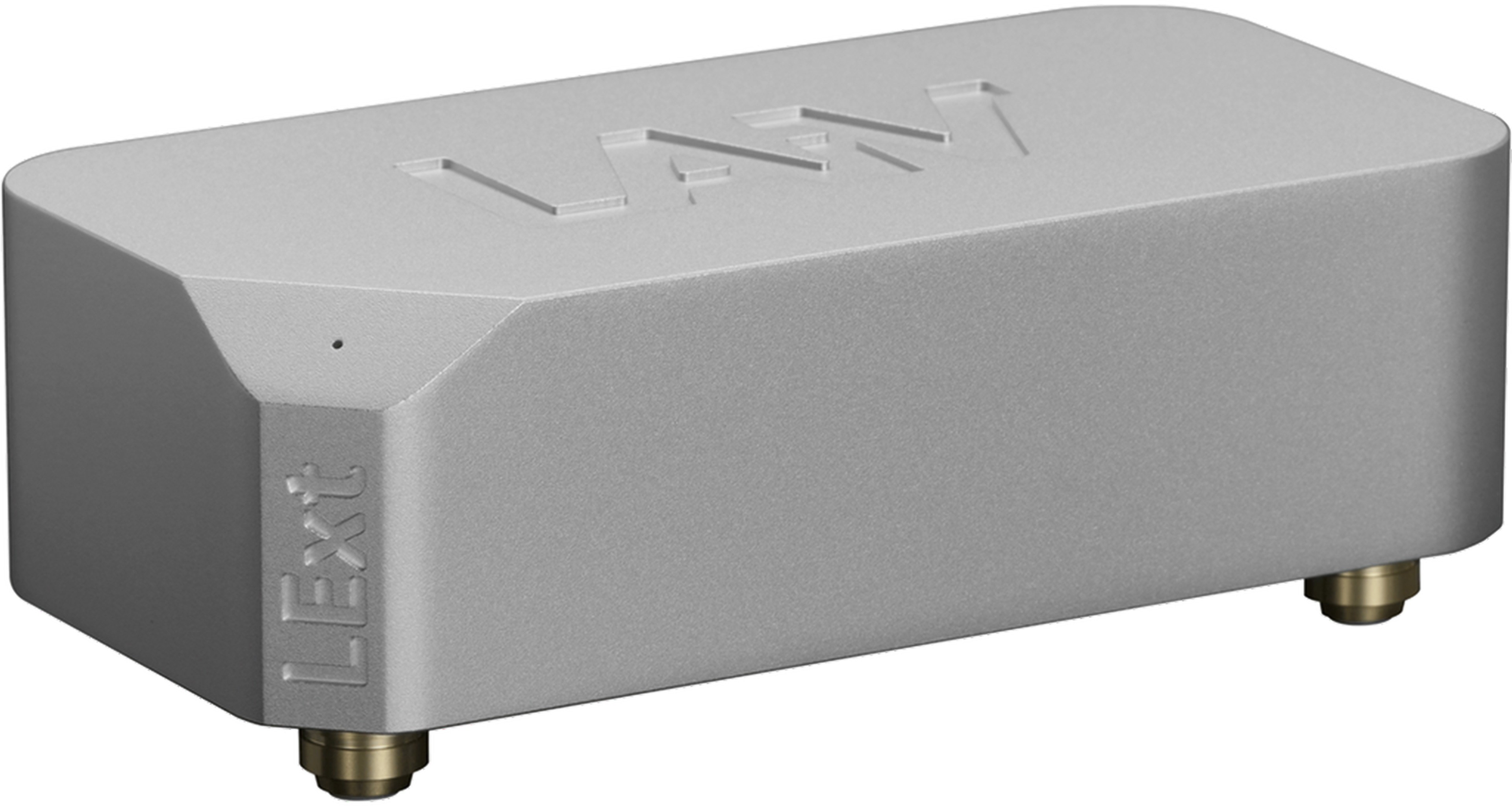

LAiV Harmony LExt PHONO Extension Interface MC Phono Input for LAiV Harmony HP2A Silver
The LAiV Harmony LExt PHONO is an innovative expansion module designed to enhance the capabilities of the LAiV Harmony HP2A (sold separately). Designed with versatility and ease of integration in mind, the LExt PHONO seamlessly adds a phono (MC) input to the HP2A via the proprietary LE-LINK connector, extending the HP2A's connectivity without compromising performance. What's more, there's no need for an additional power supply, which is transmitted directly from the HP2A via the LE-LINK connector.
In addition, the LExt PHONO is equipped with an impedance selector to match your turntable. This can be set to the values 22Ω, 47Ω, 100Ω, 470Ω, 1kΩ, 47kΩ.
| 1 | Power LED indicator |
| 2 | Impedance selector (MC) |
| 3 | RCA phono input |
| 4 | LE-LINK output |
| 5 | GND screw terminal |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Interface / phono extension for LAiV HP2A |
| Input | 1x Phono RCA input |
| Output to LAiV Harmony HP2A | 1x Proprietary LE-LINK connector |
| Selectable input impedance | 22Ω / 47Ω / 100Ω / 470Ω / 1kΩ / 47kΩ |
| Gain | 70dB |
| THD | ≤ 0.02% @ 1kHz ≤ 0.01% @ 20Hz-20kHz |
| SNR | ≥ 60dB |
| General | |
|---|---|
| Dimensions (excluding connectors) | 138 x 70 x 40mm |
| Weight | 450g |
| Color | Silver |
| Package | 1x LAiV Harmony LExt PHONO 1x LE-LINK cable |
