PA3S Class D Amplifier + D10 BALANCED DAC+ TCT1 Jack 6.35mm Cable Black

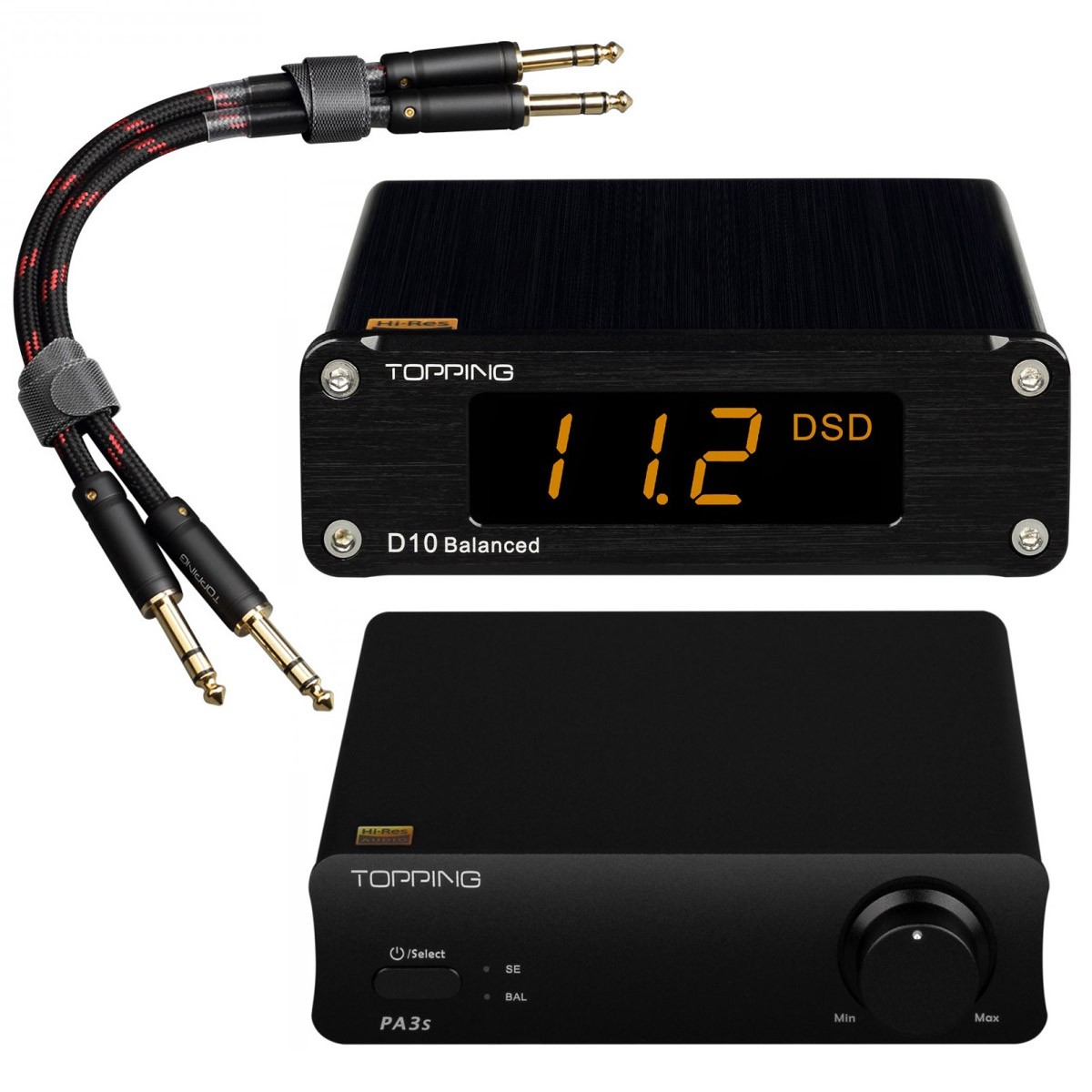

We propose you this complete Topping pack allowing to develop excellent sound performances. It consists of the PA3s Class D amplifier, the D10 Balanced DAC and the TCT1 cables. You will only need to add a source and speakers to this set to enjoy a complete and particularly efficient audio system.

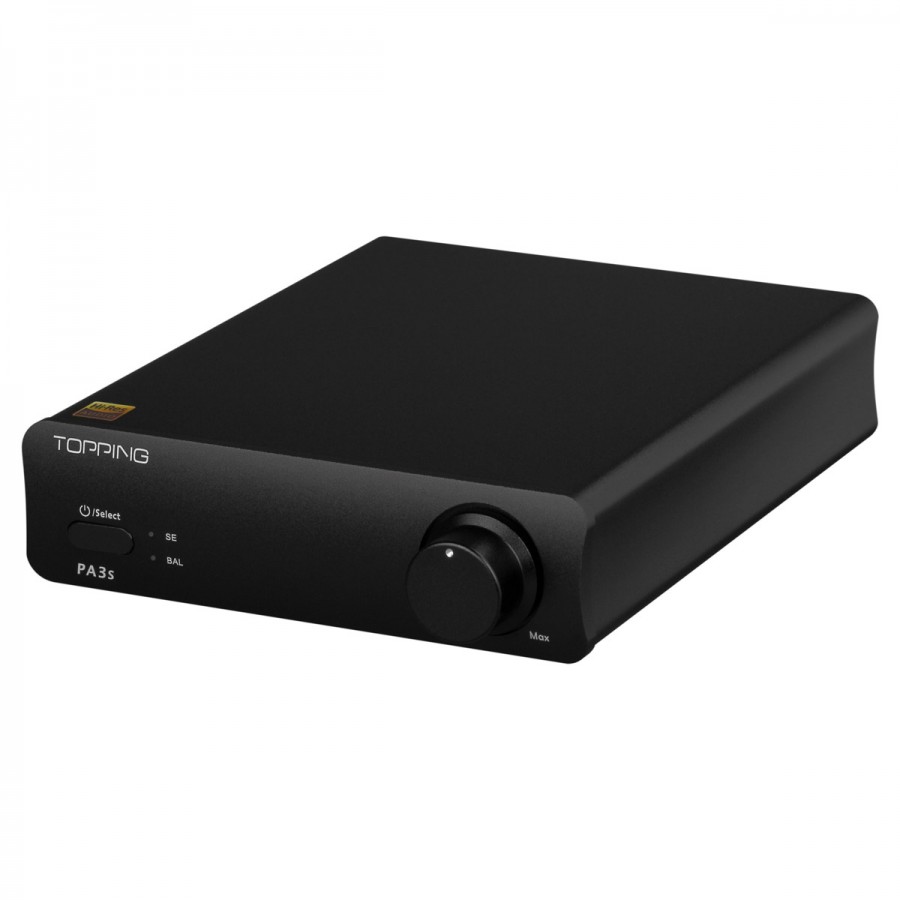

The PA3s is a small, simple, high performance and affordable balanced Class D amplifier. It is based on two Infineon MA12070 amplifier chips and takes advantage of two balanced and single-ended outputs. It is capable of developing a power of 2x65W under 4Ω with a high efficiency.

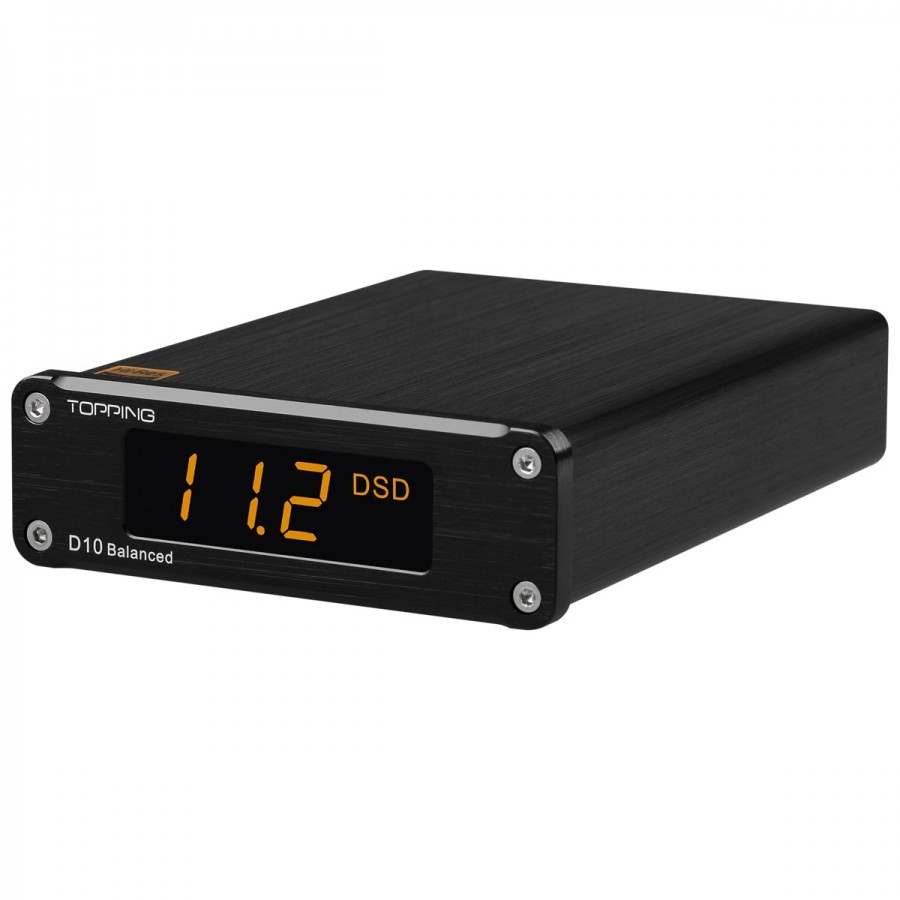

With the D10 Balanced, Topping offers an extremely powerful balanced DAC. This one integrates high-end components to favor a limpid and precise reproduction. It includes an ESS ES9038Q2M DAC and a XMOS XU208 USB interface, capable of supporting high resolution audio streams up to PCM 32bit 384kHz and DSD256.
" It is clear Topping is laser focused on best possible performance at every price point. And at the same time appreciates the importance of providing balanced outputs in desktop products where possibility of ground loops is quite high. Professionals would do well buying the D10 Balanced as well given its 4 volt output and ability to drive longer cables. "

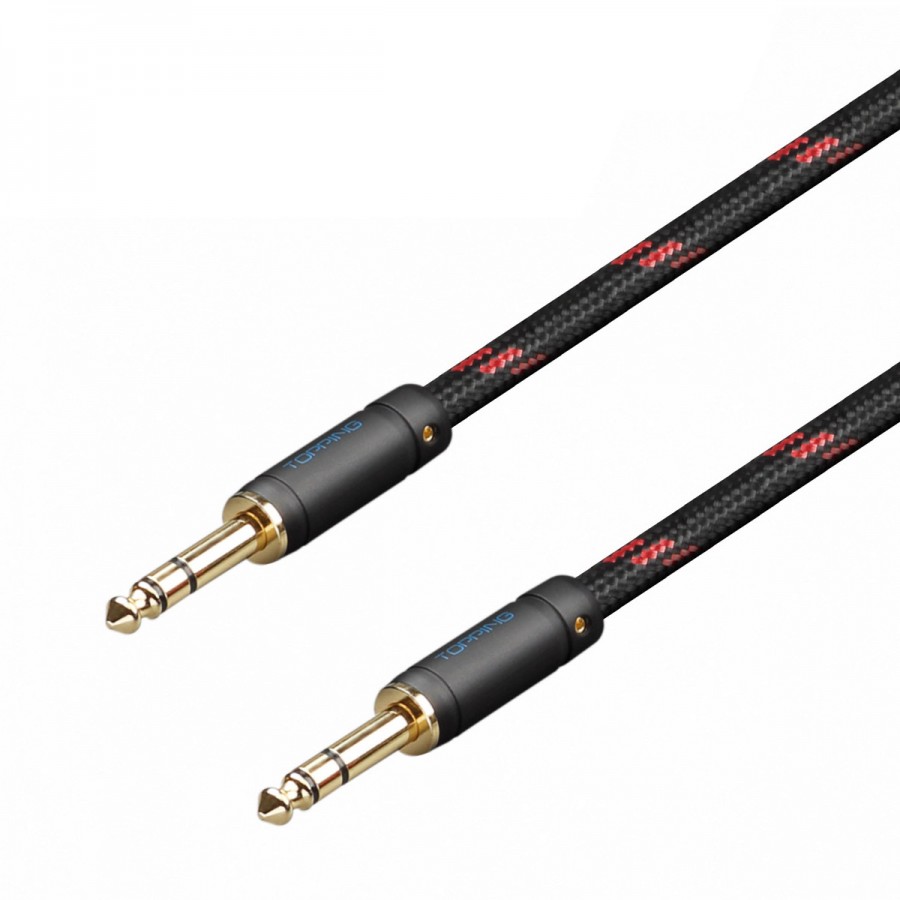

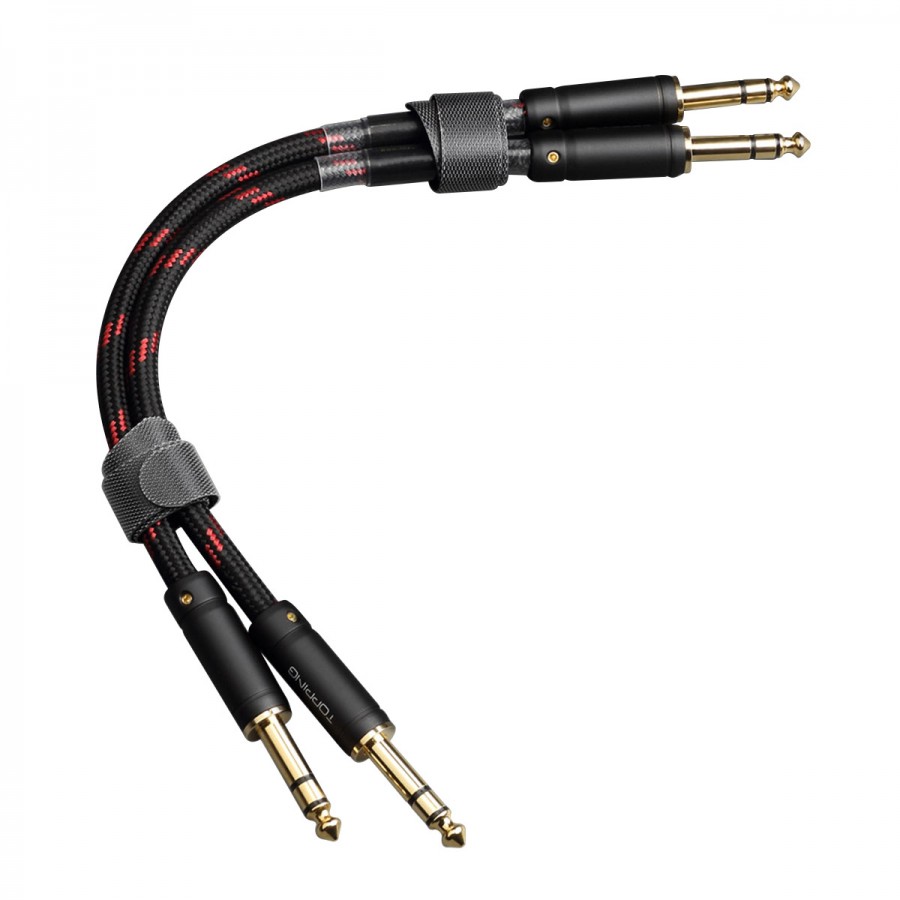

The TCT1 are high quality 6.35mm jack cables. They integrate 6N copper and 6N silver plated copper conductors, ensuring a perfect signal transmission. The contacts of the connectors are gold plated.
Specifications | |
---|---|
Product type | Ampifier + DAC + cables pack |
Pack content | 1x Topping PA3s 1x Topping D10 1x Topping TCT1 |
TOPPING PA3S SPECIFICATIONS AND MEASUREMENTS | ||
---|---|---|
Product type | Amplifier | |
Amplifier type | Class D | |
Amplification chip | 2x Infineon MA12070 | |

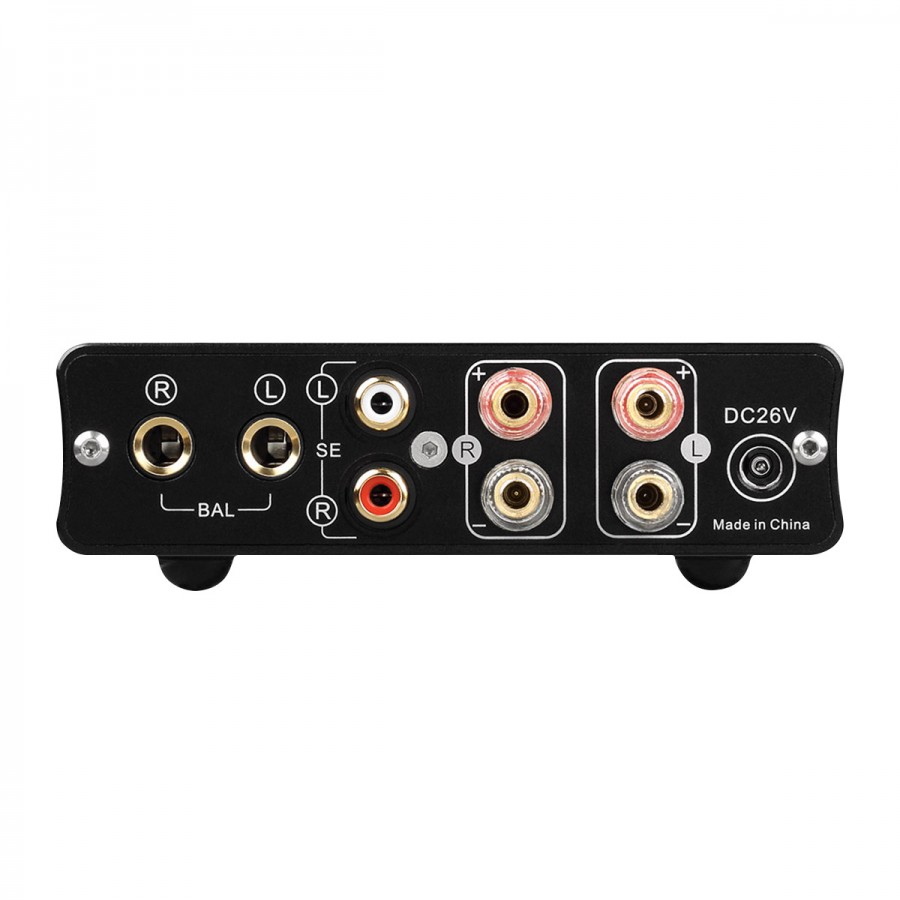

Inputs | 1x Single-ended stereo RCA 1x Balanced stereo Jack 6.35mm | |
Output | Speaker terminals | |
Single-ended input | Balanced input | |
THD+N @ 1kHz (A-Weighting) | < 0.005% @ 4Ω 5W | < 0.0045% @ 4Ω 5W |
< 0.004% @ 8Ω 5W | < 0.004% @ 8Ω 5W | |
THD @ 20Hz-10kHz (20kBW) | < 0.008% @ 4Ω 5W | < 0.007% @ 4Ω 5W |
< 0.007% @ 8Ω 5W | < 0.006% @ 8Ω 5W | |
SNR @ Max Out 1kHz, A-Weighting | 107dB | 112dB |
Dynamic range @ 1kHz, A-Weighting | 107dB | 112dB |
Frequency response | 20Hz-40kHz (±0.1dB) | 20Hz-40kHz (±0.1dB) |
Output level | 46Vpp @ 4Ω | 46Vpp @ 4Ω |
48Vpp @ 8Ω | 48Vpp @ 8Ω | |
Noise Bruit (A-Weighting) | < 70µVrms | < 70µVrms |
Crosstalk @ 1kHz | -96dB | -100dB |
Input sensitivity | 0.92Vrms | 1.75Vrms |
Gain | 25.2dB | 19.5dB |
Channel balance | 0.5dB | 0.5dB |
Output power | 2x 80W @ 4Ω THD+N < 10% | |
2x 45W @ 8Ω THD+N < 10% | ||
2x 65W @ 4Ω THD+N < 1% | ||
2x 37W @ 4Ω THD+N < 1% | ||
Adapter impedance | 4-8Ω | |
Supply voltage | 26VDC (power supply included) | |
Dimensions | 120 x 168 x 40mm | |
Color | Black |
Topping D10 BALANCED SPECIFICATIONS AND MEASUREMENTS | |
---|---|
Product type | DAC |
DAC Chip | ESS ES9038Q2M |
USB Interface | XMOS XU208 |
Input | 1x USB-B |

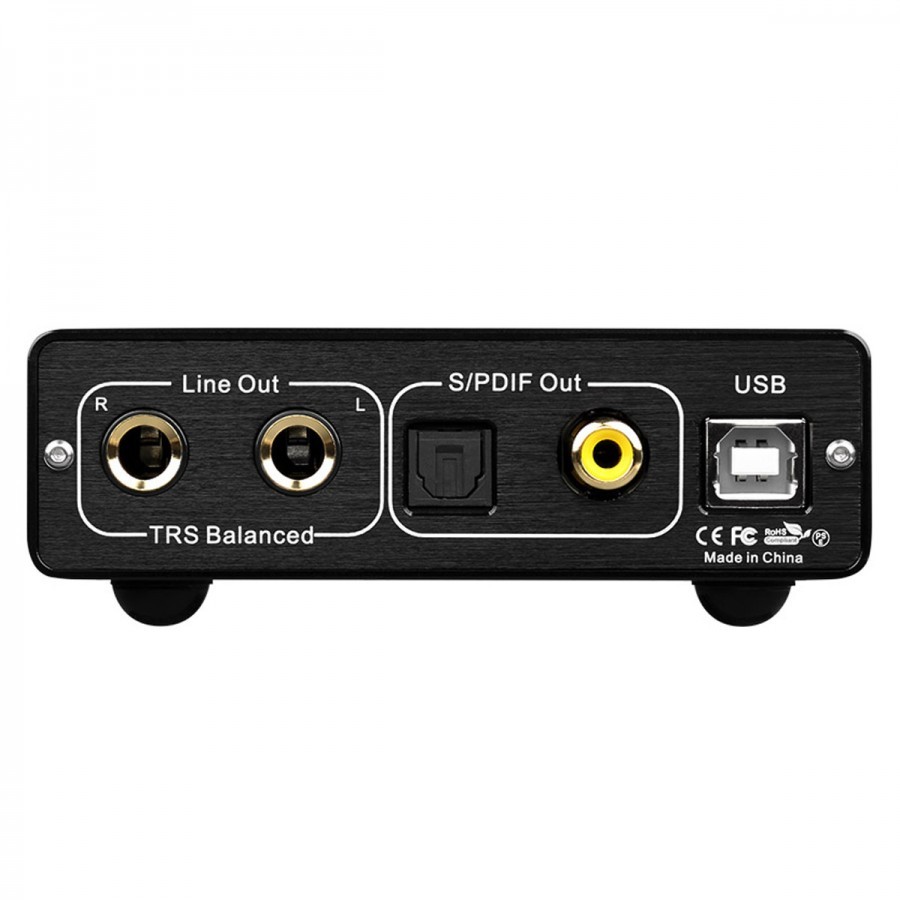

Outputs | 1x Balanced stereo output on Jack 6.35mm TRS (XLR adapters included) 1x Optical Toslink 1x Coaxial |
Supported sampling rates | USB input : PCM up to 32bit 384kHz, Native DSD up to DSD256, DSD DoP up to DSD128 Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64 |
THD+N @ 1kHz, A-Weighting | < 0.00012% |
THD | < 0.00015% @ 20Hz-20kHz |
SNR @ 1kHz, A-Weighting | 125dB |
Dynamic range @ 1kHz, A-Weighting | 125dB |
Frequency response | 20Hz-20kHz (±0.2dB) |
Output level | 4.2Vrms @ 0dBFS |
Noise | < 2.4µVrms |
Crosstalk @ 1kHz | -141dB |
Channel balance | 0.3dB |
Output impedance | 88Ω |
Supply voltage | 5VDC 0.5A via USB |
Dimensions | 103 x 146 x 37mm |
Weight | 340g |
Color | Black |
TCT1 Specifications | |
---|---|
Product type | Jack 6.35mm cables |
Connectors | Male Jack 6.35mm TRS |
Length | 25cm |
Cable external diameter | Ø8mm |
Conductors material | Copper Silver plated Copper |
Conductors section | 0.533mm² (19AWG) |
Connectors contacts plating | Gold |
External sheath | Braided nylon |
Color | Black and red |
Quantity | Sold in pairs (1 cable with red markings, 1 cable with white markings) |
