Jack DC Supercapacitor Filter 15V
This DC 15V jack filter with supercapacitor allows you to obtain a clean power supply for your Hi-Fi equipment and appliances, thanks to 6 supercapacitors 5F - 3.0V and an intelligent buffer system with common mode suppression effect. It also incorporates a UTC UZ1085L linear voltage regulator, an STC 8H1K08 microcontroller and a ME85P03 MOSFET transistor.
By buying this product you get 4 loyalty points
Reference : 19074
New product
Viewed products
DC 15V Jack Filter with Supercapacitor to DC Jack

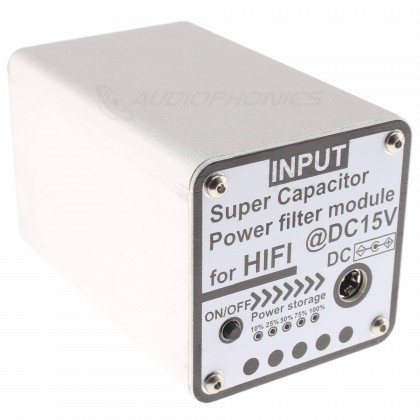

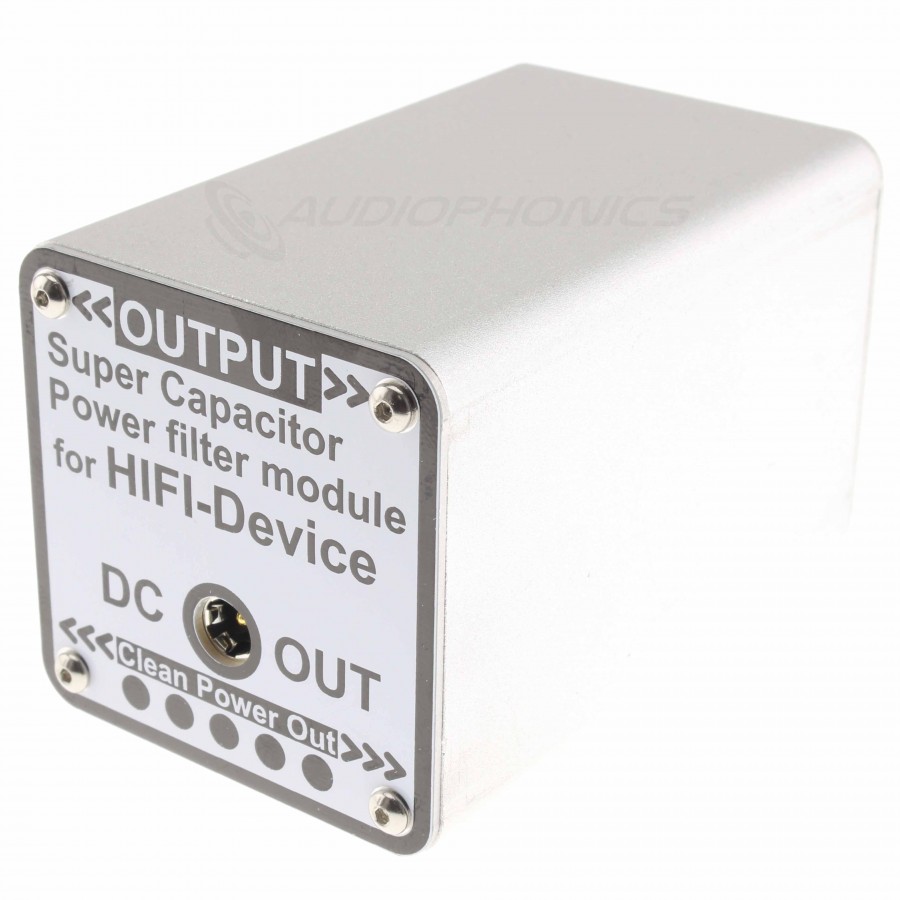

This DC 15V jack filter with supercapacitor allows you to obtain a clean power supply for your Hi-Fi equipment and appliances, thanks to 6 supercapacitors 5F - 3.0V and an intelligent buffer system with common mode suppression effect. It also incorporates a UTC UZ1085L linear voltage regulator, an STC 8H1K08 microcontroller and a ME85P03 MOSFET transistor. Input and output are on DC 5.5/2.1mm jack connectors. LEDs indicate the Jack DC filter loading: 10%, 25%, 50%, 75%, 100%. It is itself powered by 15V 3A via its DC jack input.
Filter operation
When a power supply is connected to the filter input, the 5 LEDs light up cyclically. No voltage is then delivered at the output. The LEDs then light up in the following order: 10% → 25% → 50% → 75% → 100%, as the supercapacitors are charged. To obtain output voltage, it is necessary to reach a charge level of 100%, then press the ON/OFF button. The LED corresponding to the charge level (100%) of the capacitors will then be the only one permanently lit. If the load never reaches 100% with 5 fixed LEDs, and one LED continues to flash, this indicates that your input power supply is not delivering exactly 15V.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Jack DC filter |
| Input | Jack DC 5.5/2.1mm |
| Outputs | Jack DC 5.5/2.1mm |
| General | |
|---|---|
| Dimensions | 82 x 52mm |
| Color | Argent |
| Weight | 150g |
| Package | 1x DC 15V jack filter 1x DC jack cable 5.5/2.1mm to jack 5.5/2.1mm 2x Adapter jack 5.5/2.5mm to jack 5.5/2.1 |
| Input | Jack DC 5.5/2.1mm |
| Output | Jack DC 5.5/2.1mm |
| Color | Silver |
| Output voltage (V) | 15.0 |
| Output current (A) | NC |
| Input voltage (V) | 15.0 |
| Power Supply | Power supply filter |
