Jack DC Supercapacitor Filter 9V

This DC 9V jack filter with supercapacitor allows you to obtain a clean power supply for your Hi-Fi equipment and appliances, thanks to 4 supercapacitors 5F - 3.0V and an intelligent buffer system with common mode suppression effect. It also incorporates a UTC UZ1085L linear voltage regulator, an STC 8H1K08 microcontroller and a ME85P03 MOSFET transistor.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 3 loyalty points


Reference : 19073
New product

39,90 €tax incl.

33,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

DC 9V Jack Filterwith Supercapacitor to DC Jack

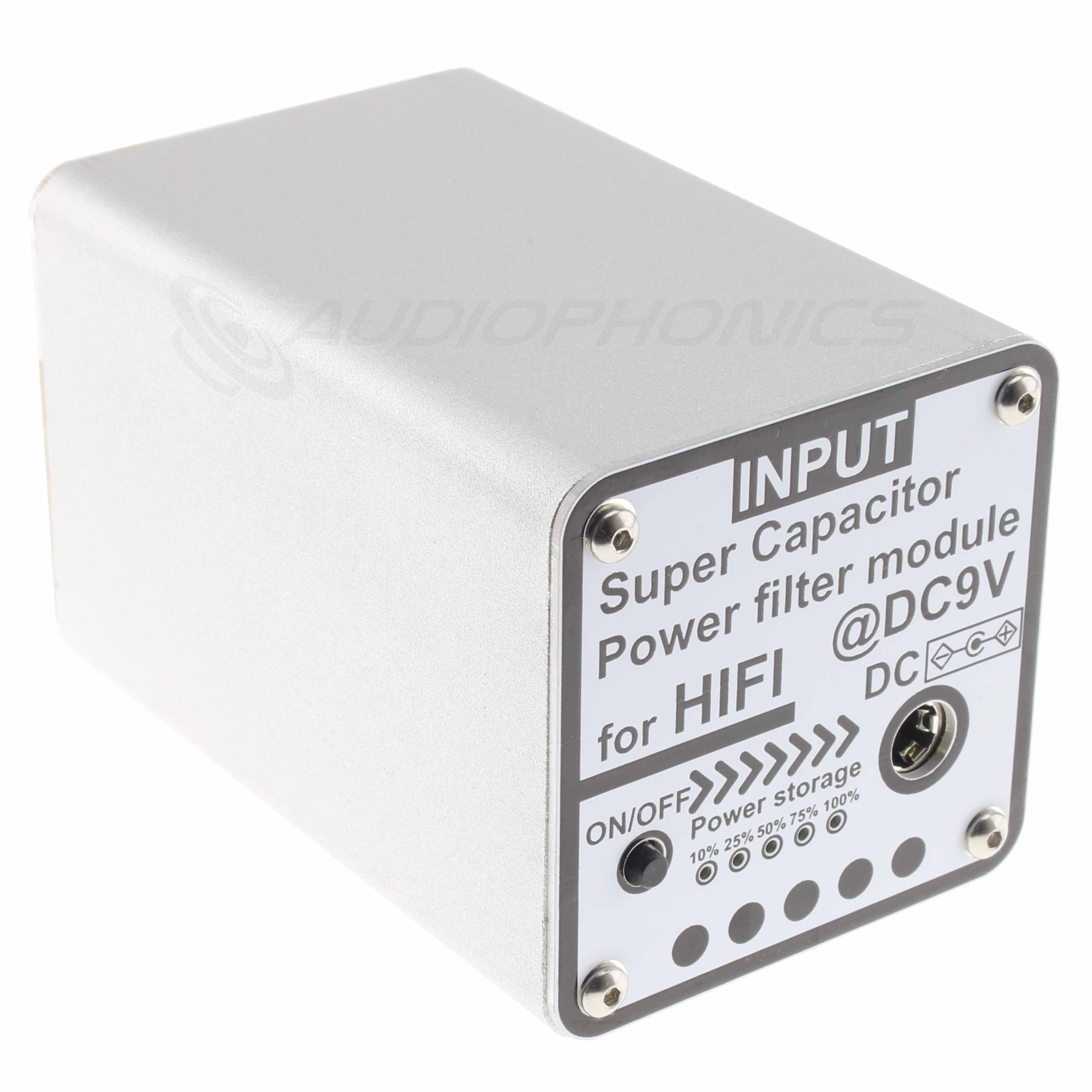

Photo of Jack DC 9V Supercapacitor Filter

This DC 9V jack filter with supercapacitor allows you to obtain a clean power supply for your Hi-Fi equipment and appliances, thanks to 4 supercapacitors 5F - 3.0V and an intelligent buffer system with common mode suppression effect. It also incorporates a UTC UZ1085L linear voltage regulator, an STC 8H1K08 microcontroller and a ME85P03 MOSFET transistor. Input and output are on DC 5.5/2.1mm jack connectors. LEDs indicate the Jack DC filter loading: 10%, 25%, 50%, 75%, 100%. It is itself powered by 9V 3A via its DC jack input.

Fonctionnement du filtre

Au moment du branchement d'une alimentation en entrée du filtre, les 5 LED vont s'allumer de manière cyclique. Aucune tension n'est alors délivrée en sortie. Les LED vont ensuite s'allumer de manière fixe dans l'ordre suivant : 10% → 25% → 50% → 75% → 100%, au fur et à mesure que les supercondensateurs se chargent. Pour disposer d'une tension en sortie, il est nécessaire d'atteindre un niveau de charge de 100%, puis d'appuyer sur le bouton ON/OFF. La LED correspondant au niveau de charge (100%) des condensateurs restera alors la seule allumée et fixe. Si la charge n'atteint jamais les 100% avec 5 LED fixes, et qu'une LED continue de clignoter, cela indique que votre alimentation en entrée ne délivre pas exactement 9V.

Technical characteristics

Specifications
Product typeJack DC filter
InputJack DC 5.5/2.1mm
OutputsJack DC 5.5/2.1mm
General
Dimensions82 x 52mm
ColorArgent
Weight150g
Package1x DC 9V jack filter
1x DC jack cable 5.5/2.1mm to jack 5.5/2.1mm
2x Adapter jack 5.5/2.5mm to jack 5.5/2.1

Data sheet
InputJack DC 5.5/2.1mm
OutputJack DC 5.5/2.1mm
ColorSilver
Output voltage (V)9.0
Output current (A)NC
Input voltage (V)9.0
Power SupplyPower supply filter

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Très bon produit
Utilisé avec un DAC Aune X1s GT (BT) connecté en USB à un PC (Win 11) équipé de la carte Matrix "element H" (drivers natifs pour les deux).
Ce filtre a permis de révéler toutes les qualités de ce DAC.
Le son est maintenant naturel, la musique est là.
Merci à Audiophonics.
