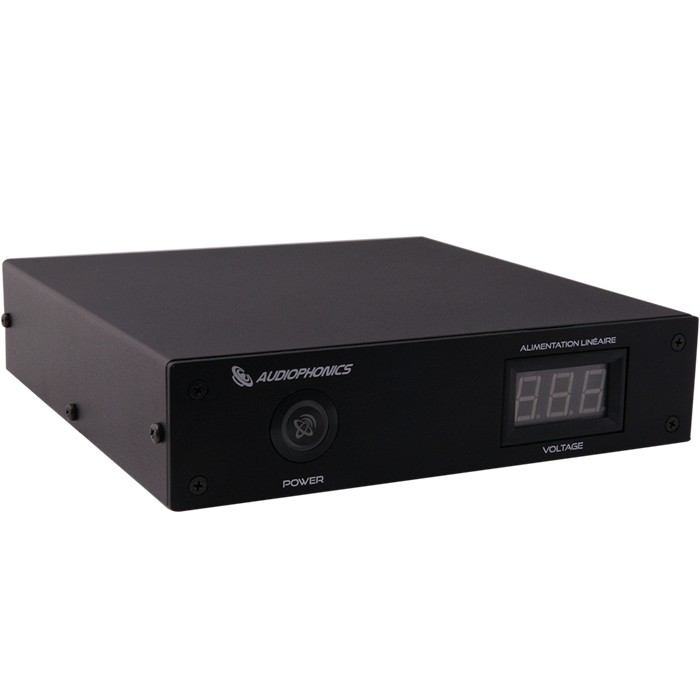

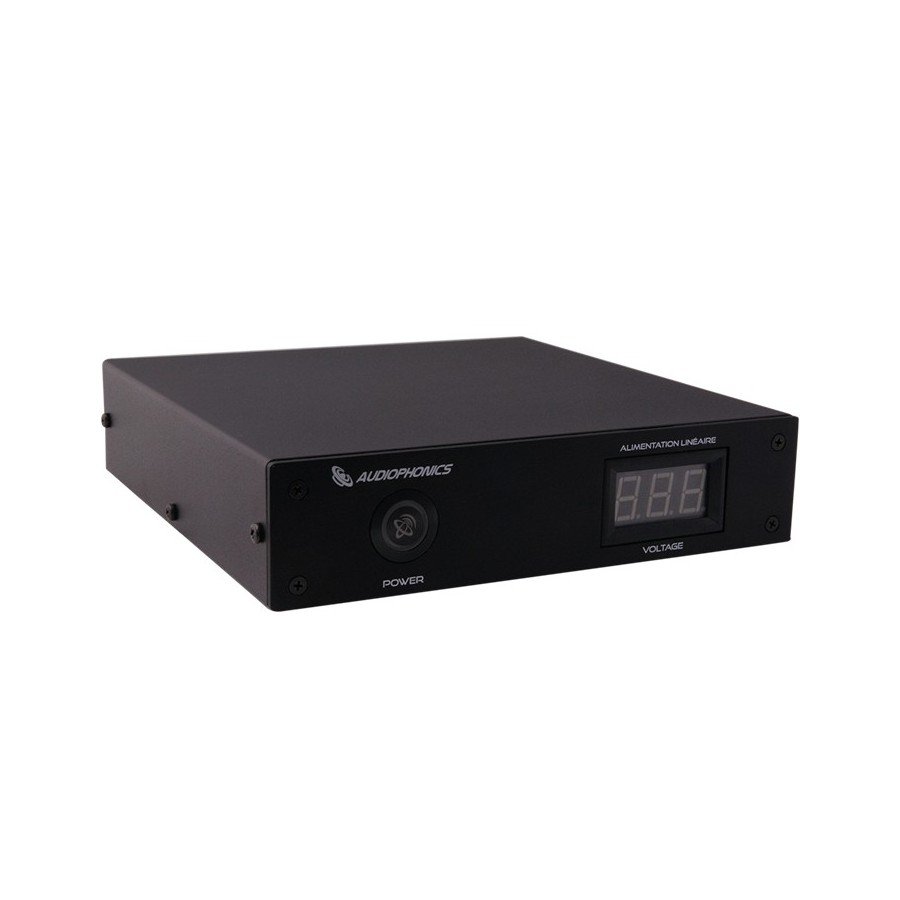

Linear stabilized power supply 5V 5A Squeezebox Touch © Black V3

Linear stabilized power supply 5V 5A Squeezebox Touch © Black V3.0

Evolution of our previous power supply, this one comes back to us equipped with a digital display in a more compact housing using the new module PSU S2.

This new 12V linear stabilized discrete power supply is ideal for powering any audio device requiring this voltage, V-DAC, TA2020, etc.

This power supply uses a linear module capable of delivering 4 to 24 VDC (we can configure it according to your needs to the voltage of your choice on request in comment field).


Features:/ Strong>

• Housing with aluminum front 3mm Black
• Commissioning viaON / OFF button illuminated with blue halo
• Outputs on Jack DC 1.3 and 2.5 jacks
• Transformer 30VA - 2 x 5V
• 4 diodesBYR29 F on radiator
• 6 CapacitorsPANASONIC FC 1200uF / 63V Low ESR (105 °)
• Voltage Regulator LINEAR TECHNOLOGY LT1083 5A
• 2 CapacitorsPANASONIC FC 330uF / 35V
• 6 CapacitorsMKP
• Integrated discharge resistance
• Output Voltageinternally adjustable
• Output + V: Rectified voltage
• Interconnect cables supplied separately:
  • Power cable Jack DC 2.5 / 2.1mm 0.5m
  • Cable DC Jack to Microphone Connector for 1.5m Power

Specifications:

• Blue voltage display
• Dimensions: 185 x 185 x 50 mm
• Weight: 1.7 kg

illustration with interconnecting cables - sold separately:

Drawing:Can be used with AudioPhonics U-SaberWith l'USB adapter

Also available in silver
