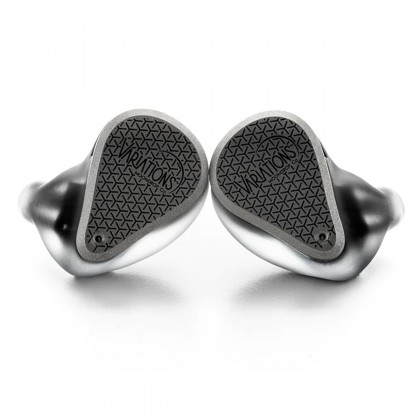

MOONDROP VARIATIONS Hybrid In-Ear Monitors IEM Dynamic / Balanced Armature / Electrostatic Drivers

With the Variations in-ear earphones, Moondrop offers an exceptional model, integrating no less than five speakers in a hybrid design. There are two electrostatic drivers, two Balanced Armature drivers and a final dynamic driver, each with an advantage in terms of sound reproduction, providing a balanced, accurate and dynamic sound.

No customer reviews yet, login to write a review.

By buying this product you get 52 loyalty points


Reference : 16872
New product

520,00 €tax incl.

433,33 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Moondrop Variations

Hybrid In-Ear Monitors IEM Dynamic / Balanced Armature / Electrostatic Drivers

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique

With the Variations in-ear earphones, Moondrop offers an exceptional model, integrating no less than five speakers in a hybrid design. There are two electrostatic drivers, two Balanced Armature drivers and a final dynamic driver, each with an advantage in terms of sound reproduction, providing a balanced, accurate and dynamic sound. In addition to this architecture, a 3D-printed filter structure and frequency separation system ensures an excellent amplitude-frequency and phase-frequency response.

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique
1Sandblasted matte stainless steel panel
2Dual high-performance Sonion electrostatic speakers
3Liquid Crystal LCP 10mm diaphragm dynamic speaker
4Custom Balanced Armature Softears D-Mid-B midrange drivers
5Universal CIEM 0.78mm connector
6Medical resin cavity and filter
7Knowles Sound Dampening

5-speaker hybrid design

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique

Dynamic driver

The bass is provided by the new dynamic driver with a 10mm Liquid Crystal composite diaphragm and internal copper cavity. This diaphragm, extremely thin with a thickness of only 9µm, offers a perfectly balanced damping.

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique

Balanced Armature drivers

The dual Balanced Armature drivers are custom designs supplied by Softears. They offer both an excellent transient response, a very detailed sound but also offer very good amplitude-frequency characteristics, perfectly complementing the other drivers in these headphones.

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique

Electrostatic speakers

The IEM Variations have two Sonion speakers on board to take care of the treble reproduction. They provide high efficiency, beautiful dynamics and great precision.

A complex filtering system

To provide excellent frequency response and consistent phase across all frequencies, the Variations earphones take the hybrid filter design of the Blessing2 IEMs and enhance it. Using high-precision 3D printing, the Variations feature a physical crossover combined with damping materials to provide low-frequency bandpass and mid-treble low-pass filtering.

For this complex 3D printing, Moondrop collaborated with HeyGears, a company specializing in high-precision resin 3D printing with DLP technology.

Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique
Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique
Moondrop Variations Écouteurs Intra-Auriculaires IEM 5x Haut-Parleurs Dynamique / Balanced Armature / Électrostatique

High purity 6N copper cable

The Variations earphones are delivered with a detachable cable (CIEM 0.78mm) and therefore replaceable. The supplied cable consists of high-purity OCC 6N copper conductors, which are independently insulated and twisted together. Single-ended Jack 3.5mm, balanced Jack 2.5mm and balanced Jack 4.4mm adapters are also provided, allowing the Variations to be adapted to the vast majority of sources.

Technical characteristics

Specifications
Product typeIn-ear monitors (IEM)
Effective frequency response20Hz-20kHz (IEC60318-4, -3dB)
Sensitivity118dB/Vrms @ 1kHz
Impedance15.2Ω @ 1kHz ±15%
THD< 1% @ 1kHz
DriversBass : 1x 10mm dynamic speaker with LCP Liquid Crystal diaphragm
Midrange : 2x Balanced Armature custom Softears D-Mid-B drivers
Treble : 2x Sonion high performance electrostatic speakers

Data sheet
ColorSilver
ColorBlack
Impedance (Ω)15.2
Efficiency / Sensitivity (dB)118.0
Lowest frequency (Hz)20
Highest frequency (Hz)20000
WirelessNo
