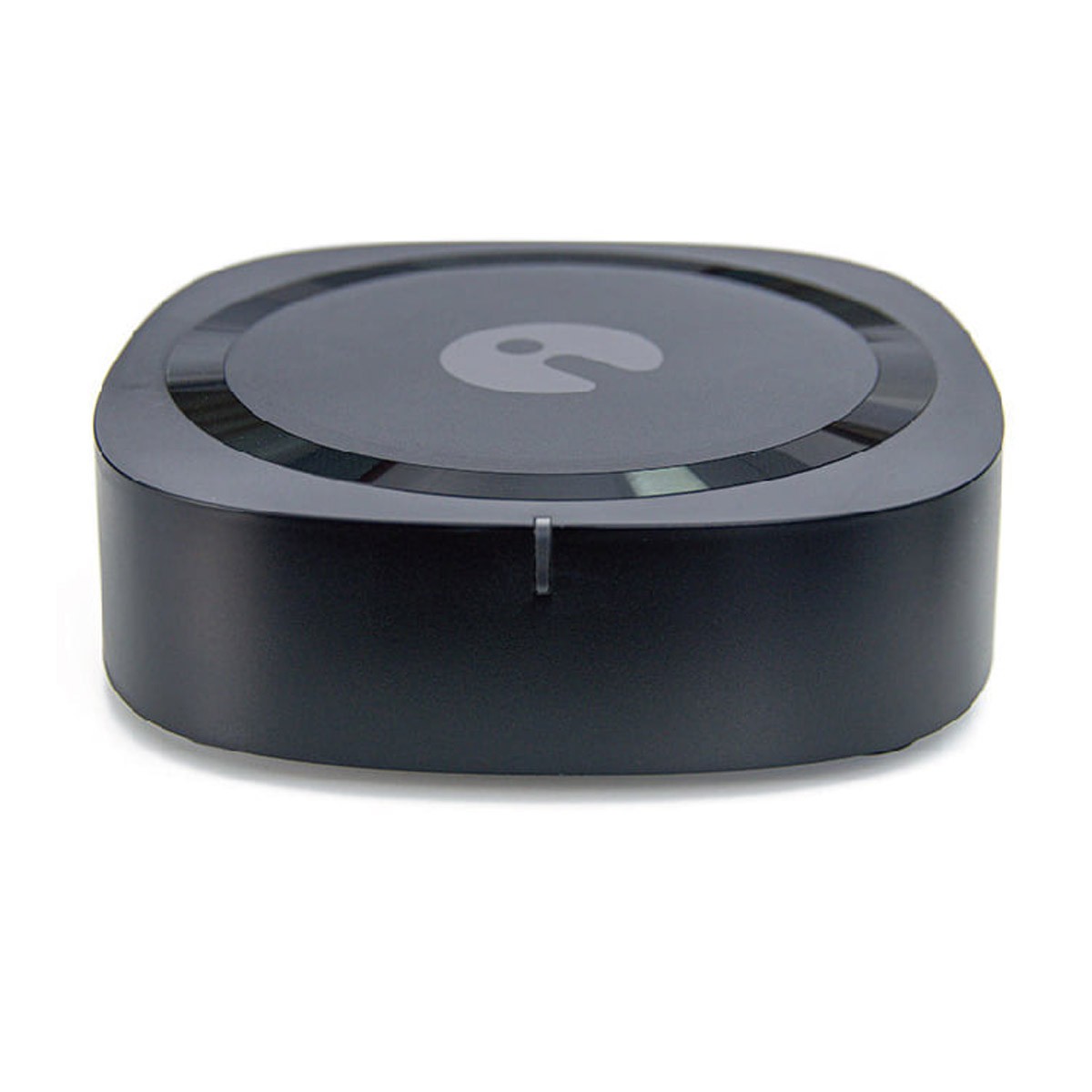

Amplifier Streamer WiFi DLNA AirPlay Bluetooth 5.0 2x80W 4 Ohm 24bit 192kHz
iEast offers with the AMP80 a Class D amplifier and network player combo that is efficient, powerful and versatile. Its amplifier stage based on a TDA7498E chip allows it to develop a comfortable power of 2x80W under 4Ω or 2x50W under 8Ω. Its network section it embeds both a Bluetooth 5.0 receiver and a WiFi receiver, allowing very easy access to your audio files, whether they are stored on a smartphone, a computer or a NAS. The AMP80 supports DLNA/UPnP and Airplay streaming protocols, as well as Spotify Connect and QPlay. It also supports many of the major streaming services, such as Deezer, Tidal, Spotify, Amazon Music, Qobuz, Napster and web radio via TuneIn. In addition to its network capabilities, the AMP80 also provides an auxiliary input on 3.5mm jack and a digital coaxial input. On the output side, there are speaker terminals as well as a subwoofer output allowing the integration of a complete 2.1 system.

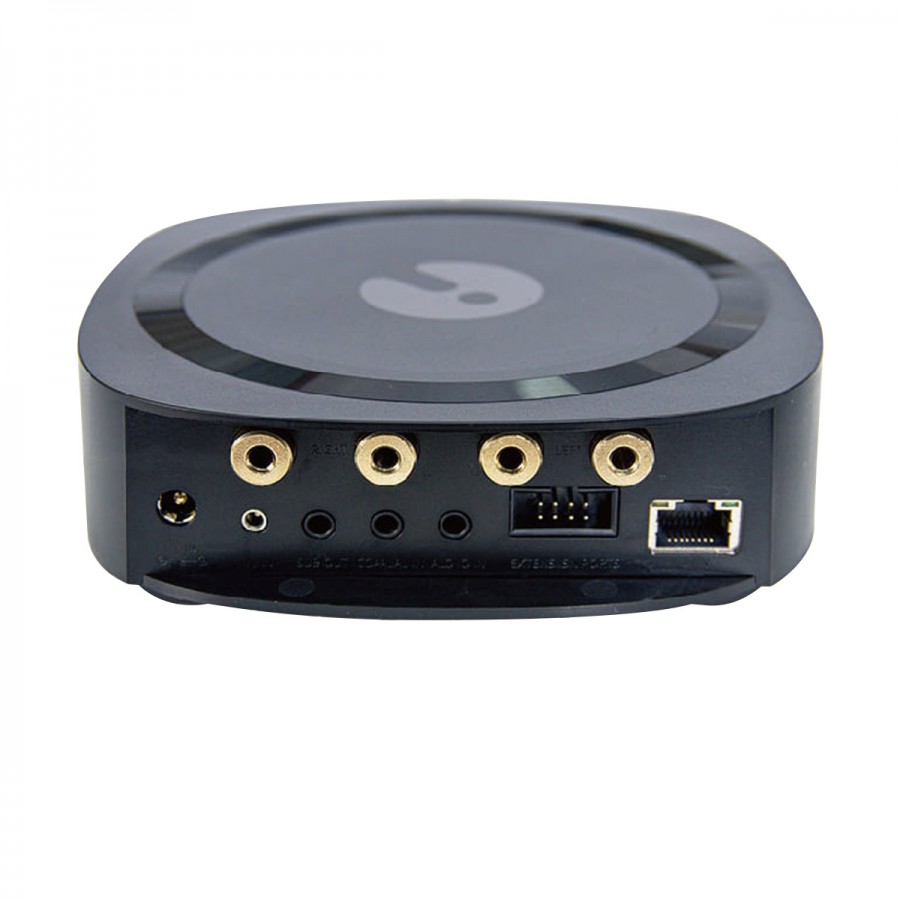

1 | Speaker terminals |
2 | Power connector 32VDC 4.75A |
3 | IR input |
4 | Subwoofer output |
5 | Coaxial input |
6 | Jack 3.5mm input |
7 | Extension port |
8 | Ethernet RJ45 input |
Specifications | |
---|---|
Product type | Amplifier Streamer |
Amplification type | Class D |
Amplification chip | TDA7498E |
Output power | 2x 80W @ 4Ω, 1kHz, 1% THD+N 2x 50W @ 8Ω, 1kHz, 1% THD+N |
Input sensitivity | ~700mV |
Max input voltage | 1V |
SNR | 90dB @ THD+N < 1%, 1kHz, gain = 26dB |
THD+N | < 0.1% @ 1kHz |
Connectivity | WiFi IEE802.11 b/g/n 2.4GHz Bluetooth 5.0 |
Inputs | WiFi Bluetooth 1x Ethernet RJ45 10/100M 1x Jack 3.5mm 1x Coaxial |
Outputs | Speaker terminals 1x Subwoofer output |
Supported file formats | APE, FLAC, MP3, WAV, AAC, AAC+, WMA, ALAC, AIFF |
Supported transmition protocols | DLNA, AirPlay, Spotify Connect, QPlay |
Supported Bluetooth codecs | SBC |
Supported sampling rates | PCM up to 24bit 192kHz |
Smart Home control | TCP/IP |
General | |
---|---|
Supply voltage | 32VDC 4.75A |
Dimensions | 136 x 134.8 x 40.1mm |
Weight | 320g |
Color | Black |
Package | 1x iEast AMP80 1x Power adapter 1x Remote control 1x IR Cable |
Input | Jack 3.5mm |
Input | RJ45 |
Input | Optical Mini-Toslink |
Input | Bluetooth |
Input | WiFi |
Output | Optical Mini-Toslink |
Output | Jack 3.5mm |
DAC / ADC Chip | NC |
Max sampling rate | 192kHz |
Color | Black |
Channel | 2 (Stereo) |
Class | Class D / T |
Amplifier chip | TDA7498E |
Power (W) | 80.0 |
Remote Control | Yes |
Streaming services & Network protocols | Spotify Connect |
Streaming services & Network protocols | Deezer |
Streaming services & Network protocols | Tidal |
Streaming services & Network protocols | Web radios |
Streaming services & Network protocols | AirPlay |
Streaming services & Network protocols | Spotify |
Streaming services & Network protocols | Qobuz |
Streaming services & Network protocols | Amazon Music |
Streaming services & Network protocols | DLNA |
