3E Audio A5Class D Stereo Amplifier PBTL 2xTPA3251 2x150W 4 ohm
3E Audio, a recognized player in the DIY world, now offers a Class D Stereo amplifier incorporating audiophile Hi-Fi components. The A5 amplifier is based on two TI TPA3251 chips in PBTL configuration, and two dual OPA1656 OPAs. This means it can deliver up to 2x150W into 4 ohm.
In terms of connectors, the 3E Audio A5 features an RCA input, a practical balanced XLR/Jack 6.35mm combo input, and an output on speaker terminals. The RCA input gain can be adjusted (LOW=23dB, HIGH=26dB), and the preamplifier stage and volume control can be bypassed for use as a power amplifier. Versatile and high-performance, this little amplifier is able to offer a good reserve of power while preserving the final sound reproduction.
A7
A7se
A7 Mono
A5se
A5
Amplification chip
2x TPA3255
2ch - PBTL
1x TPA3255
2ch - BTL
1x TPA3255
1ch - PBTL
1x TPA3251
2ch - BTL
2x TPA3251
2ch - PBTL
Output power
(4 ohm, THD+N=1%)
2x 250W
2x 230W
1x 260W
2x 140W
2x 150W
Output power
(8 ohm, THD+N=1%)
2x 140W
2x 130
1x 150
2x 70W
2x 80W
Load impedance
2-16 ohm
4-16 ohm
2-16 ohm
4-16 ohm
2-16 ohm
3E Audio A5: Two TPA3251 chips
The two TPA3251 amplifier chips offer a consistent level of output power, as the 3E Audio A5 delivers up to 2x150W into 4 ohm and up to 2x80W into 8 ohm (THD+N = 1%). In addition, the PBTL configuration maintains continuous, stable output power while reducing power losses. It also enables the amplifier to withstand loads of up to 2 ohms.
3E Audio A5: Interchangeable OPAs
The preamplifier stage of the 3E Audio A5 is made up of two double OPA1656 OPAs mounted in DIP 8 and easily replaceable with pliers, thanks to the design of the case. In fact, the OPAs can be accessed through two hatches without opening the case. Here's a non-exhaustive list of compatible OPAs: OPA1656, OPA1602, OPA2134, NE5532P, LME49720, LM4562, MUSES02, MUSES8920, NJM4580, NJM4556, NJM2068, OP249, AD827, etc.
Please take care not to damage the device or the OPAs when replacing or handling them. Any damage to the device caused by improper handling by the user (reverse mounting of OPAs, mounting of non-compatible OPAs, etc.) will invalidate the product warranty. Please refer to the manual to carry out the operation.

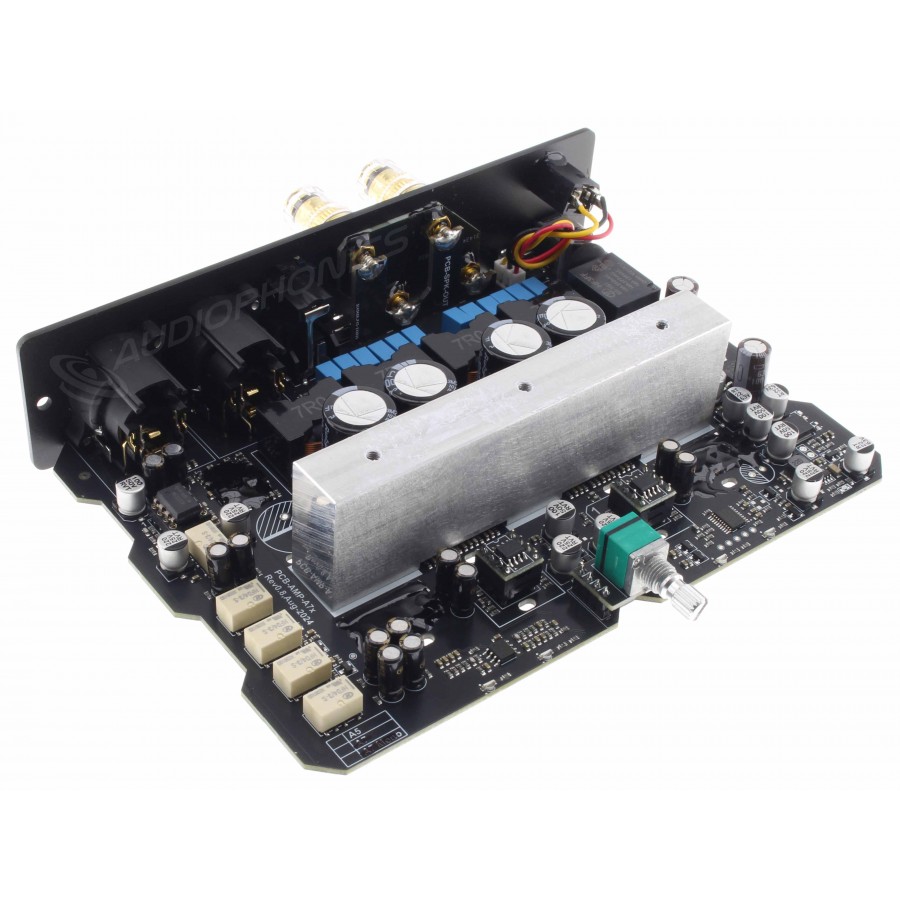

3E Audio A5: Quality components
Elna Silmic II
ELNA Silmic II capacitors have proven capacities and are often used in Hi-Fi applications.
Rubycon 63V 1000uF capacitors
Rubycon capacitors meet high current requirements, reducing noise and improving THD.
Flat-wire coils
The coils used in the amplifier provide improved linearity and reduced distortion, while delivering the best performance whatever the impedance load.
TDK capacitors
These highly reliable LC filter capacitors ensure optimum audio performance.

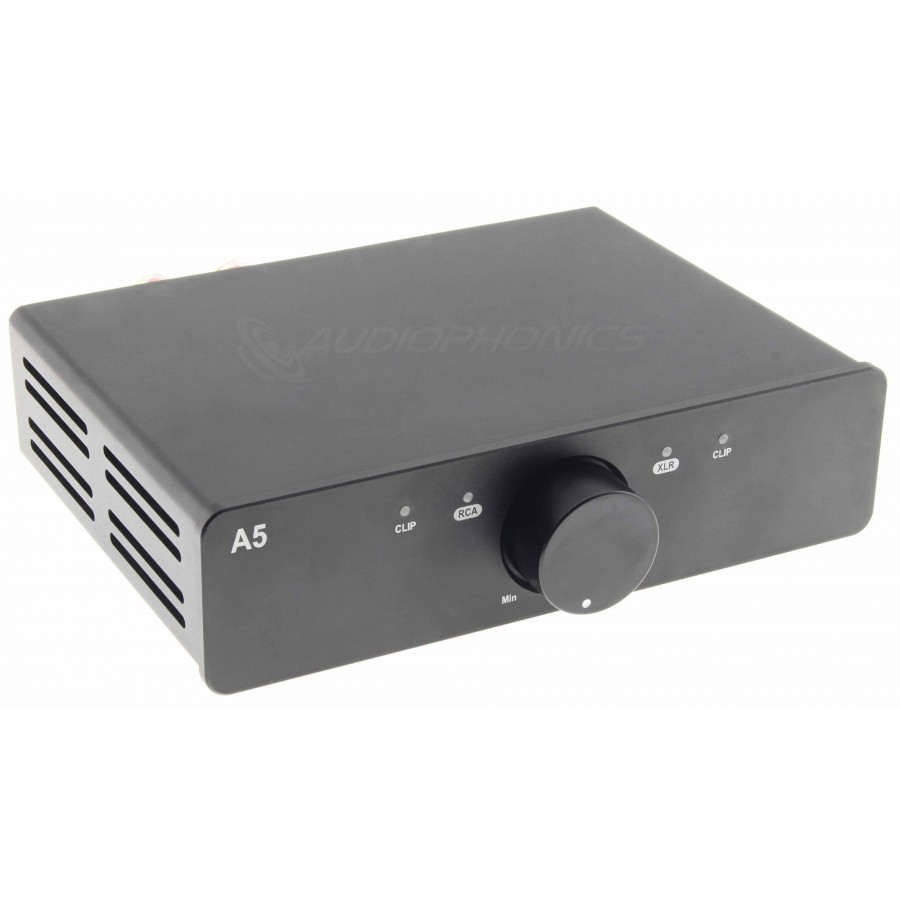

3E Audio A5 overview
| 1 | Left channel status LED |
| 2 | RCA input status LED |
| 3 | Multifunction button |
| 4 | XLR input status LED |
| 5 | Right channel status LED |
| 6 | Balanced XLR/Jack 6.35mm combo input |
| 7 | RCA input |
| 8 | RCA gain control |
| 9 | Speaker terminal output |
| 10 | Volulme bypass |
| 11 | 36V-38V DC power supply via DC jack |
| 12 | 12V trigger |
3E AUDIO A5 review by Audio Science Review
" The A5 amplifier is very well thought out small amplifier with excellent feature set and performance to back it. I love features such as clipping indicator to tell you whether you are exhausting all of its power. Measurements show one of the most implementations of this architecture with no weak point other than perhaps, high frequencies. All of this for a reasonable price. I am happy to recommend the 3e-audio A5 stereo amplifier. "
Technical characteristics
| Specifications | |
|---|---|
| Product type | Class D amplifier |
| Channels | Stereo |
| Amplification chip | 2x TI TPA3251 |
| OPA | Dual OPA OPA1656 |
| Structure | PFFB |
| Inputs | 1x Single-ended RCA input 1x Balanced XLR/jack 6.35mm combo input |
| Output | 1x Speaker terminal output |
| Input impedance | RCA : 10kΩ XLR/TRS : 20kΩ |
| Volume attenuation | -50dB |
| Volume bypass | |
| RCA gain control | |
| Audio specifications (RCA IN) | |
|---|---|
| THD+N (5W) | 0.0004% @ 4Ω 0.0005% @ 8Ω |
| SNR (1% THD+N, 1KHz, A-wt) | 123dB |
| Dynamic range (1% THD+N, 1KHz, A-wt) | 123dB |
| Frequency response (±0.5dB) | 20Hz-35KHz |
| Noise (A-wt) | < 15uVrms |
| Crosstalk | -100dB |
| Gain | 23dB / 26dB |
| Input sensitivity | 1.75Vrms |
| Output power (1% THD+N) | 2x 150W @ 4Ω 2x 80W @ 8Ω |
| Output power (10% THD+N) | 2x 180W @ 4Ω 2x 100W @ 8Ω |
| Output impedance | 2Ω-16Ω |
| audio specifications (XLR IN) | |
|---|---|
| THD+N (5W) | 0.0004% @ 4Ω 0.0003% @ 8Ω |
| SNR (1% THD+N, 1KHz, A-wt) | 125dB |
| Dynamic range (1% THD+N, 1KHz, A-wt) | 125dB |
| Frequency response (±0.5dB) | 20Hz-35KHz |
| Noise (A-wt) | < 13uVrms |
| Crosstalk | -110dB |
| Gain | 17dB |
| Input sensitivity | 3.5Vrms |
| Output power (1% THD+N) | 2x 150W @ 4Ω 2x 800W @ 8Ω |
| Output power (10% THD+N) | 2x 180W @ 4Ω 2x 100W @ 8Ω |
| Output impedance | 2Ω-16Ω |
| General | |
|---|---|
| Supply voltage | 36V-38V DC 5A |
| Power consumption | OFF: <0.2W ON (no audio): 8W |
| Dimensions | 170 x 168 x 46mm |
| Weight | 1000g |
| Package | 1x 3E Audio A5 amplifier 1x 38V 5A power adapter |
| Input | RCA |
| Input | XLR |
| Input | Jack 6.35mm |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TPA3251 |
| Power (W) | 150.0 |
| Remote Control | No |
