3E AUDIO A7SE Amplifier
By buying this product you get 28 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
3E Audio A7seClass D Stereo Amplifier BTL 1xTPA3255 2x230W 4 ohm
3E Audio, a recognized player in the DIY world, now offers a Class D Stereo amplifier incorporating audiophile Hi-Fi components. The A7se amplifier is based on a TI TPA3255 chips in BTL configuration, and two dual OPA1612A OPAs. This means it can deliver up to 2x230W into 4 ohm power.
In terms of connectors, the 3E Audio A7se features an RCA input, a practical balanced XLR/Jack 6.35mm combo input, and an output on speaker terminals. The RCA input gain can be adjusted (LOW=26dB, HIGH=29dB), and the preamplifier stage and volume control can be bypassed for use as a power amplifier. Versatile and high-performance, this little amplifier is able to offer a good reserve of power while preserving the final sound reproduction.
A7
A7se
A7 Mono
A5se
A5
Amplification chip
2x TPA3255
2ch - PBTL
1x TPA3255
2ch - BTL
1x TPA3255
1ch - PBTL
1x TPA3251
2ch - BTL
2x TPA3251
2ch - PBTL
Output power
(4 ohm, THD+N=1%)
2x 250W
2x 230W
1x 260W
2x 140W
2x 150W
Output power
(8 ohm, THD+N=1%)
2x 140W
2x 130
1x 150
2x 70W
2x 80W
Load impedance
2-16 ohm
4-16 ohm
2-16 ohm
4-16 ohm
2-16 ohm
3E Audio A7se: TPA3255 chip
The TPA3255 amplifier chip offers a consistent level of output power, as the 3E Audio A7se delivers up to 2x230W into 4 ohm and up to 2x130W into 8 ohm (THD+N = 1%).

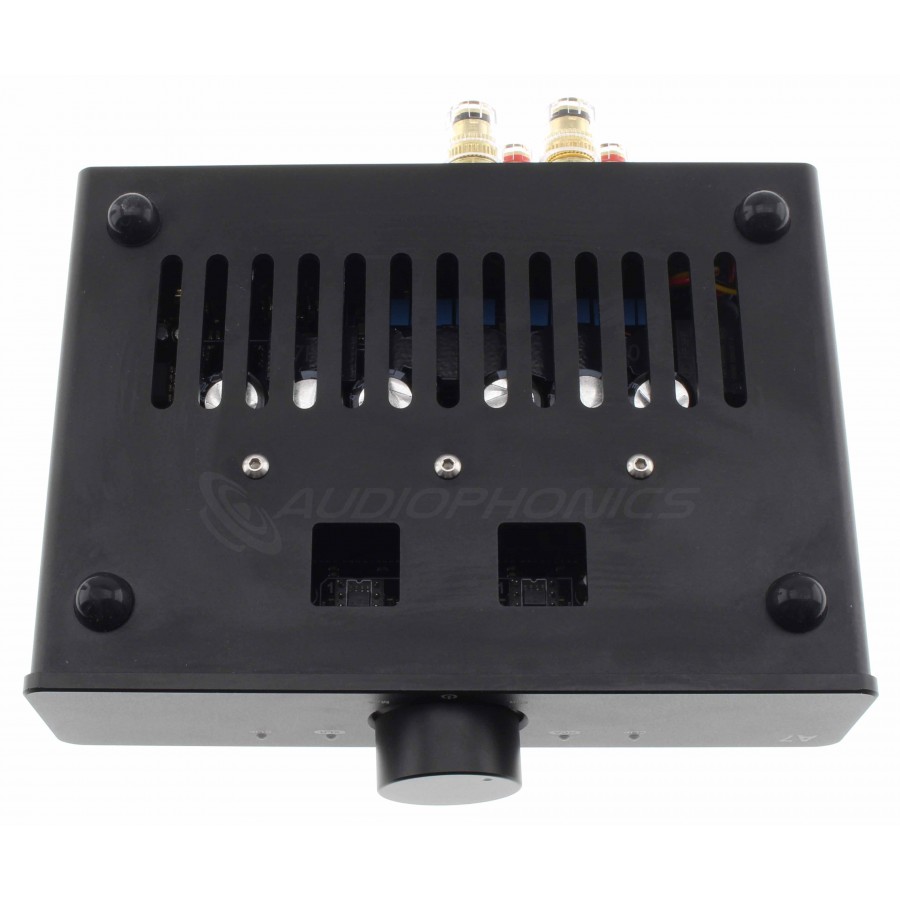

3E Audio A7se: Interchangeable OPAs
The preamplifier stage of the 3E Audio A7se is made up of two dual OPA1612A OPAs mounted in DIP 8 and easily replaceable with pliers, thanks to the design of the case. In fact, the OPAs can be accessed through two hatches without opening the case. Here's a non-exhaustive list of compatible OPAs: OPA1656, OPA1602, OPA2134, NE5532P, LME49720, LM4562, MUSES02, MUSES8920, NJM4580, NJM4556, NJM2068, OP249, AD827, etc.
Please take care not to damage the device or the OPAs when replacing or handling them. Any damage to the device caused by improper handling by the user (reverse mounting of OPAs, mounting of non-compatible OPAs, etc.) will invalidate the product warranty. Please refer to the manual to carry out the operation.
3E Audio A7se: Quality components
Elna Silmic II
ELNA Silmic II capacitors have proven capacities and are often used in Hi-Fi applications.

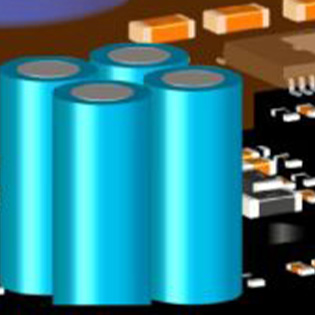

Rubycon 63V 1000uF capacitors
Rubycon capacitors meet high current requirements, reducing noise and improving THD.
Flat-wire coils
The coils used in the amplifier provide improved linearity and reduced distortion, while delivering the best performance whatever the load.
TDK capacitors
These highly reliable LC filter capacitors ensure optimum audio performance.
3E Audio A7se overview
| 1 | Left channel status LED |
| 2 | RCA input status LED |
| 3 | Multifunction button |
| 4 | XLR input status LED |
| 5 | Right channel status LED |
| 6 | Balanced XLR/Jack 6.25mm combo input |
| 7 | RCA input |
| 8 | RCA gain control |
| 9 | Speaker terminal output |
| 10 | Volume bypass |
| 11 | 38V-48V DC power supply via DC jack |
| 12 | 12V trigger |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Class D amplifier |
| Channels | Stereo |
| Amplification chip | 1x TI TPA3255 |
| OPA | Dual OPA OPA1612A |
| Structure | PFFB |
| Inputs | 1x Single-ended RCA input 1x Balanced XLR/jack 6.35mm combo input |
| Output | 1x Speaker terminal output |
| Input impedance | RCA : 10kΩ XLR/TRS : 20kΩ |
| Volume attenuation | -50dB |
| Volume bypass | |
| RCA gain control | |
| Audio specifications (RCA IN) | |
|---|---|
| THD+N (5W) | 0.0007% @ 4Ω 0.0006% @ 8Ω |
| SNR (1% THD+N, 1KHz, A-wt) | 122dB |
| Dynamic range (1% THD+N, 1KHz, A-wt) | 122dB |
| Frequency response (±0.5dB) | 20Hz-30KHz |
| Noise (A-wt) | < 20uVrms |
| Crosstalk | -90dB |
| Gain | 26dB / 29dB |
| Input sentivity | 1.75Vrms |
| Output power (1% THD+N) | 2x 230W @ 4Ω 2x 130W @ 8Ω |
| Output power (10% THD+N) | 2x 280W @ 4Ω 2x 170W @ 8Ω |
| Output impedance | 4Ω-16Ω |
| audio specifications (XLR IN) | |
|---|---|
| THD+N (5W) | 0.0006% @ 4Ω 0.0005% @ 8Ω |
| SNR (1% THD+N, 1KHz, A-wt) | 124dB |
| Dynamic range (1% THD+N, 1KHz, A-wt) | 124dB |
| Frequency response (±0.5dB) | 20Hz-30KHz |
| Noise (A-wt) | < 15uVrms |
| Crosstalk | -100dB |
| Gain | 20dB |
| Input sensitivity | 3.5Vrms |
| Output power (1% THD+N) | 2x 230W @ 4Ω 2x 130W @ 8Ω |
| Output power (10% THD+N) | 2x 280W @ 4Ω 2x 170W @ 8Ω |
| Output impedance | 4Ω-16Ω |
| General | |
|---|---|
| Power supply | 38V-48V DC 5A/10A |
| Power consumption | OFF : < 0.4W ON (no audio) : 7W |
| Dimensions | 170 x 168 x 46mm |
| Weight | 1000g |
| Package | 1x 3E Audio A7se amplifier 1x 48V 10A power adapter |
| Input | RCA |
| Input | XLR |
| Input | Jack 6.35mm |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TPA3255 |
| Power (W) | 230.0 |
| Remote Control | No |
