AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm

The BT60W V2 is a revised and corrected version of the excellent BT60W amplifier, more powerful and more ergonomic!

Average votes for this product
4.7 / 5

By buying this product you get 3 loyalty points


Reference : 12043
New product

39,90 €tax incl.

33,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

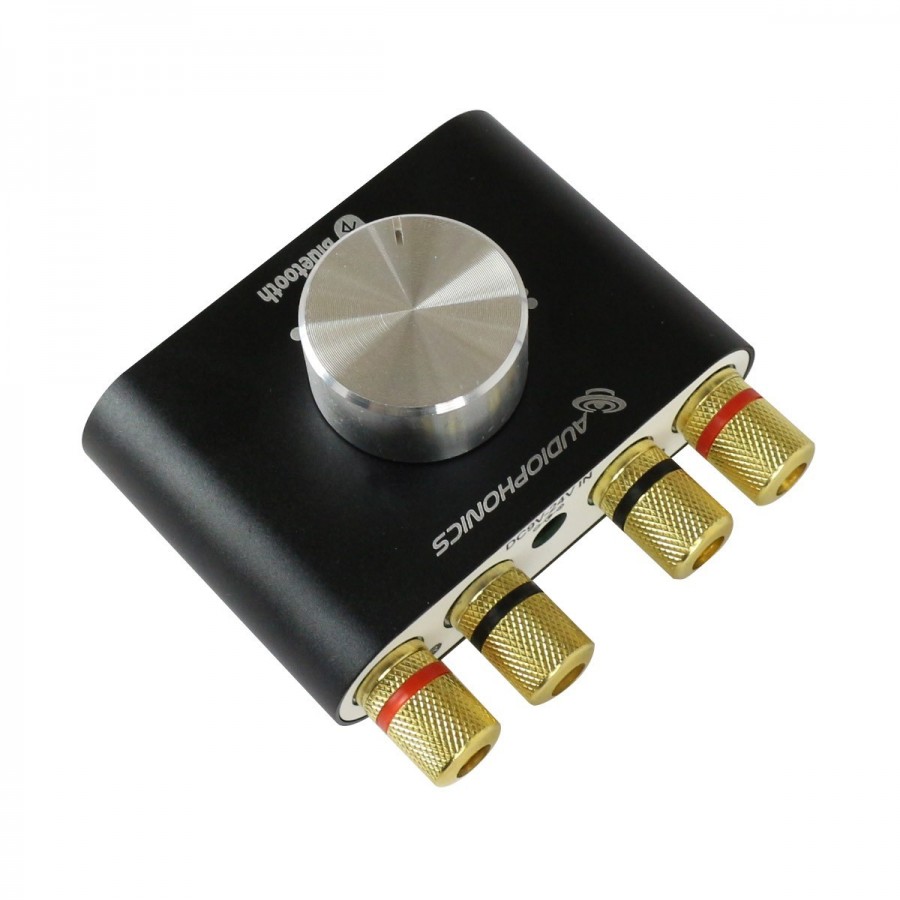

Audiophonics BT60W V2

Bluetooth 5.0 DAC Amplifier 2x50W

Audiophonics BT60W V2

Audiophonics offers you a revised and corrected version of the compact but no less excellent BT60W amplifier with version V2. On the menu of improvements: an increase in power and more ergonomic entries.

Small but powerful

Now equipped with two 50W TPA3116D2 amplifier modules, the BT60W V2 will offer you a significant boost of power, ideal for use with a computer, tablet or smartphone as input.

Ergonomics first and foremost!

To adapt to your needs in terms of connections, the BT60W V2 offers a USB input and an auxiliary jack 3.5mm.

You do not want to be constrained by the use of cables and want to stream your music from your sofa? It comes with a Bluetooth 5.0 controller!

As for the audio output, a terminal block allows you to connect the amplifier to your speakers. Finally, the power plug is now placed on the back, much more convenient for wiringopre.

A volume control also allows you to simply adjust the audio level of your device.

The Bluetooth / AUX switching is done automatically by detecting the presence or not of a 3.5mm jack.

An amp yes, but a DAC too

This BT60W V2 offers a great versatility since in addition to being a quality amplifier, it also proves to cover the function of DAC. In addition, the Micro-USB supports a sampling rate of 16bit / 44kHz. What to offer you a sound reproduction of quality!

Designed around a chassis made of black anodized aluminum and white plastic, it is both extremely compact but also very elegant. It can be easily integrated into an audio system or on your desktop.

Audiophonics BT60W V2

Specifications

Connections: Inputs
Micro-USB Soundx1
3.5mm Jackx1
Bluetooth 5.0Yes
Terminal Blocks-
Specifications
Amplifier Modules2x TPA3116D2
Power2x50W (4Ω)
Bluetooth range10m
SwitchOn / Off
Volume ControllerYes
Power supply (included)12V 5A via Jack DC 5.5 / 2.5mm - Accepts a voltage from 9 to 24V
Amplifier Modules2x TPA3116D2
Miscellaneous
Chassis materialBlack anodized aluminum and white plastic
Dimensions78 x 70 x 38mm
Weight118g
Package
3.5mm Male to RCA Stereo Male to Male Cable1x
3.5mm Male to 3.5mm Jack Cablex1
Power supply adapter 12V 5Ax1
Noticex1

Audiophonics BT60W V2

Data sheet
InputJack 3.5mm
InputBluetooth
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3116D2
Power (W)50.0
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
4.7 / 5
37 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Utilisé dans une voiture ancienne
Je l'ai détourné de son usage principal Maison en le mettant dans ma voiture ancienne.
Branché en 12V (fusible impératif), connecté à deux HP de 40Wx4ohms chacun, c'est parfait !
Seul bémol, le son de la voix lors de l'allumage de l'ampli est un peu fort au niveau medium du son de l'ampli.
 (0)
 (0)
This review has been posted for AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm
Note :
 4/5
Date :
Does its job.
Bought it for BST-1 bass shakers, (simracing/music) but it was too weak for them, so I use it for smaller (15W) exciters now (Sim pedals), there its okay.
Had a faulty one that went up in smoke, got it replaced.
Knob is a little noisy when used, but other than that its okay, for the price for low wattage stuff, with integrated USB DAC its good value.
 (0)
 (0)
This review has been posted for AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm
Note :
 5/5
Date :
works great
everything works as described, using it to run BST-1 shaker and it works great
 (0)
 (0)
This review has been posted for AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm
Note :
 5/5
Date :
Petit par le prix et la taille, mais puissant et musical !
Pour :
- Minuscule, facile à installer n’importe où sur un bureau.
- Gros son incroyable pour sa taille. Changer l’alimentation d’origine 12V 5A par une 19V 4.74A d’un PC portable augmente le son … et le plaisir. NB. Une alim avec prise de terre provoque un ronflement.
- Entrées BT et USB de même qualité (aucun souffle ni crachotement) mais le niveau du BT est plus élevé que l’USB.
- Un décalage image-son apparaît sur certaines vidéos Youtube : basculer alors sur USB au lieu de BT.

Contre :
- Entrée AUX grésille et crachote, à éviter si possible.

Branché sur des JBL L96 (8 Ohms, 89 dB, 125 W) et des Triangle Antal ESW (8 Ohms, 91 dB, 120 W) : que du bonheur musical, des basses profondes et solides, une clarté de son sur toutes les fréquences que je peux encore entendre à 64 ans. Nul besoin de caisson de basses. Pourvu que les enceintes soient bien placées à bonne hauteur, au bon écartement et bien orientées, on obtient une belle image sonore en prime.

Sur des enceintes Surround Eltax AV2000 90W, ça manque de basses par rapport à une enceinte JBL Xtreme II mais le BT60W n'y est évidemment pour rien !

Pour équiper un bureau, je n'ai jamais trouvé mieux à ce jour !
 (1)
 (0)
This review has been posted for AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm
Note :
 5/5
Date :
BT60W étonnant pour sa taille et son prix !
A l'origine, je cherchais à un ampli sous 12 v pour pour constituer une petite chaine autonome.
J'ai été bluffé par la qualité de cet ampli qui, testé sur des bonnes enceintes de salon, n'a presque pas montré ses limites !!
j'en reprend un autre pour remplacer une mini chaine HS.
 (0)
 (1)
This review has been posted for AUDIOPHONICS BT60W V2 HiFi USB DAC Amplifier TPA3116 Bluetooth 2x50W / 4 Ohm
