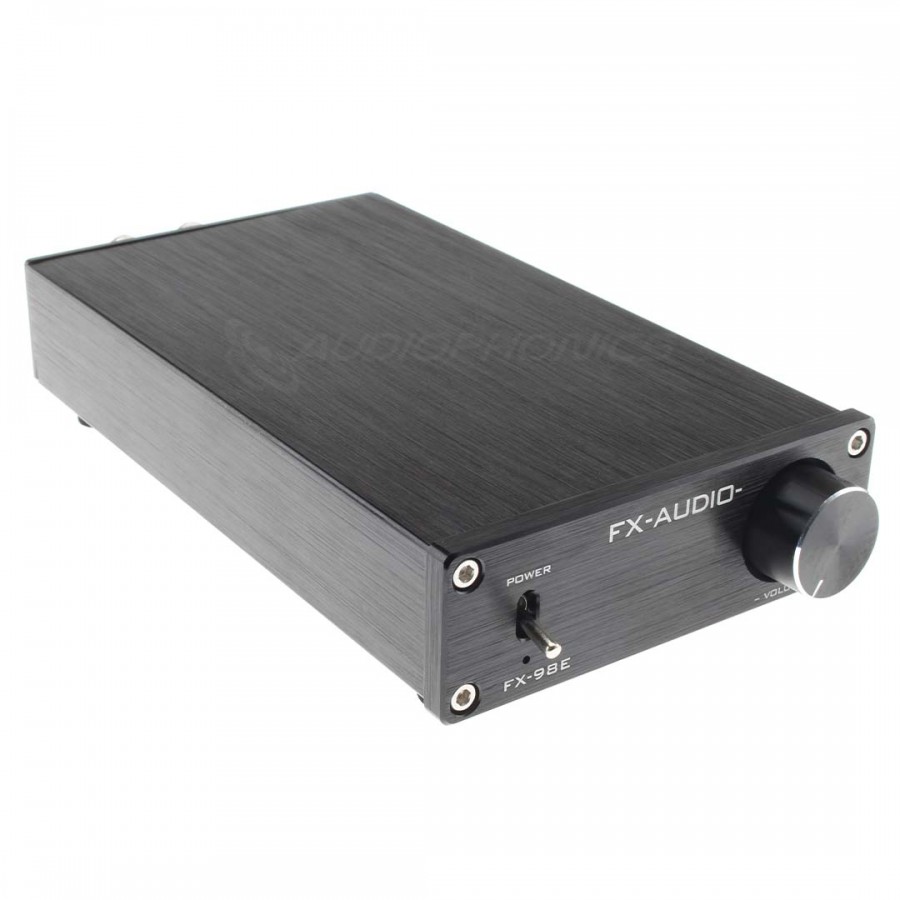

FX-AUDIO FX98E
Class D Amplifier 2x100W / 4 Ohm Black
The FX-AUDIO FX98E integrated amplifier is a Class D amplifier incorporating a TDA7498E amplifier chip, enabling it to develop power up to 2x 100W @ 4 ohm (THD+N = 1%). This means it can drive the most demanding bookshelf or floorstanding loudspeakers on a budget.
Quality design
The FX-AUDIO FX98E features high-quality circuitry and components such as an 8100uF 35V capacitor, 4 power inductors, an AMS1117 voltage regulator, a F9530N MOSFET transistor and a TDA7498E amplifier chip housed under a heatsink for efficient heat dissipation.
DIP switch gain adjustment
The gain of the FX-Audio FX98E can be adjusted via a DIP switch on the underside of the housing. Possible settings are: 23.6dB, 29.6dB, 33.1dB, 35.6dB.
FX-AUDIO FX98E rear panel
| 1 | RCA stereo input |
| 2 | Speakers terminal |
| 3 | Power supply DC 12V-32V |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Integrated amplifier |
| Amplifier chip | TDA7498E |
| Amplification type | Class D |
| Input | 1x RCA stereo |
| Output | Speakers terminal |
| Output power | 2x 100W 4 Ohm (THD+N = 1%) |
| SNR | 92dB |
| Termination impedance | 4Ω-8Ω |
| General | |
|---|---|
| Power supply | DC 12V-32V on connector jack DC 5.5 x 2.5mm |
| Dimensions | 96 x 168 x 33mm |
| Weight | 462g |
| Color | Black |
| Package | 1x FX-AUDIO FX98E integrated amplifier 1x Power adapter 32V 5A DC and power cable |
| Input | RCA |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TDA7498E |
| Power (W) | 100.0 |
| Remote Control | No |
