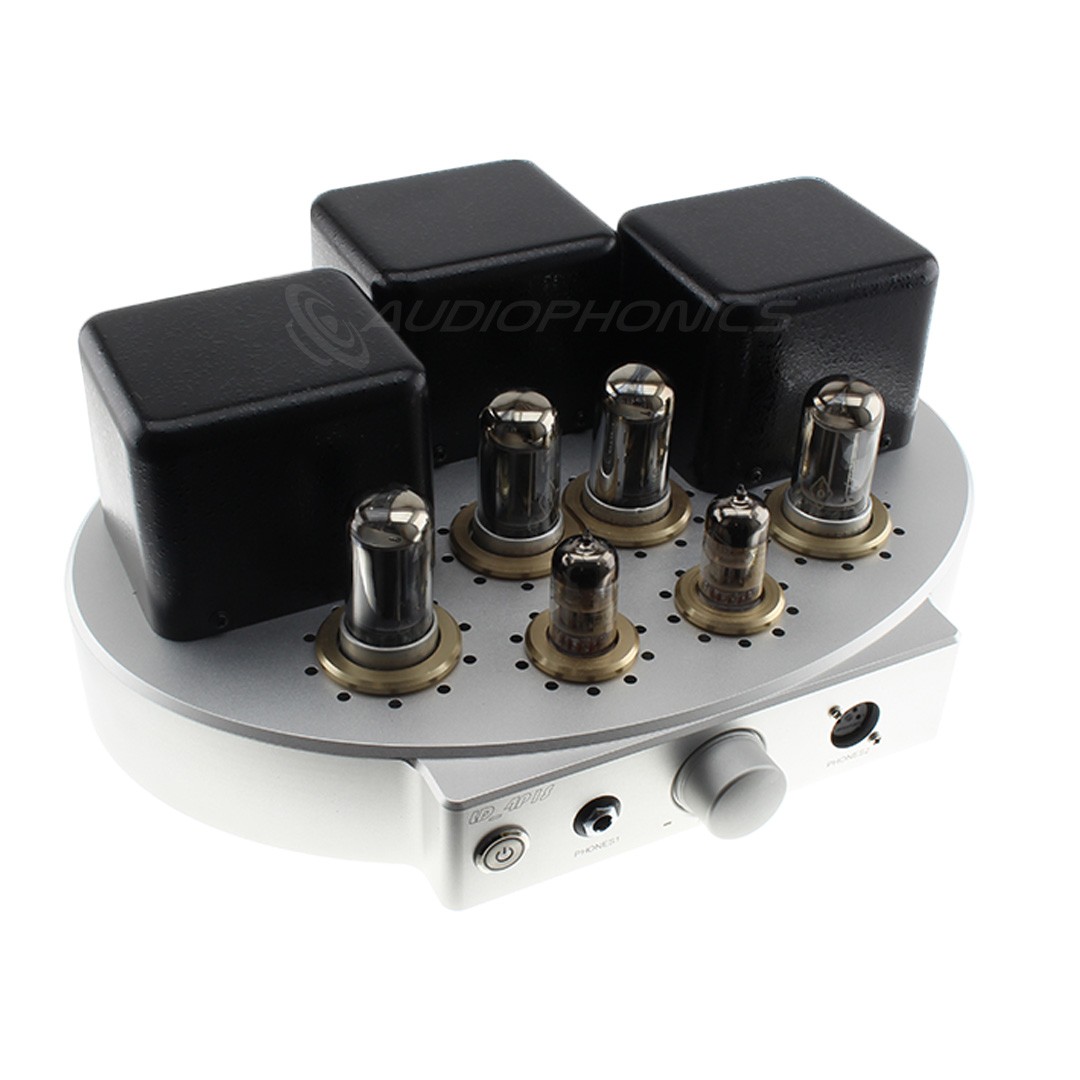

LITTLE DOT LD-4P1S
Tube amplifier / Headphone amplifier 2x8W 8 Ohm
The Little Dot LD-4P1S is the perfect solution for experiencing the warm sound of a tube amplifier, combining modernity and vintage. It serves both as an integrated amplifier and a headphone amplifier.
Flexibility
With a power output of 2x8W RMS at 8Ω, the LD-4P1S provides sufficient power for integrating a small to medium-sized high-end HiFi system. Additionally, it offers high-quality headphone listening experience with its two built-in headphone outputs on the front panel of the unit.
A simple and efficient connection
The Little Dot LD-4P1S is equipped with a stereo RCA input as well as a balanced stereo XLR input. In terms of output, it features speaker terminals for connecting speakers, as well as two headphone outputs: one in the form of a balanced 4-pin XLR and the other in the form of a single-ended 6.35mm (1/4-inch) jack.
Technical Characteristics
| Specifications | |
|---|---|
| Product type | Tube Amplifier Headphone Amplifier |
| Inputs | 1* Balanced stereo XLR 1* Single-ended stereo RCA |
| Outputs | Speaker terminals 1* Balanced XLR 4 pins headphone output 1* Single-ended Jack 6.35mm (1/4") headphone output |
| Tubes | x6 |
| Power | 2x8W @ 8Ω (speaker terminals) 3W @ 120Ω (headphone output) 1W @ 300Ω (headphone output) |
| SNR | 98dB |
| Frequency response | 20Hz - 20KHz (-0.2dB) 10Hz - 50KHz (-1dB) |
| Distortion | 0.1% (1000Hz) |
| Fuse | 250V 2A (size: ∅5*20mm) |
| General | |
|---|---|
| Power voltage | 110V 60Hz 220V 50Hz |
| Dimensions | 340*290*145mm |
| Weight | 8.9kg |
| Color | Grey / Black |
| Package | 1* Little Dot LD-4P1S 1* Power cable 1* RCA-RCA cable 1* 6.35mm jack to 3.5mm jack adapter 1x Fuse (inside the IEC socket) |
| Input | XLR |
| Input | RCA |
| Output | XLR |
| Output | Speaker terminal |
| Output | Jack 6.35mm |
| Color | Silver |
| Channel | 2 (Stereo) |
| Class | Tube amp |
| Amplifier chip | Tube |
| Power (W) | 8.0 |
| Remote Control | No |
