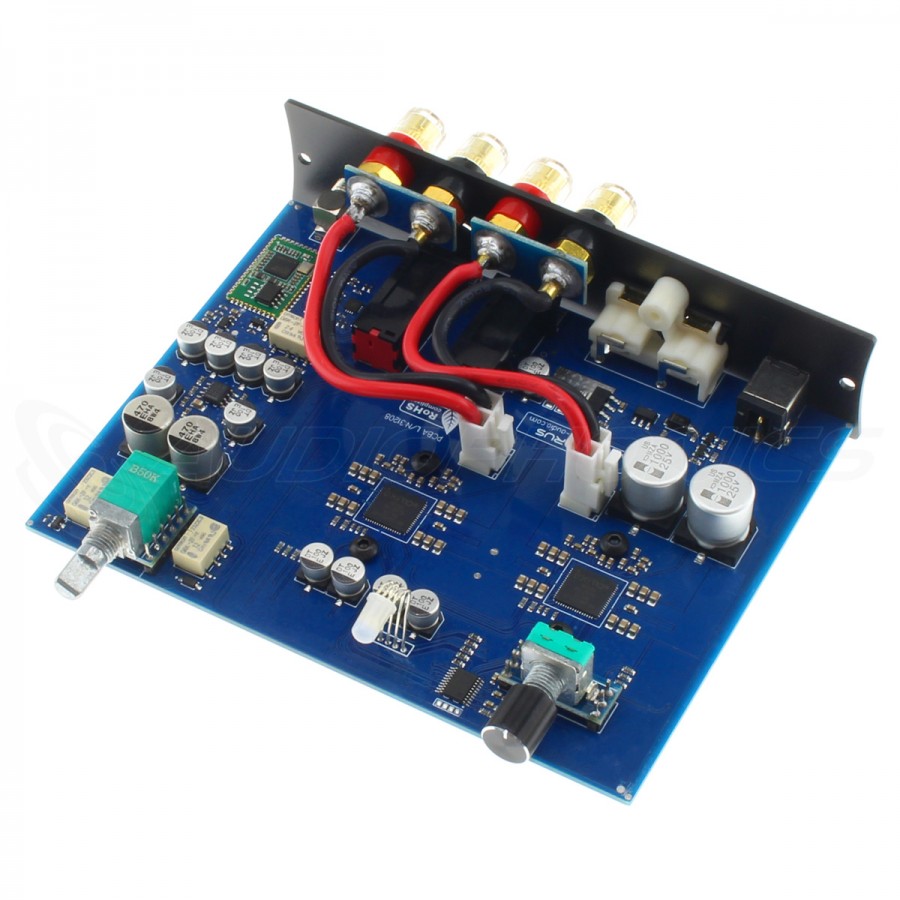

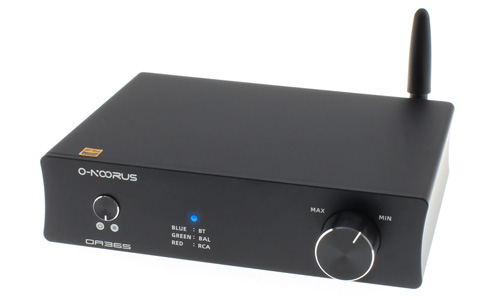

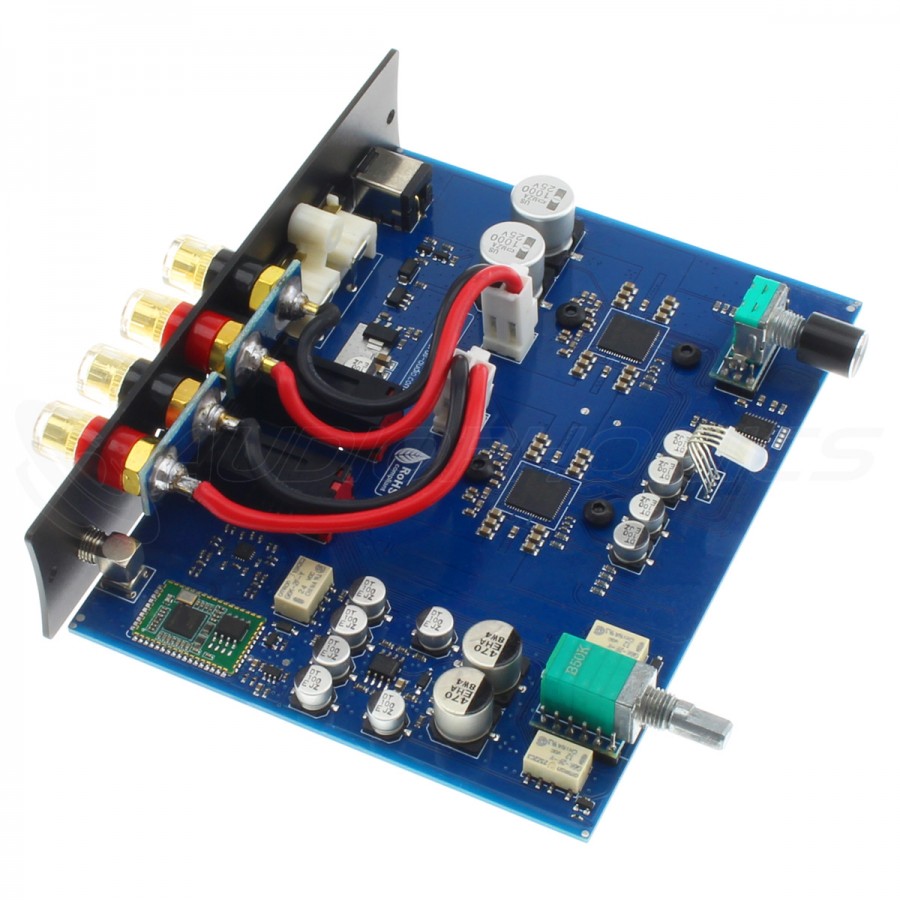

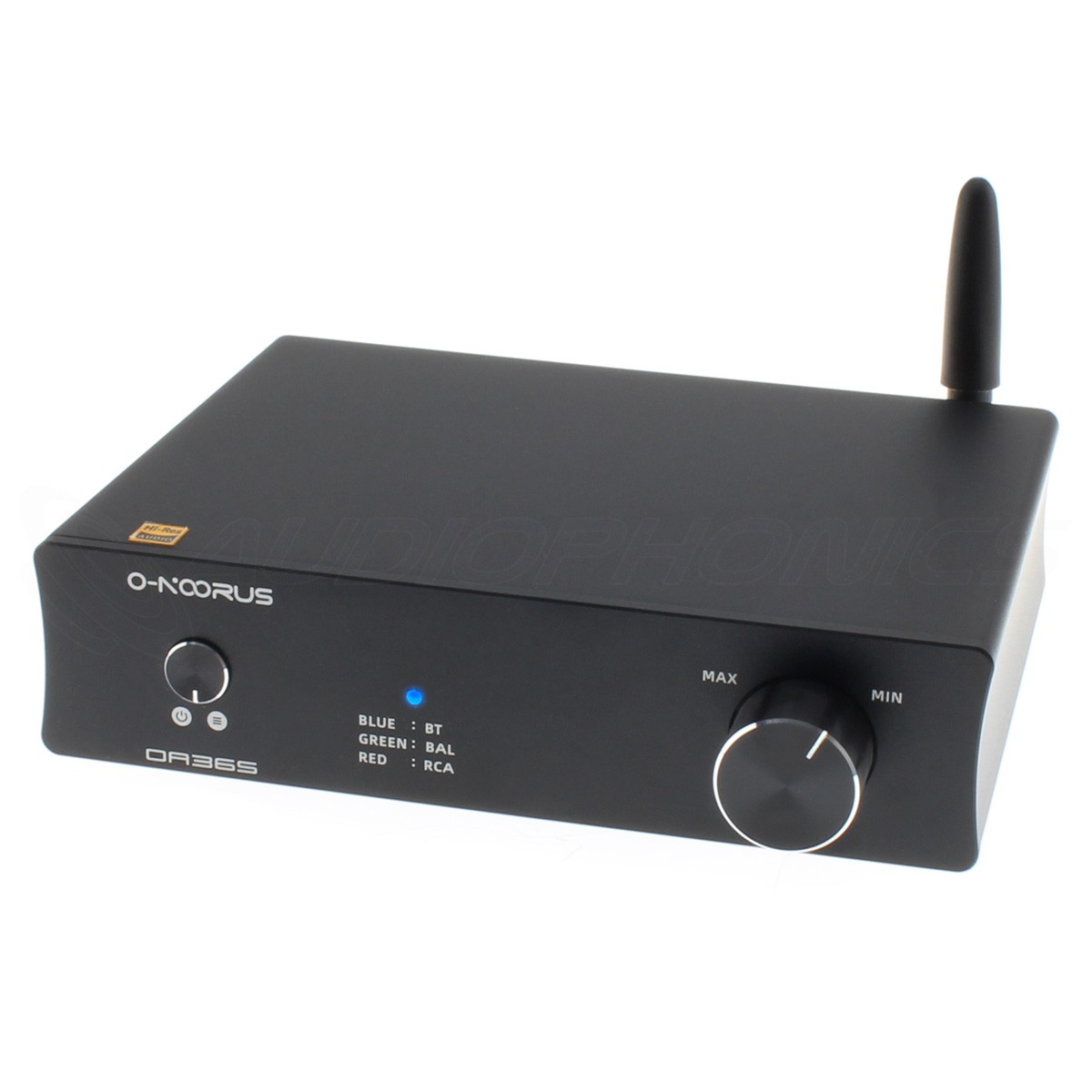

This compact, versatile and high-performance O-Noorus OA36S Class D amplifier incorporates two Infineon MA12070 amplifier chips, each dedicated to one channel. It is thus capable of delivering a comfortable 2x65W at 4Ω. In addition to an single--ended stereo RCA input and a balanced 6.35mm TRS jack, it features a Bluetooth 5.0 receiver for wireless music streaming from a smartphone or tablet, for example. The high-resolution Bluetooth transmission codecs aptX HD and LDAC are also supported. All components are housed in a sturdy, sober CNC-machined aluminum case.
Technical characteristics
Specifications | |
---|---|
Product type | Amplifier |
Amplification type | Class D |
Amplification chips | 2* MA12070 |

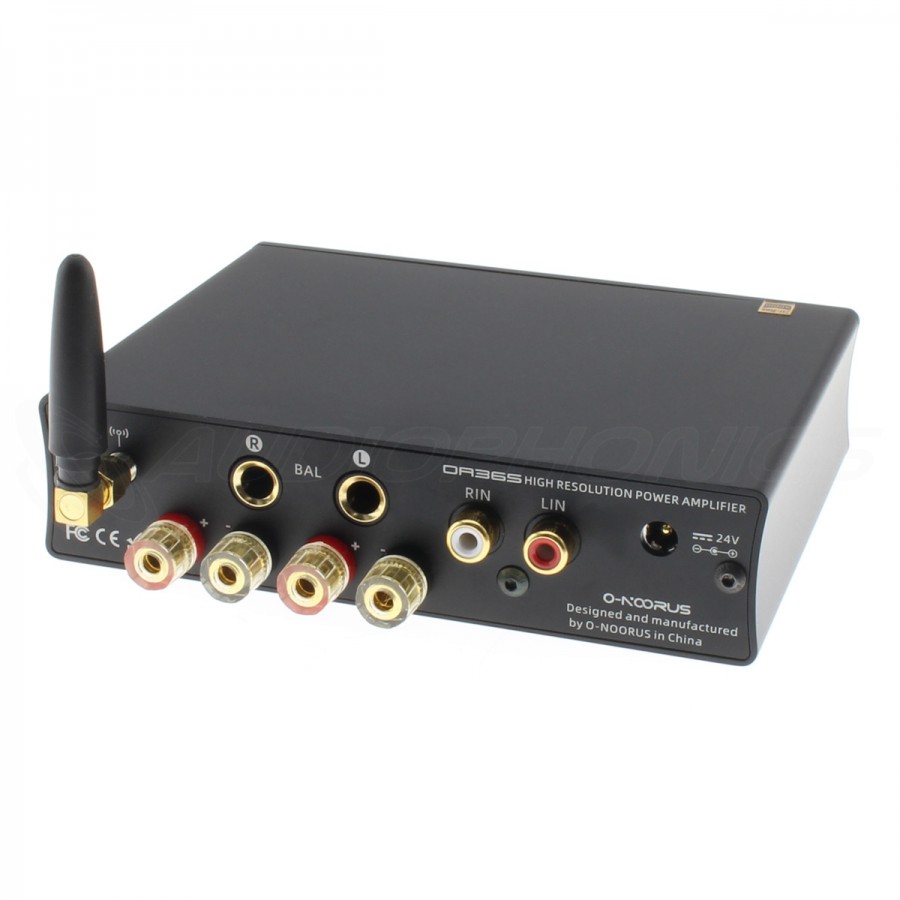

Inputs | Bluetooth 5.0 1* Single-ended stereo RCA 1* Balanced Jack 6.35mm TRS |
Output | Speaker terminal |
Output power | 2x65W @ 4Ω, 1% THD |
General | |
---|---|
Supply voltage | 24VDC (power supply included) |
PCB dimensions | 138*133*40mm |
Weight | 415g |
Housing material | Aluminum |
Color | Black |
Package | 1* O-Noorus OA36S 1* Power supply 1* Antenna |
Input | Bluetooth |
Input | Jack 6.35mm |
Input | RCA |
Output | Speaker terminal |
Color | Black |
Channel | 2 (Stereo) |
Class | Class D / T |
Amplifier chip | Infineon MA12070 |
Power (W) | 65.0 |
Remote Control | No |
