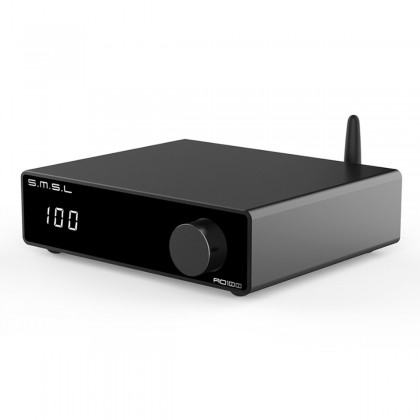

SMSL AO100
Class D Amplifier Infineon MA12070 Bluetooth 5.0 2x70W 4 Ohm
The SMSL AO100 is a small, powerful and affordable amplifier, whose careful design allows it to deliver a comfortable power and a precise and dynamic sound reproduction. An ideal ally for those who want to enjoy a HiFi audio system without breaking the bank.
Infineon MA12070
The Infineon MA12070 Class D amplifier chip used in the SMSL AO100 offers a high efficiency of 92% for a reduced power consumption level. The AO100 is thus able to develop a comfortable power of 2x70W under 4Ω, while offering a rich and dynamic sound reproduction.
Bluteooth 5.0 reception
With the SMSL AO100, no need to move to control the playback of your music. Integrating a Bluetooth 5.0 reception chip, it will allow you to broadcast your music at a distance, directly from your smartphone or tablet.
A high-performance power supply stage
The AO100 incorporates a high quality switching power supply. This provides a clean and stable electrical signal to the audio circuits.
Subwoofer output
Another feature of the AO100 is its pre-amplified subwoofer output. This will allow you to use an active subwoofer to create a true 2.1 immersive system.
| 1 | Display |
| 2 | IR Receiver |
| 3 | Multi-function button |
| 4 | RCA input |
| 5 | Bluetooth antenna |
| 6 | Right channel speaker output |
| 7 | Subwoofer output |
| 8 | Left channel speaker output |
| 9 | Power connector |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier |
| Amplifier type | Class D |
| Amplification | Infineon MA12070 |
| Output power | 2x70W @ 4Ω |
| Inputs | Bluetooth 5.0 1x Stereo RCA |
| Outputs | Subwoofer output (RCA) Speaker terminals |
| Frequency response | 20Hz-40kHz |
| Bass/Treble adjustment | -14dB ~ +14dB |
| THD+N | 0.004% |
| Channels separation | 109dB (1kHz) |
| Input sensitivity | 400mVrms |
| SNR | 104dB |
| Max input voltage | Low gain: 2Vrms High gain: 1.2Vrms |
| General | |
|---|---|
| Supply voltage | 100-240VAC (Power cable included) |
| Consumption | 36W |
| Dimensions | 150 x 128 x 39mm |
| Weight | 560g |
| Color | Black |
| Input | Bluetooth |
| Input | RCA |
| Output | Subwoofer |
| Output | Speaker terminal |
| Color | Black |
| Channel | 2.1 |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | Infineon MA12070 |
| Power (W) | 70.0 |
| Remote Control | Yes |
