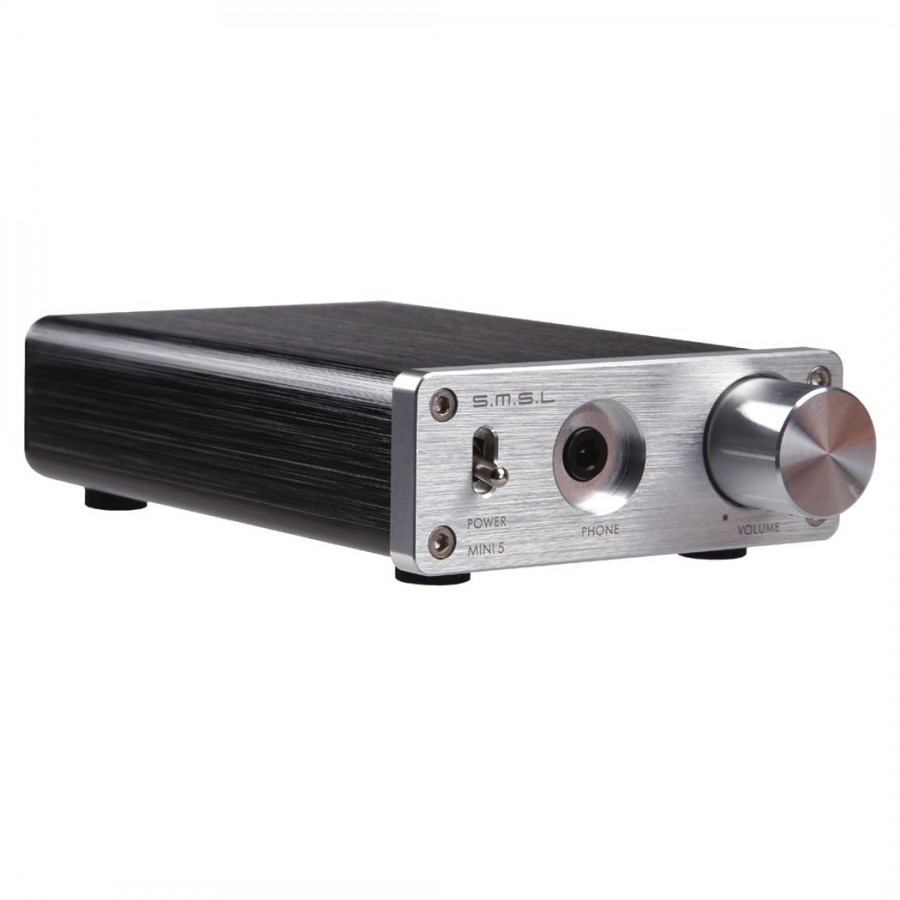

SMSL MINI 5 Amplifier TDA7492 2x 50W / Headphone Amp 130mW 32 Ohm Silver

A digital amplifier architectured around a TDA7492 delivering 2x 50W, the MINI 5 also incorporates a headphone amplifier capable of providing 130mW under 32 Ohms.
It is a compact and robust amplifier with the entire chassis in Aluminum.

The design and finishes are neat (CNC machining), its ergonomics is an indisputable advantage.
Its technical characteristics are a significant advantage compared to the competitors of this range: it is efficient and precise.

Characteristics :

• Frequency response: 20Hz - 20kHz to +/- 3dB
• Noise Ratio: 98dB
• THD: 0.1%
• Output power: 130mW (under 32 Ohms)
• Adjusting the volume
• EMI Filtering
• Short circuit protection
• Protection against overheating
• Input line Jack 3.5mm
• Headphones Jack 3.5mm
• Output terminal blocks Hp to screw
• Chassis Aluminum Anodized Silver
• Dimensions: 132x73x30mm
• Weight: 1kg
• Power supply 19V DC 3A included
