TOPPING LA90 Amplifier Class AB 2x90W 4 Ohm / 1x180W 8 Ohm Silver

Topping offers with its LA90 a powerful and efficient amplifier, which can work both in stereo and mono mode. In the first case, it is capable of delivering a power of 2x90W under 4Ω (1% THD+N), in the second it will be able to provide a power of 180W under 8Ω (1% THD+N). Moreover, the LA90 provides a combined balanced input connector, the device being able to be connected as well in Jack 6.35mm as in XLR. The LA90 offers a whole new level of performance, revealing incredible accuracy and clarity of reproduction, with linear response and extremely low noise.

Average votes for this product
5.0 / 5

By buying this product you get 89 loyalty points


Reference : 16387
New product

899,00 €tax incl.

749,17 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

Ce produit a été remplacé par le modèle Topping LA90D.

Topping LA90

Amplifier class AB 2x90W 4Ω / 1x180W 8Ω Silver

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

Topping offers with its LA90 a powerful and efficient amplifier, which can work both in stereo and mono mode. In the first case, it is capable of delivering a power of 2x90W under 4Ω (1% THD+N), in the second it will be able to provide a power of 180W under 8Ω (1% THD+N). Moreover, the LA90 provides a combined balanced input connector, the device being able to be connected as well in Jack 6.35mm as in XLR.

The LA90 offers a whole new level of performance, revealing incredible accuracy and clarity of reproduction, with linear response and extremely low noise.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

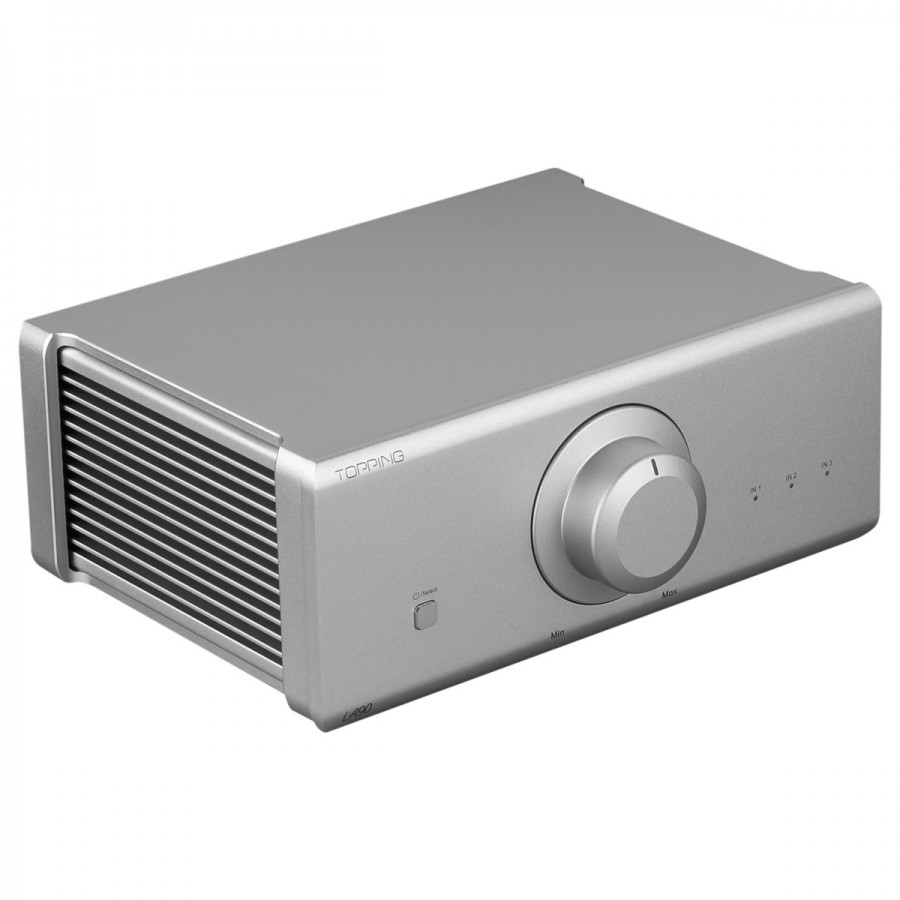

A robust and massive chassis

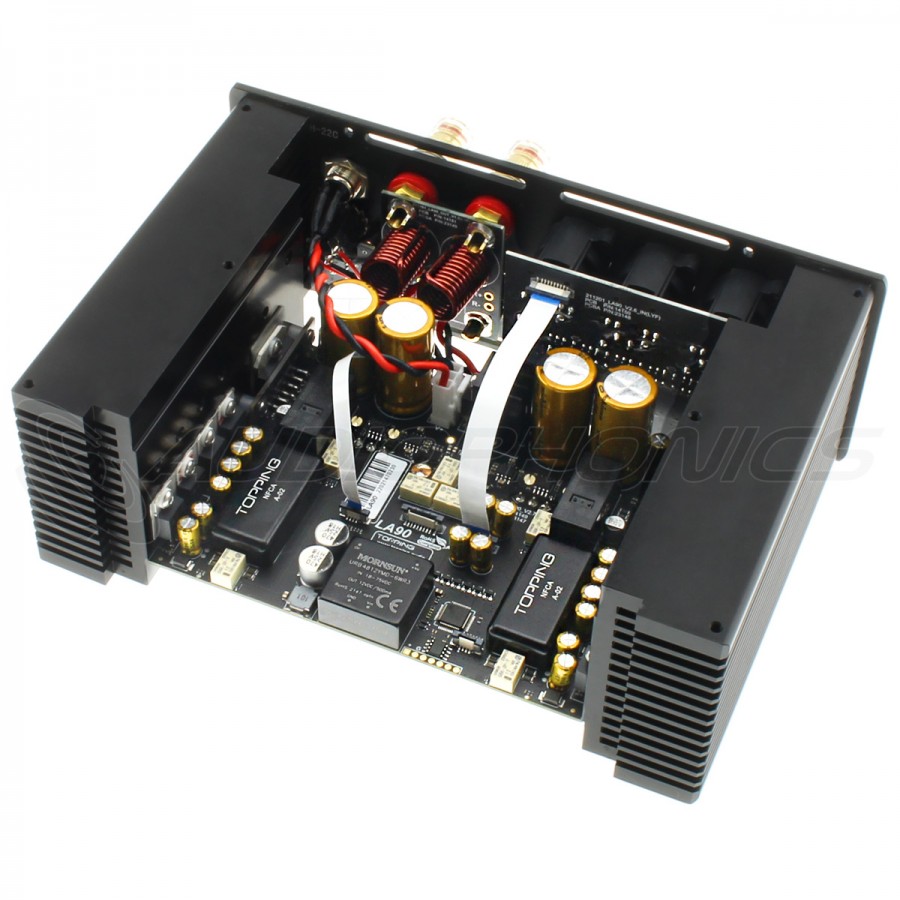

The LA90 is clad in a precision CNC machined aluminum chassis. This enclosure gives the amplifier a modern design while effectively protecting the components of the unit. The sides of the LA90 are equipped with large heat sinks, which effectively dissipate the heat emitted by the internal electronics.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

High power & Low distortion

The extremely low THD+N of the LA90 is measured at only 0.00007% under 8Ω 10W and 0.00008% under 4Ω 20W. These performances allow it in fact an accurate reproduction of the source signal.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

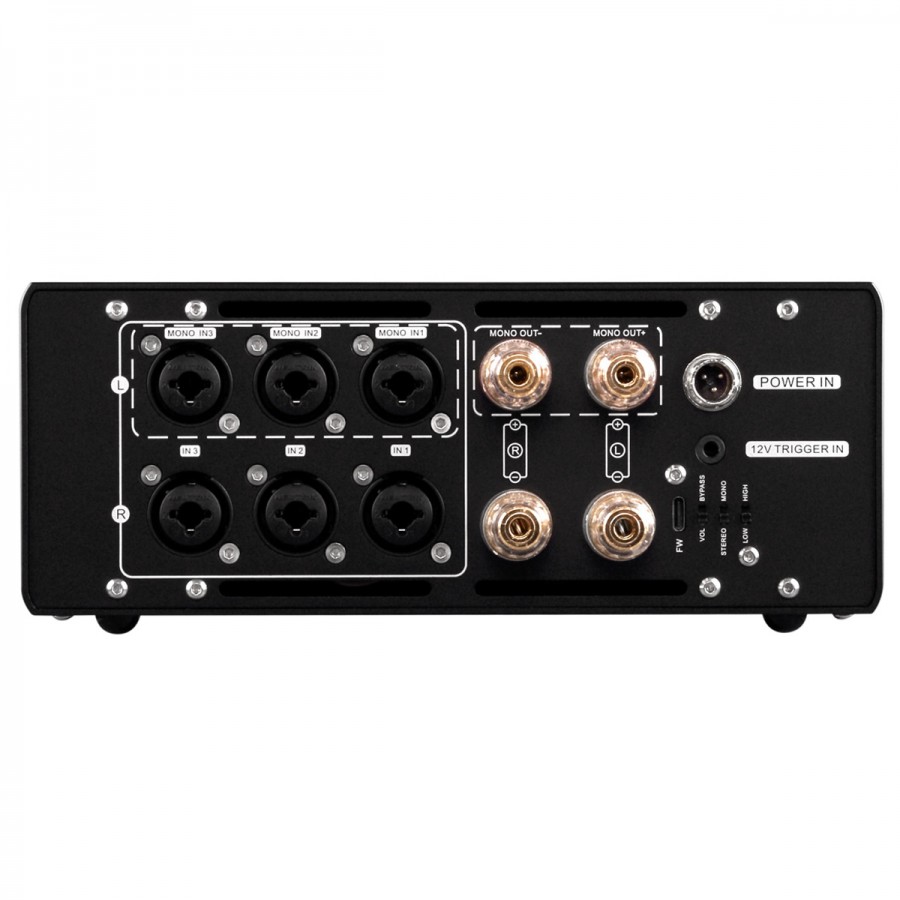

Balanced inputs

The LA90 provides three balanced inputs. These have a combined format, allowing the use of both XLR and 6.35mm TRS cables. In addition, three connectors allow the device to be used in mono mode.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent
Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

Two gain levels

In order to adapt to the vast majority of audio systems, including the most demanding, the LA90 offers an adjustable gain at two levels. The first, Low Gain, offers a gain of +6.7dB, while the second, High Gain, provides a gain of +19dB.

Mono & Stereo

The Topping LA90 can be configured and wired to operate in either stereo or mono mode, with the combination of two LA90s then providing higher power. When used in mono mode, the minimum impedance is 8Ω.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

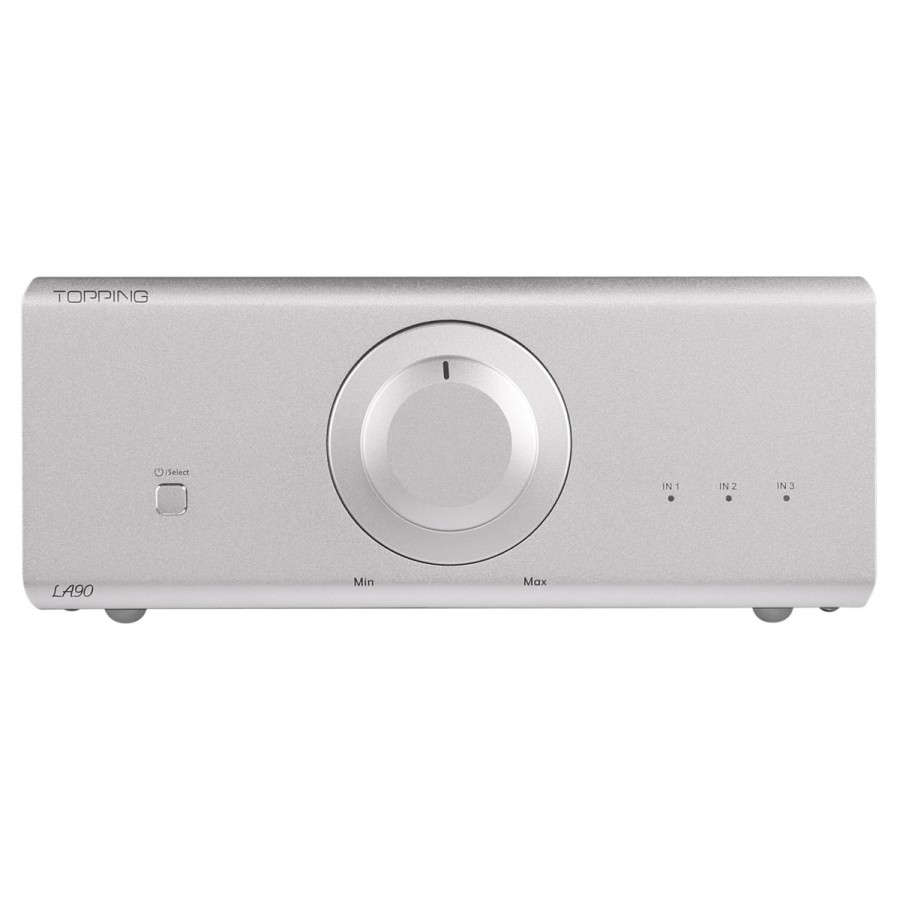

Volume control

The volume of the LA90 can be adjusted with the large knob on the front panel. It is also possible to bypass the volume control of the LA90 in order to associate it with a HiFi preamplifier. The latter is particularly useful to synchronize the volume of two LA90s when used in mono mode.

Topping LA90 Amplificateur 2x90W 4Ω / 1x180W 8Ω Argent

Technical characteristics

Specifications
Product typeAmplifier
Inputs3x Combined Jack 6.35mm TRS / XLR
OutputsSpeaker terminals
Measurements
ParameterStereoMono
THD+N @ 1kHz (90kBw)< 0.00009% @ 4Ω 5W< 0.0001% @ 8Ω 5W
< 0.00009% @ 8Ω 5W
THD+N @ No-Weighting (90kBw)< 0.0017% @ 4Ω 5W< 0.0012% @ 8Ω 5W
< 0.0009% @ 8Ω 5W
SNR @ A-Weighting140dB142dB
Dynamic range @ A-Weighting140dB142dB
Frequency response20Hz-40kHz (±0.2dB)20Hz-40kHz (±0.2dB)
10Hz-100kHz (±1dB)10Hz-100kHz (±1dB)
Output level51Vpp @ 4Ω98Vpp @ 8Ω
58Vpp @ 4Ω
Noise @ A-Weighting< 2µVrms @ G=L< 2.8µVrms @ G=L
< 3.5µVrms @ G=H< 5µVrms @ G=H
Crosstalk @ 1kHz-138dB-
Input sensitivity6.9Vrms @ G=L6.9Vrms @ G=L
2.2Vrms @ G=H2.2Vrms @ G=H
Gain9.5dB @ G=L15.5dB @ G=L
19.2dB @ G=H25.2dB @ G=H
Channel balance0.2dB-
Output impedance< 3mΩ< 5mΩ
Output power2x 110W @ 4Ω THD+N < 10%1x 220W @ 8Ω THD+N < 10%
2x90W @ 4Ω THD+N < 1%
2x 63W @ 8Ω THD+N < 10%1x 180W @ 8Ω THD+N < 1%
2x 50W @ 8Ω THD+N < 1%
Load impedance≥ 4Ω≥ 8Ω
General
Dimensions220 x 205 x 90mm
ColorSilver
Package1x Topping LA90
1x Power supply 64V 4A
1x Speaker terminals jumper cable
